C-RTK 9P High Precision Positioning Module

Name: C-RTK 9P High Precision Positioning Module
SKU: S16058694503538378735252632
Availability: InStock

€688.00

174 متوفر في المخزون

رمز المنتج: S16058694503538378735252632 التصنيفات: جميع المنتجات, Flight Controller & GPS & RTK, UAV Accessories

Centimeter-level positioning

Cm-level positioning, meet the demand of industry and high pre-cision positioning RTK static positioning accuracy up to 1 cm, un-manned aerial vehicle (uav) measured dynamic accuracy of about 6 cm.

Better GPS

Can be used as a GPS when used alone, and better than other GPS positioning

Double-ended switching

Type-C interface is adopted on both the mobile end and the ground end, and both ends are freely switched.

10s switch RTK mode

With the highest RTK refresh rate, up to 20Hz, faster reduction of positioning error Less than 10s convergence time, can switch RTK mode instantly within 10s

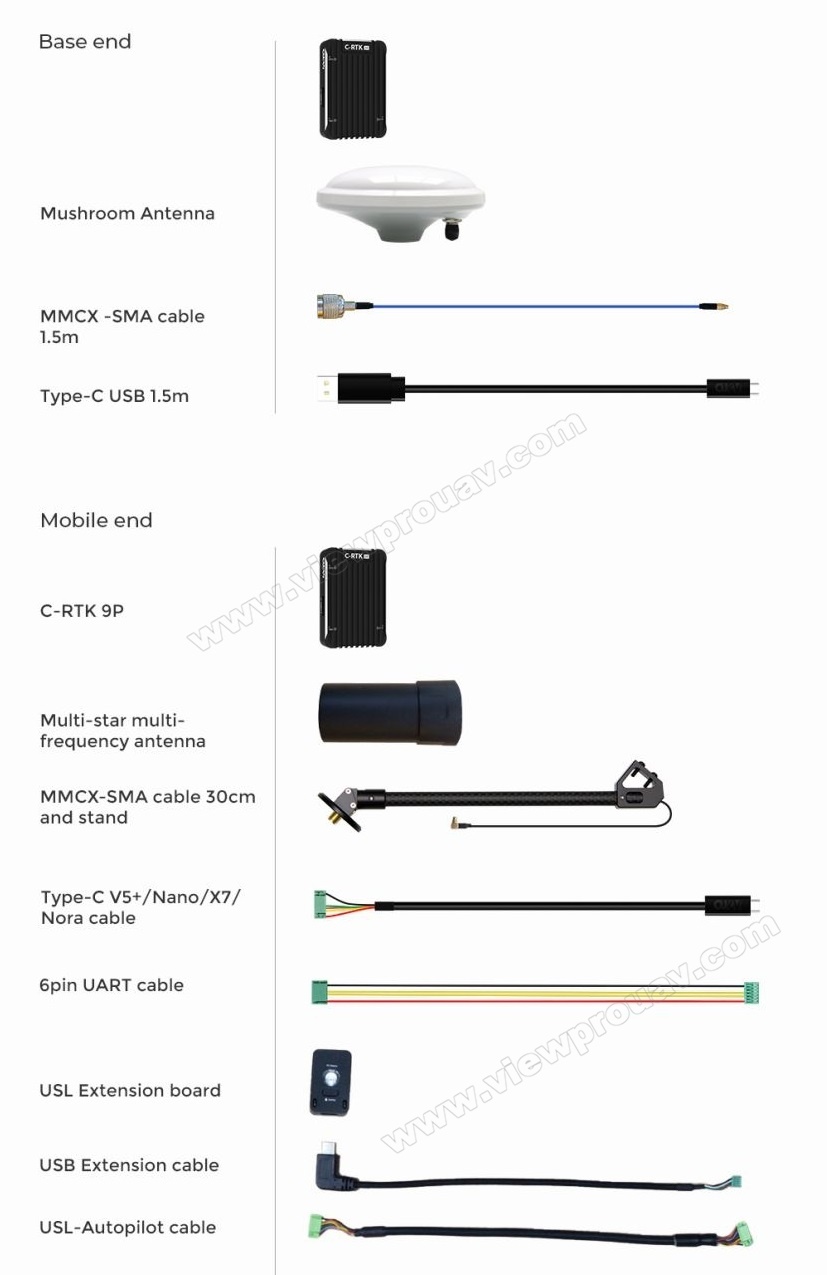

C-RTK 9P V5+/Nano/X7/Nora USL

Version Packing list

C-RTK 9P Pixhack Version Packing list

C-RTK SP Pixhawk Version Packing list

C-RTK 9P V5+/Nano/X7/Nora Version Packing list

Prd
Satellite receiver type	184 channel Ubox F9P
Navigation satellite system	Beidou, Galileo, GLONASS, GPS / QZSS
Satellite frequency band	GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C
Navigation refresh rate	RTK up to 20 Hz
Positioning accuracy	RTK 0.01M+1ppm CEP
Convergence time	RTK is less than 10s
Capture satellite	Cold start 24s
	Auxiliary start 2s
	Capture again 1s
Sensitivity	Tracking and navigation –167 dBm
	Cold start –148 dBm
	Hot Start –157 dBm
	Reacquisition –160 dBm
Anti-jamming	Active CW detection and removal Onboard band pass flter
Anti-spoofng	Advanced anti-spoofng algorithms
Interfaces
Serial interfaces	UART x2
USB	1
Antenna	Multi-satellite and multi-frequency antenna
Timepulse	Confgurable: 0.25 Hz to 10 MHz
Protocols	NMEA、UBX binary、RTCM version 3.3
working environment
Voltage	5V
Temperature	–20 °C to +85 °C
Dimensions and weight
Size	31.5mmX48mmX12mm
Weight	21g
