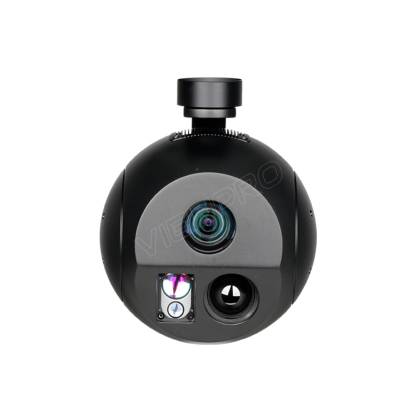

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera

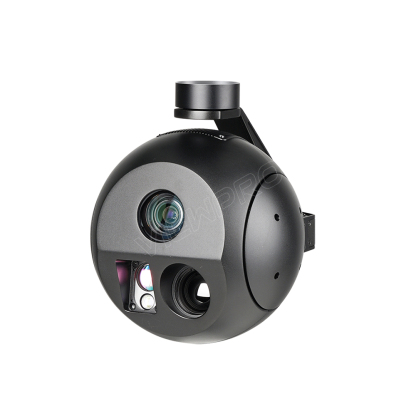

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera – Bild 2

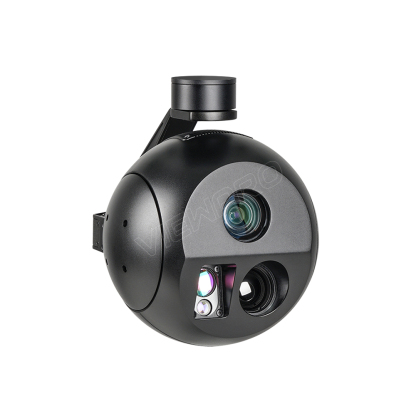

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera – Bild 3

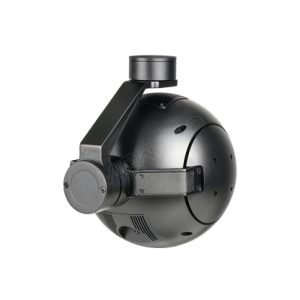

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera – Bild 4

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera – Bild 5

Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera – Bild 6

Q20KTIRM 4K 20X optischer Zoom EO/lR 3km Laser-Entfernungsmesser Dreifachsensoren Objektverfolgung Gimbal Kamera

Name: Q20KTIRM 4K 20X Optical Zoom EO/lR 3km Laser Rangefinder Triple Sensors Object Tracking Gimbal Camera
SKU: S16065475394059630170120520
Availability: InStock

€14,999.00

217 vorrätig

Artikelnummer: S16065475394059630170120520 Kategorien: Alle Produkte, Kardanische Aufhängung & Nutzlast, Inspektion und Dreharbeiten, Kartierung und Vermessung, Paketlieferung

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S (14.8V~25.2V)
Output voltage	5V (connect with PWM)
Dynamic current	800~1500mA @16V
Power consumption	Average 12.8W, Max 24W
Working environment temp.	-20℃ ~ +50℃
Output (optional)	Micro HDMI(1080P 30fps) / IP (RTSP/UDP 720p/1080p/4K 25fps/30fps H264/H265)
Local-storage	SD card (Up to 512G,class 10, FAT32 format)
Picture storage format in TF card	JPG (4K:3840*2160)
Video storage format in TF card	1.MP4 (4K:38402160) Note:Output 720P/1080P; 2.MP4 (1080P:19201080) Note:Output 4K; Video output and video storage cannot be 4K at the same time
Control method	PWM / SBUS / TTL / TCP / UDP
Gimbal Spec
Mechanical Range	Pitch/Tilt: -60°～123°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√

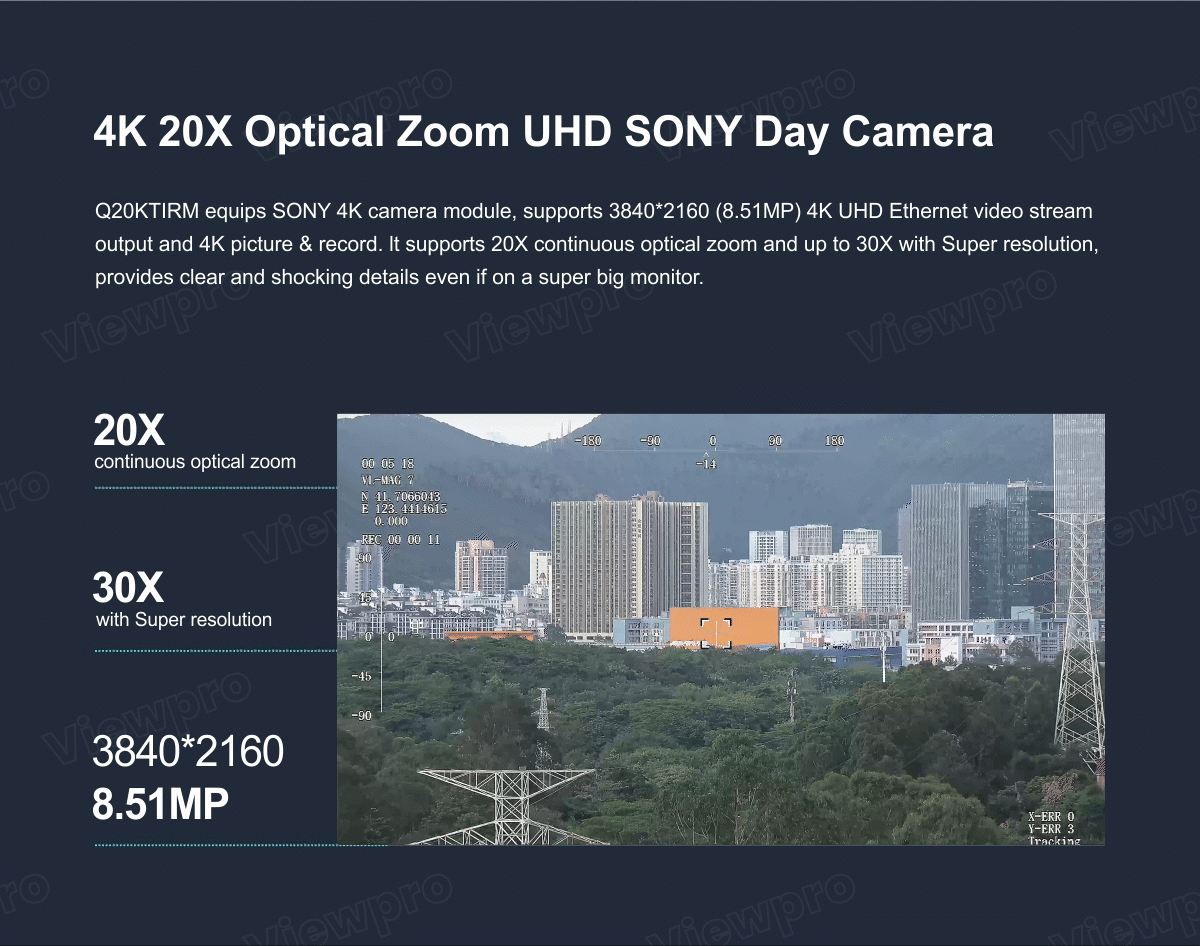

EO Camera Spec
Imager Sensor	SONY 1/2.5″ “Exmor R” CMOS
Total pixel	8.51MP
Optical zoom	20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution
Digital zoom	12x (240x with optical zoom)
Min. working distance	80 mm (Wide end), 800 mm (Tele end)
Angle of view ( H,V )	H: 70.2°(Wide end) ~ 4.1°(Tele end)
V: 43.1°(Wide end) ~ 2.3°(Tele end)
S/N ratio	50dB
Recommended illumination	100 to 100000 lux
Min illumination	1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on)
Back light compensation	On/Off
Gain	Auto
White balance	Auto/Manual
Electronic shutter speed	1/1 to 1/10000 sec. (22 steps)
Noise reduction	On/Off (level 5 to 1/ Off, 6 steps)
Defog mode	On/Off (Low, Mid, High)
Focus	Auto/Manual/One-time automatic focus
Focus speed	2s
Image rotation	180°, Horizontal/Vertical mirror image
IR Thermal Imager Spec
Focus Length	24mm
Horizontal FOV	18.2°
Vertical FOV	14.6°
Diagonal FOV	23.2°
Detective Distance (Man: 1.8×0.5m)	1000 meters
Recognize Distance (Man: 1.8×0.5m)	250 meters
Verified Distance (Man: 1.8×0.5m)	125 meters
Detective Distance (Car: 4.2×1.8m)	3067 meters
Recognize Distance (Car: 4.2×1.8m)	767 meters
Verified Distance (Car: 4.2×1.8m)	383 meters
Working mode	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel pitch	12μm
Focusing method	Athermal prime lens
Emissivity correction	0.01~1
NETD	≤50mK (@25℃)
MRTD	≤550mK (@characteristic frequency)
Image enhancement	Auto adjust image brightness and contrast ratio
Color palette	white hot, black hot, pseudo color
Auto Non-uniform correction	Yes (no shutter)
Digital zoom	1x ~ 4x
Thermometry type	Not support
IR / EO Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel
IR Laser Rangefinder
Range	for car ≥ 3000m; for human ≥ 2000m
Minimum range	15m
Frequency	1~10Hz
Accuracy	±1m
Light Beam	1535±5nm pulse laser
Divergent Angle	~0.6 mrad
Location Resolving	Latitude and longitude of target
Ranefinder	Measure the distance between the object at the center of screen and the laser rangefinder
Features
OSD	Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude or target ranging point GPS and altitude (choose one of them, target point GPS and altitude as default), date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	SMB read pictures or videos / HTTP read pictures or videos
KLV (UDP) (optional)	Card recording or Viewlink video playback

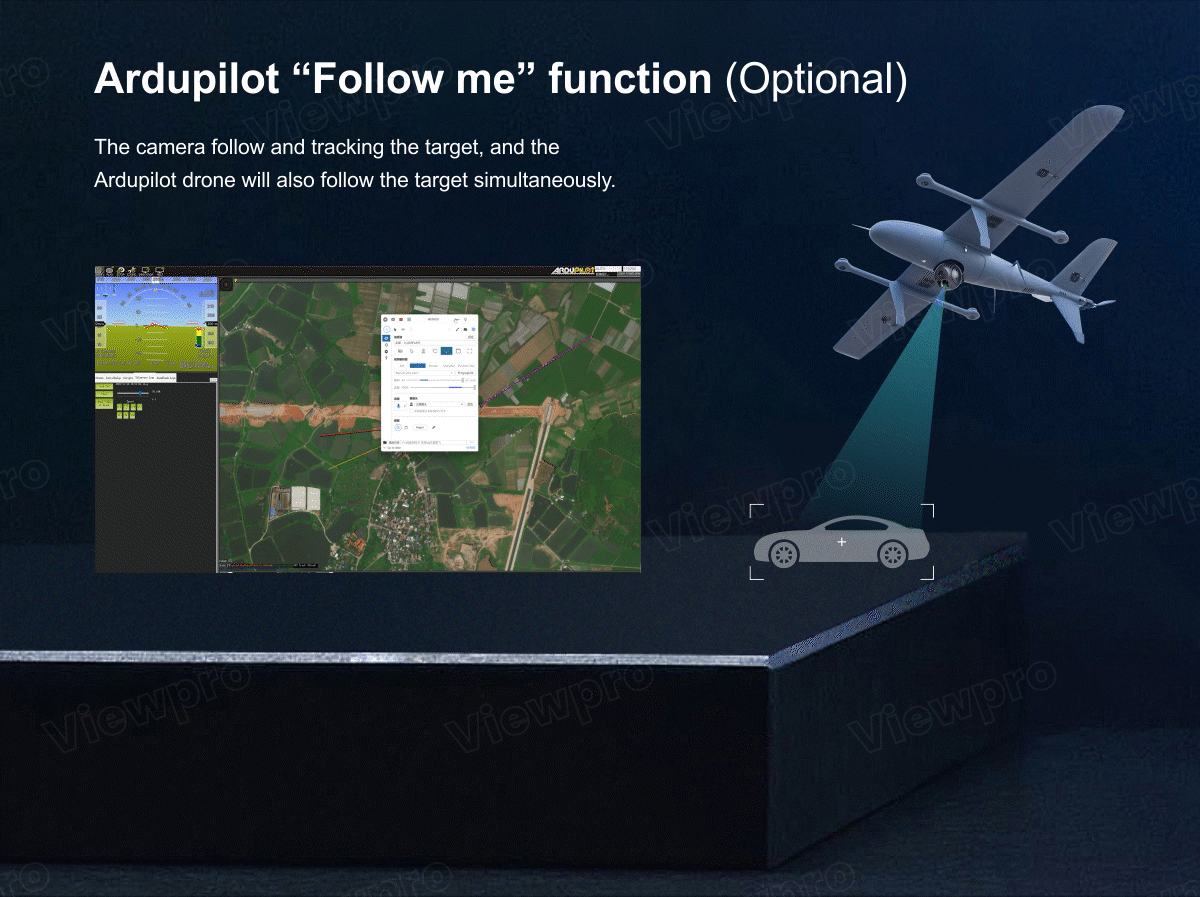

ArduPilot / PX4	Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature
Video switching	EO+IR /IR+EO /EO /IR
Packing Information

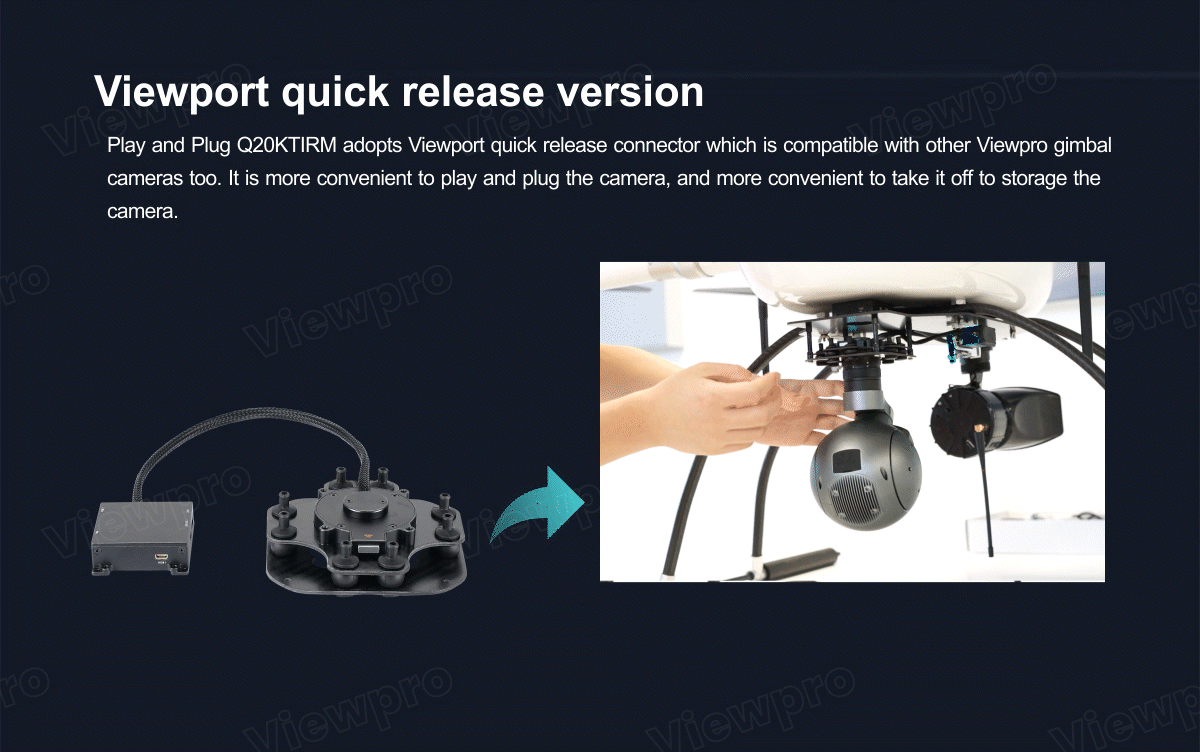

N.W.	1300±10g(Viewport version with Viewport)
Product meas.	156.6132200.6mm /156.6132206.3mm(Viewport version with Viewport)
Zubehör	1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W.	3027g
Package meas.	350300250mm
