15KM 30KM 50KM Ultra Larga DistanciaEnlace de Imagen Transmisión de Señal HD

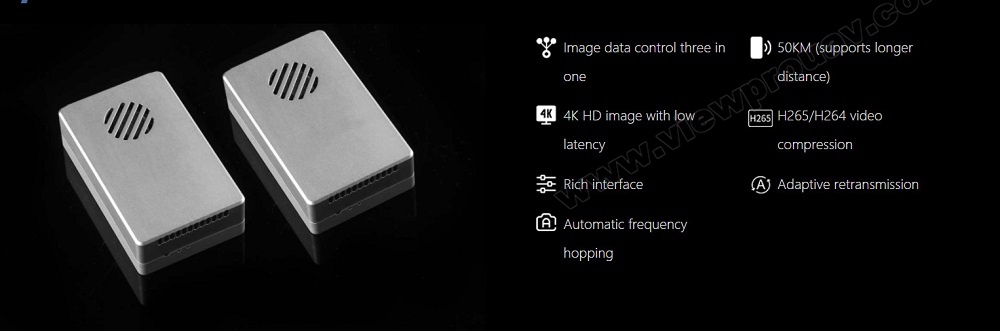

*Image, data and control three in one: one-way image transmission channel; two-way digital transmission channel; one-way remote control channel

*50KM ultra-long-distance (please check the high-power 2W module for further distance requirements) wireless transmission: extreme connection efficienc brings ultra-long-distance transmission, ground-to-air actual measurement,reaching 20km beyond the line-of-sight interconnection; end-to-end equipment is not controlled by wire Restraintmaintain a high degree of freedom and mobility in space and distance

*4K high-definition images and low latency. ultra-high bandwidth and bit stream support can easily cope with 4K resolution video data streams. 200ms screen-to-screen ow delay and delay jtter sensitive control is better, meeting the end-to-end real-time requirements of video data

*H265/H264 video compression. AES encryption

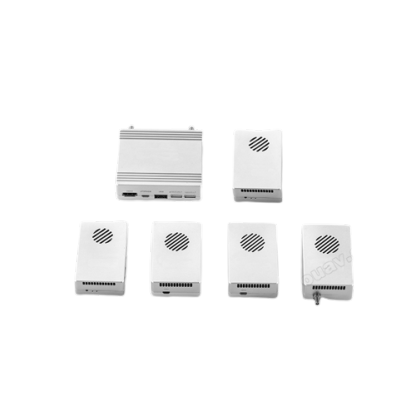

*HDMI+Ethernet – HDM; HDMI+AV – HDMI; SDI+AV – HDMI optional

*The adaptive retransmission mechanism implemented at the bottom layer is not only much better than the application layer retransmission mechanism in terms of efficiency and delay, but also greatly improves the performance and user experience of the link in an interference environment.

*The module continuously detects the interference status of all available channels in real time, and when the current working hanme is nterfered, it automaticaly selects and switches to the channel with the lowest interference to ensure continuous and reliable communication.
