drone controller SIYI DK32 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 10KM DATALINK for DIY Agricultural drones

drone controller SIYI DK32 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 10KM DATALINK for DIY Agricultural drones

Name: drone controller SIYI DK32 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 10KM DATALINK for DIY Agricultural drones
SKU: 5487FB8/10-85
Availability: InStock

€290.00

191 disponibles

SKU: 5487FB8/10-85 Categoría: Transmisor y receptor Etiquetas: Accesorios, Agriculture Drone, Transmisor y receptor, Transmitter and Receiver

drone controller SIYI DK32 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 10KM DATALINK for DIY Agricultural drones

drone controller is an electronic device that uses radio signals to transmit commands wirelessly via a set radio frequency over to the Radio Receiver, which is connected to an aircraft or multirotor being remotely controlled. In other words, it’s the device that translates pilot’s commands into movement of the multirotor.

In some radios there is an option to connect an external transmitter module. This makes it possible to use a different frequency (for instance, 900MHz in a 2.4GHz radio) or a different receiver from another brand/protocol (Crossfire CRSF module with Crossfire V2 Micro Receiver in FrSky Taranis).

Specifications:

Features

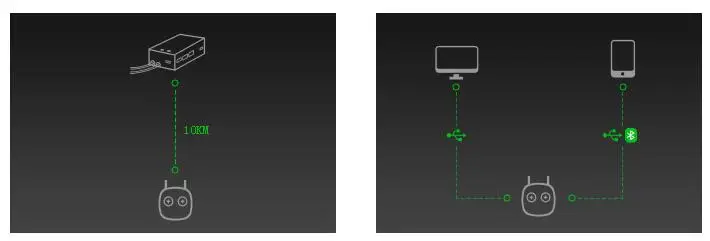

1, in an open environment, DK32 data transmission distance can reach 10KM, can perfectly meet the requirements of users over-the-horizon flight.

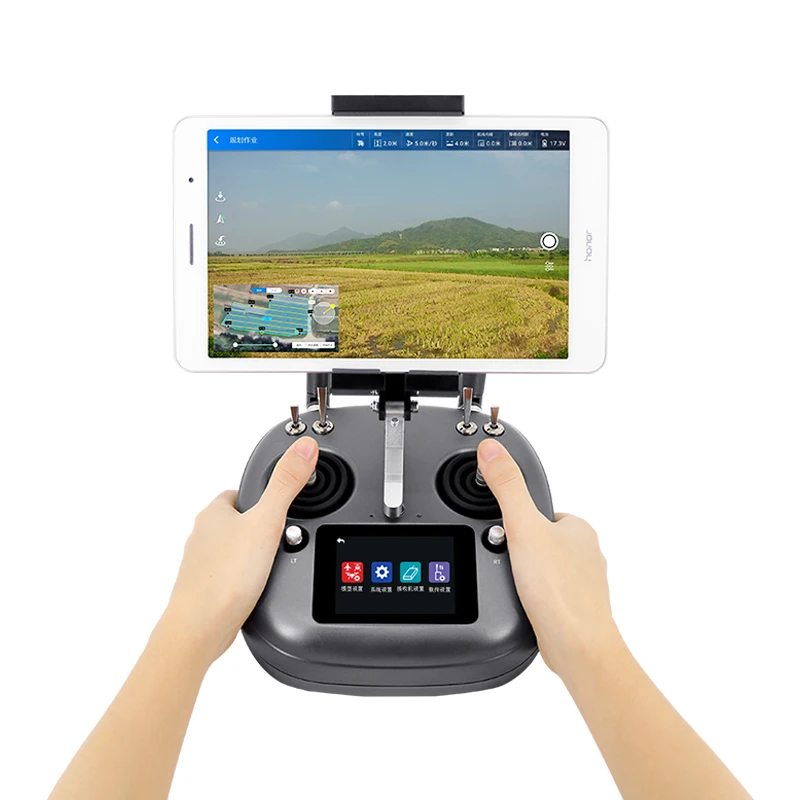

2, The transmitter of DK32 remote control supports USB connection PC, USB and Bluetooth connection smartphone and Pad. (Bluetooth is optional, standard configuration does not include)

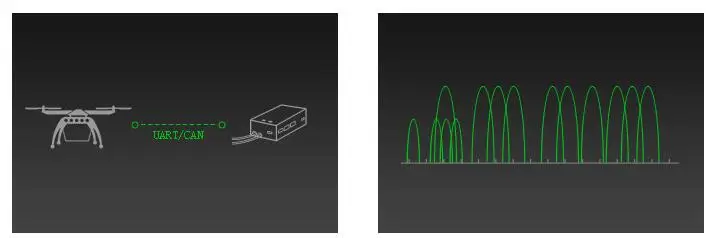

3, The receiver of DK32 remote control supports UART, CAN connection flight control. (CAN is optional, standard configuration is not included)

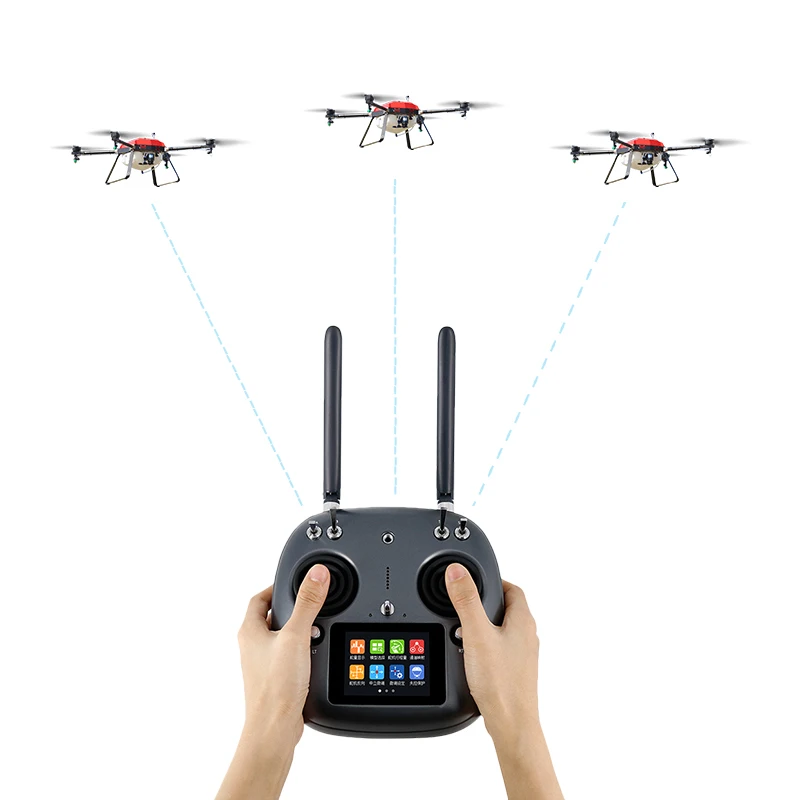

4, using the newly developed two-way 2.4G spread spectrum technology SHTT, the effective maximum operating distance can reach 10KM (the distance is measured without interference in the outdoor open environment), the remote control and receiver unique code pairing, plus Fast frequency hopping technology to improve anti-interference ability, prevent interference with other remote controllers, support multiple remote controllers and work stably at the same time

5, full-featured 16-CH high-speed response mode, supports all models of fixed-wing, helicopter, glider, multirotor, RC car, RC ship.

6, vibration prompts, Chinese and English menus and voice broadcasts.

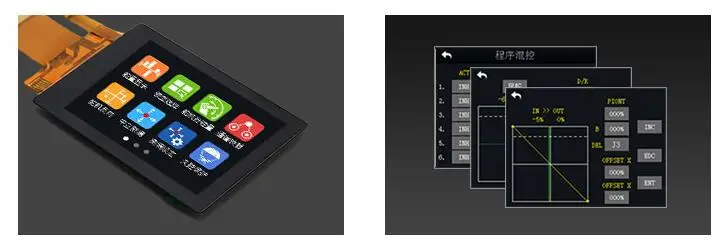

7, wide viewing angle highlights the color LCD touch screen to ensure that the outdoor flight is clearly visible. It adopts a mobile terminal-level capacitive touch screen and has a turntable button to assist operation, making the adjustment quicker and more convenient. The remote control interface is the latest development of a customized new GUI system that provides a more user-friendly user experience for display and touch input.

8, powerful features to meet a variety of complex modules or robot models

The default 64 sets of model data are stored and can be expanded indefinitely.

Powerful programmable mixing, support for a variety of custom common mixing and curve mixing settings.

Adjustable ratio function, throttle curve, pitch curve editing, complex curve adjustment is easy

Through the data copy function, it is convenient for the model friend to exchange model settings and share convenience.

Coach function, veteran with novice, comes with various protection functions, the trainer switches control

Channel mapping, out of control protection

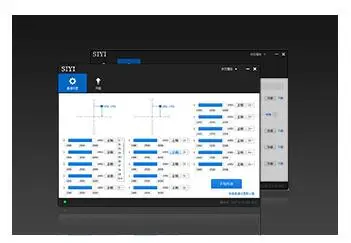

9, PC tuning upgrade software, used for tuning and upgrade functions, better than the LCD tuning experience, enjoy continuous feature upgrade services.

Technical Parameters:

Overall performance

Maximum communication distance (no interference, no blocking): 15 km

Operating frequency: 2.400-2.483 GHz

Number of channels: 26 physical channels, 16 receiver output channels

Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter

Flight control supported by digital transmission:

TopXgun T1-A

Woozoom THEONE – A

EFY Finix200

JIYI K3A

BOYING PALADIN V2
