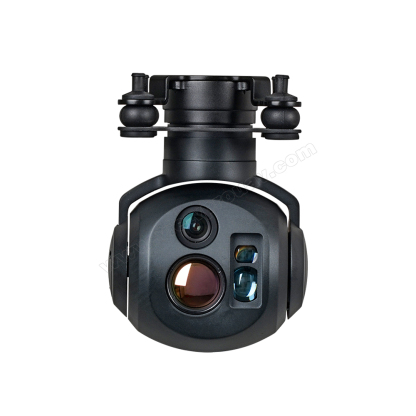

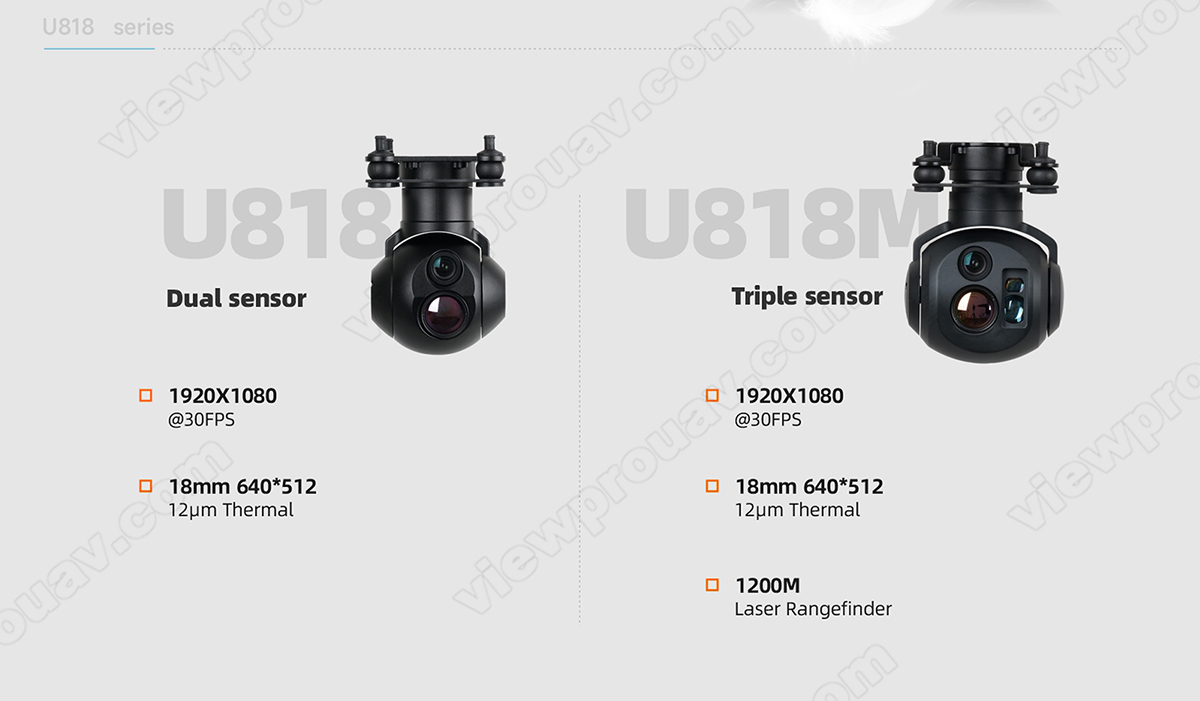

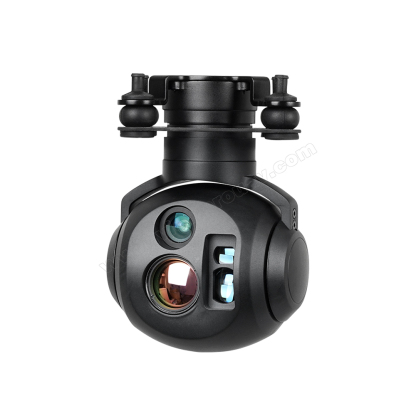

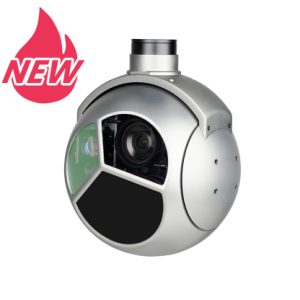

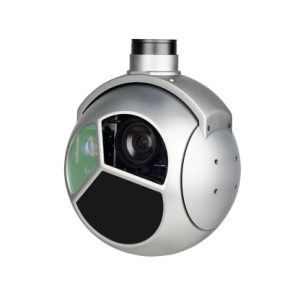

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance - Imagen 2

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance - Imagen 3

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance - Imagen 4

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance - Imagen 5

Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance - Imagen 6

Hawkeye serie U818 Micro Prime Lens Cámara de seguimiento de doble sensor para la vigilancia

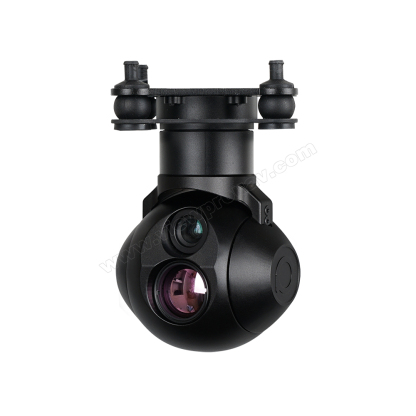

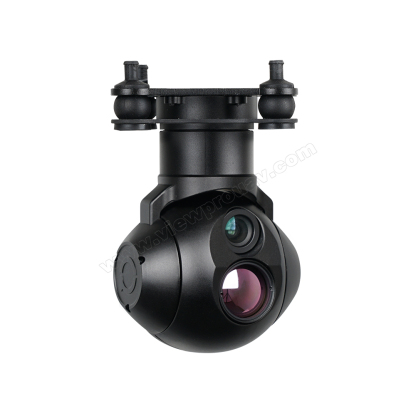

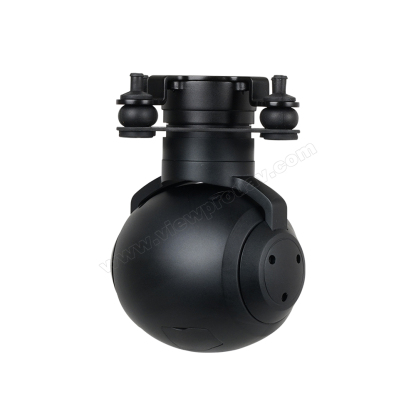

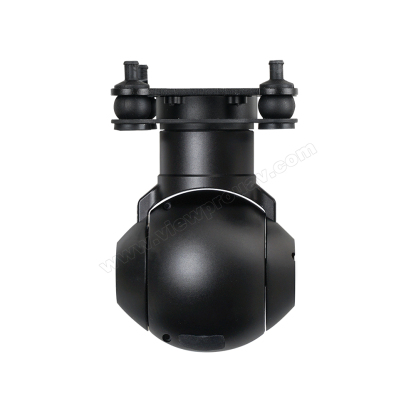

Name: Hawkeye U818 series Micro Prime Lens Dual Sensor Tracking Camera for Surveillance
SKU: S16058286587873053935542632
Availability: InStock

€0.00

172 disponibles

SKU: S16058286587873053935542632 Categorías: Todos los productos, Gimbals & Payload, Serie Hawkeye, Seguridad y primeros auxilios

Hardware Parameter U818
Working voltage	12V
Input voltage	3S ~ 6S(12V~25.2V)
Dynamic current	600~1200mA @ 12V
Power consumption	Average 7.2W, Max 14.5W
Working environment temp.	-20℃ ~ +50℃

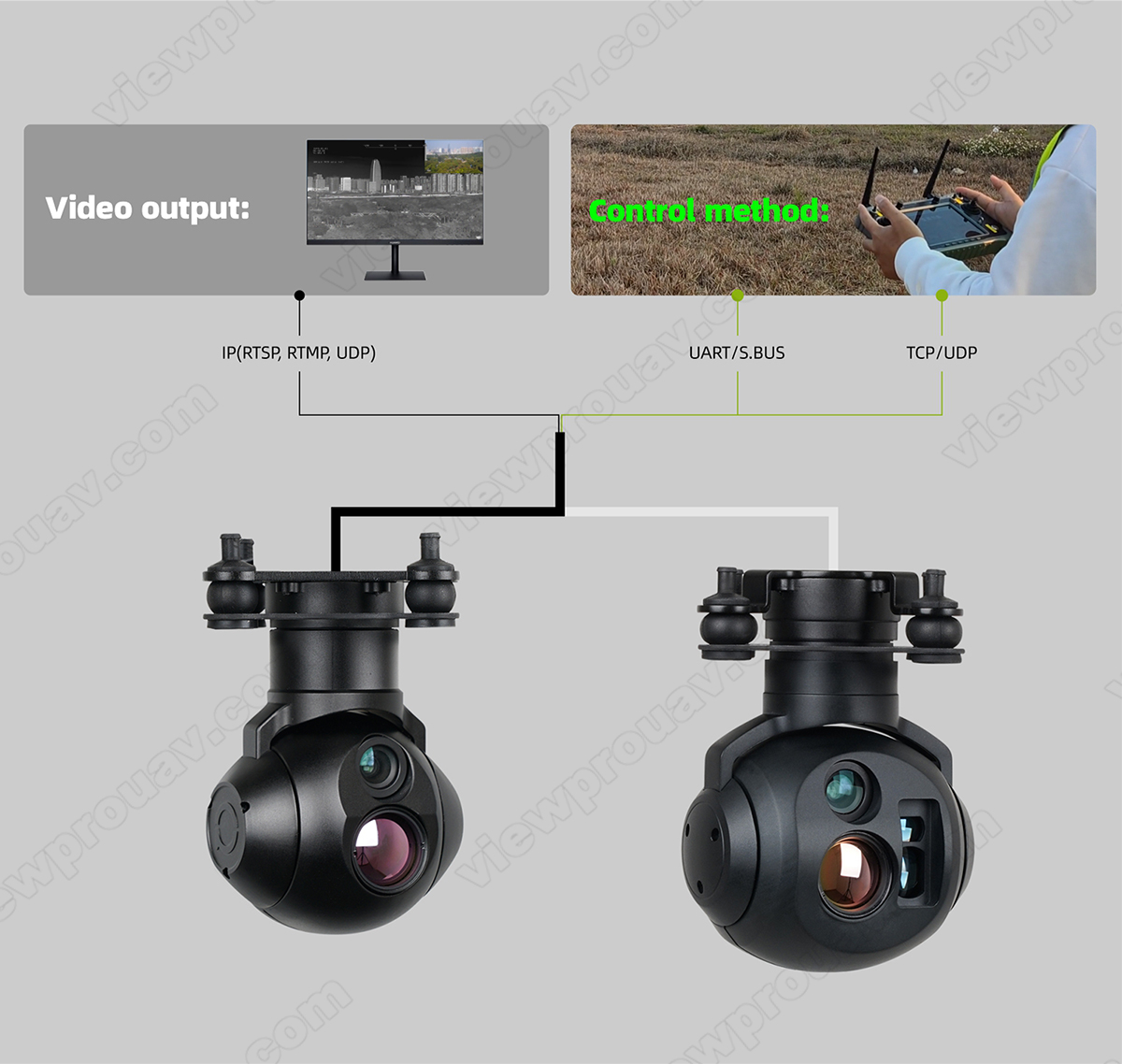

Output	IP (RTSP/UDP 720p/1080p 30fps H264/H265)
Local-storage	SD card (Up to 512G,class 10, FAT32 format)
Picture storage format in TF card	JPG(1920*1080)
Video storage format in TF card	MP4(1080P 30fps)

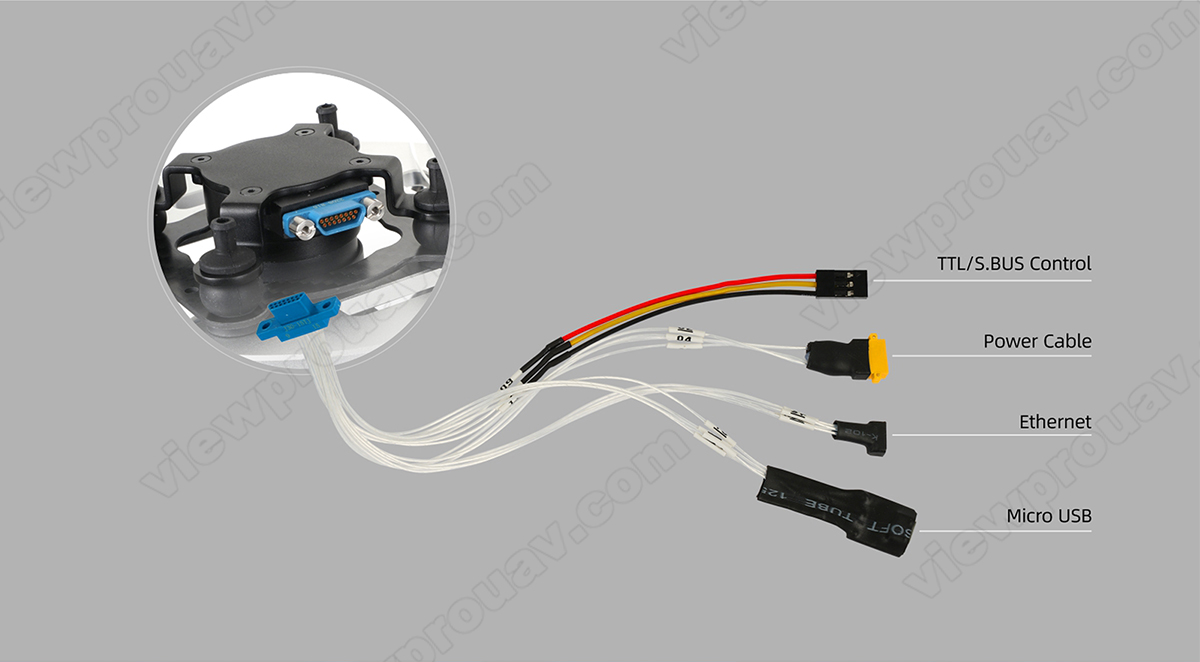

Control method	TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP

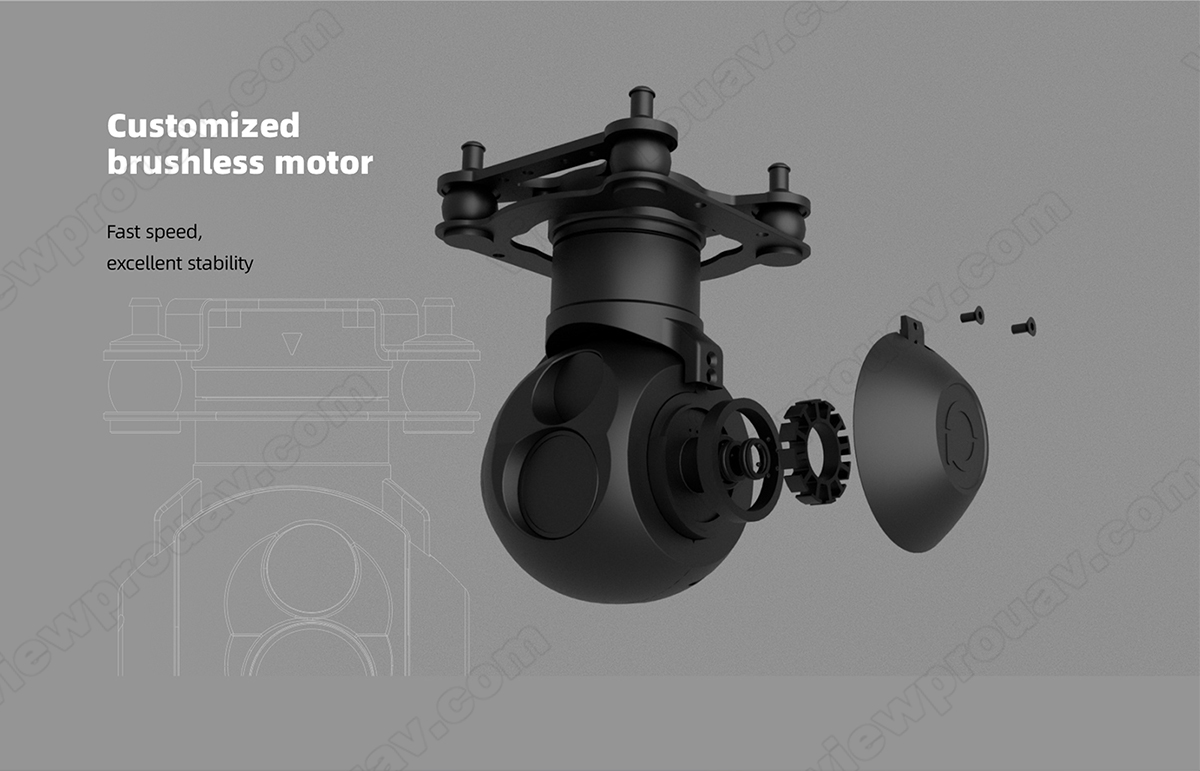

Gimbal Spec
Mechanical Range	Pitch/Tilt: -55°～130°, Roll: ±70°, Yaw/Pan: ±150° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～125°, Yaw/Pan: ±145° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√
EO Camera Spec
Imager Sensor	CMOS Sensor
Resolution	1920*1080
Focus Length	8mm
Angle of View	38.3°*22.1°
Detective Distance (Car: 4.2×1.8m)	1000m
Recognize Distance (Man: 1.8×0.5m)	400m
Digital zoom	1x ~ 8x
Defog	Yes

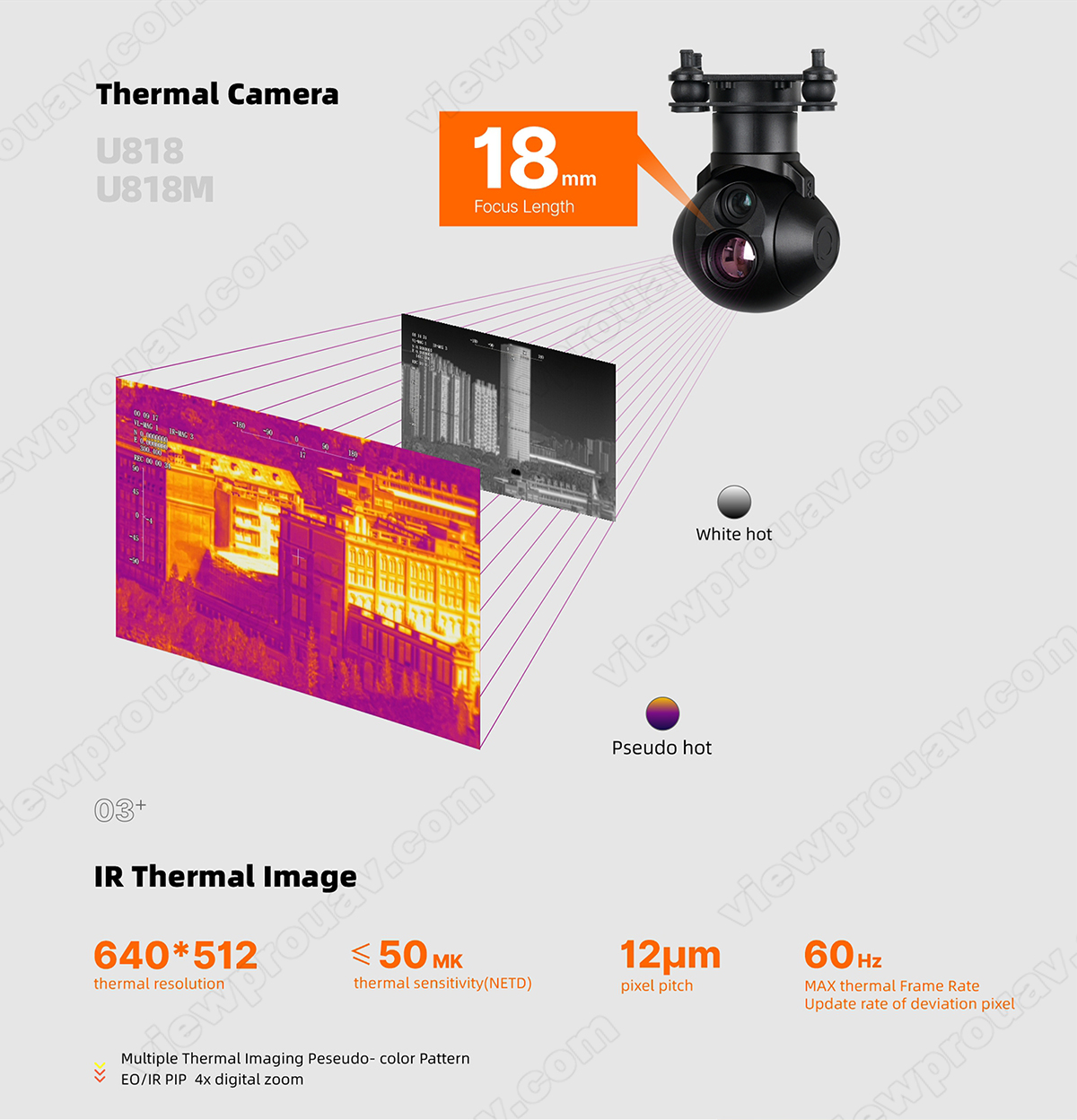

IR Thermal Imager Spec
Focus Length	18mm
Horizontal FOV	24°
Vertical FOV	18.1°
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel size	12μm
Focusing method	Athermal prime lens
NETD	≤50mK@F.0 @25℃
Color palette	White hot, black hote, pseudo color
Digital zoom	1x ~ 8x
Detective Distance (Car: 4.2×1.8m)	600m
Recognize Distance (Man: 1.8×0.5m)	250m
EO / IR Camera Object Tracking
Update rate of deviation pixel	60Hz
Minimum object contrast	5%
Minimum object size	16*16 pixel
Maximum object size	128*128 pixel
Tracking speed	＞48 pixel/frame
Object memory time	100 frames
Features
OSD	Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	HTTP read pictures or videos
KLV (UDP) (optional)	Card recording or Viewlink video playback

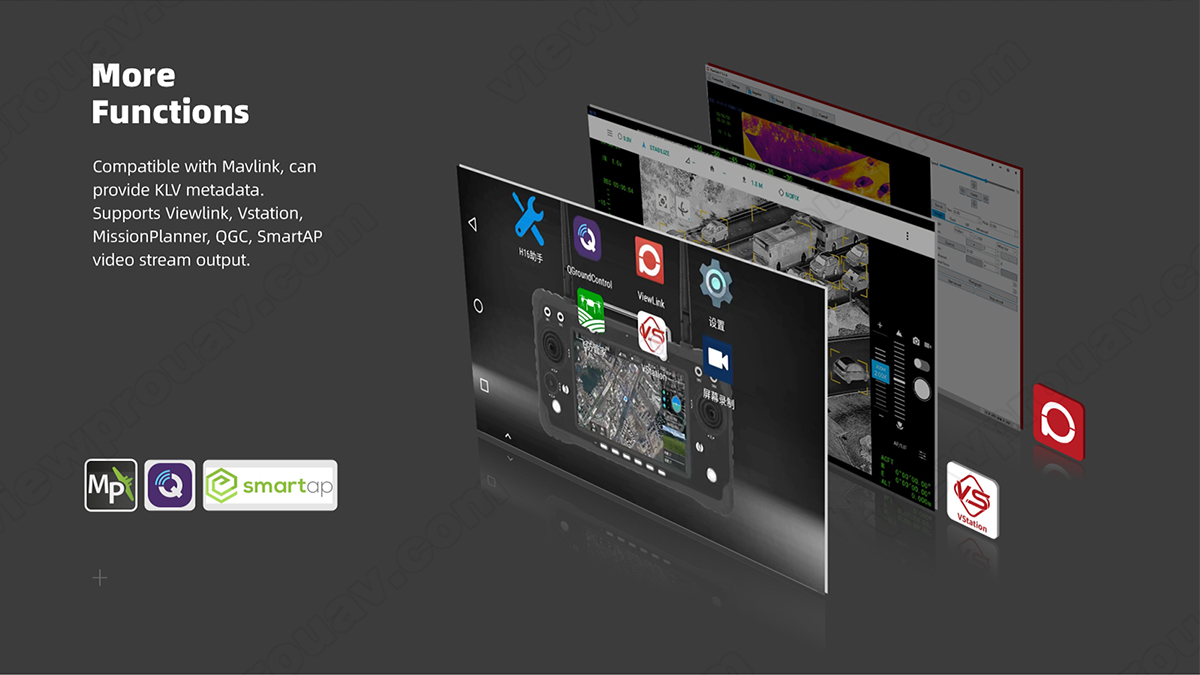

ArduPilot / PX4	Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature

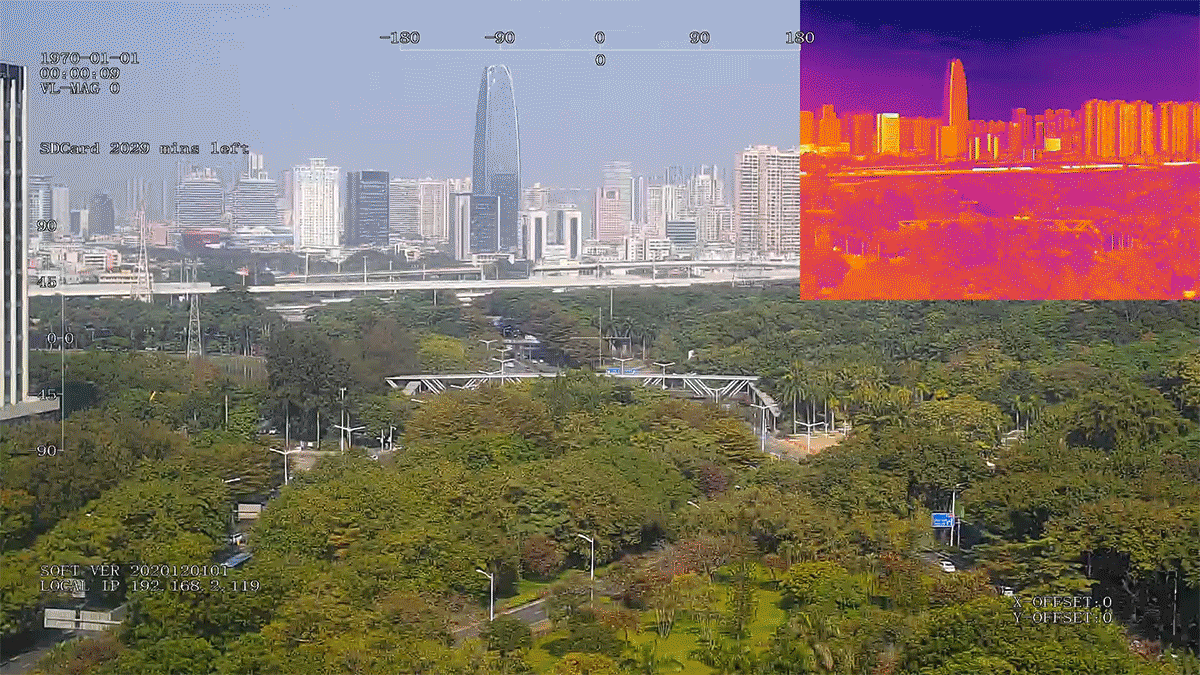

Video stitching	EO+IR /IR+EO /EO /IR
Dual video stream output	Not support(EO and IR two stream output)
Packing Information

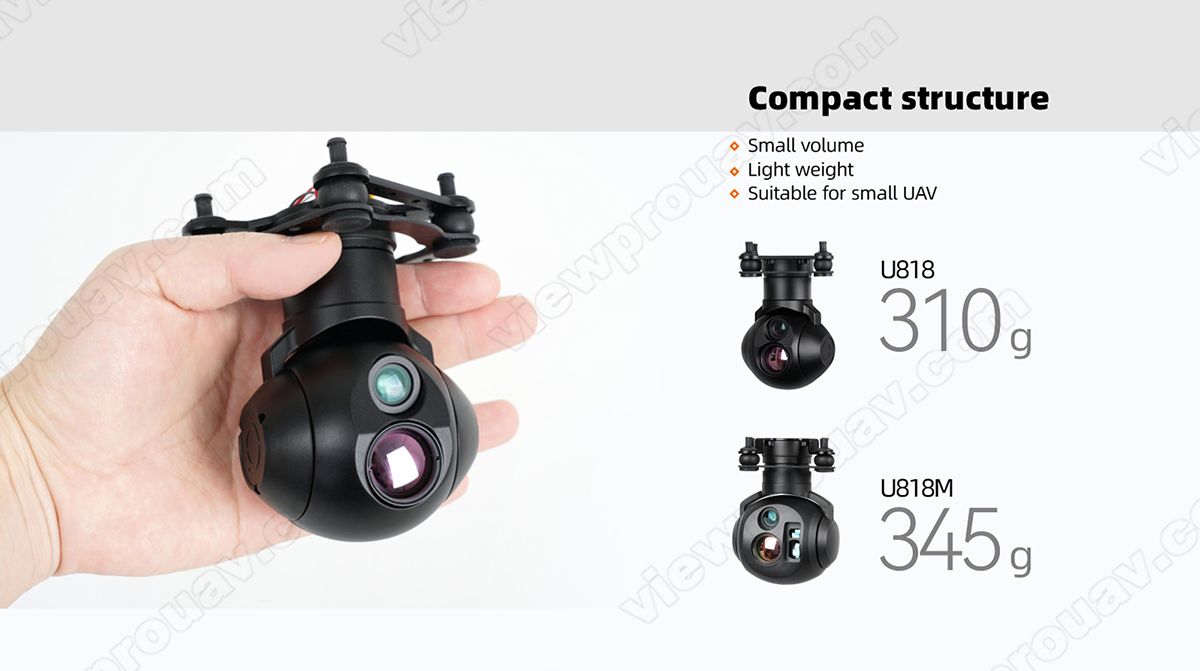

N.W.	310±10g (with damping system)

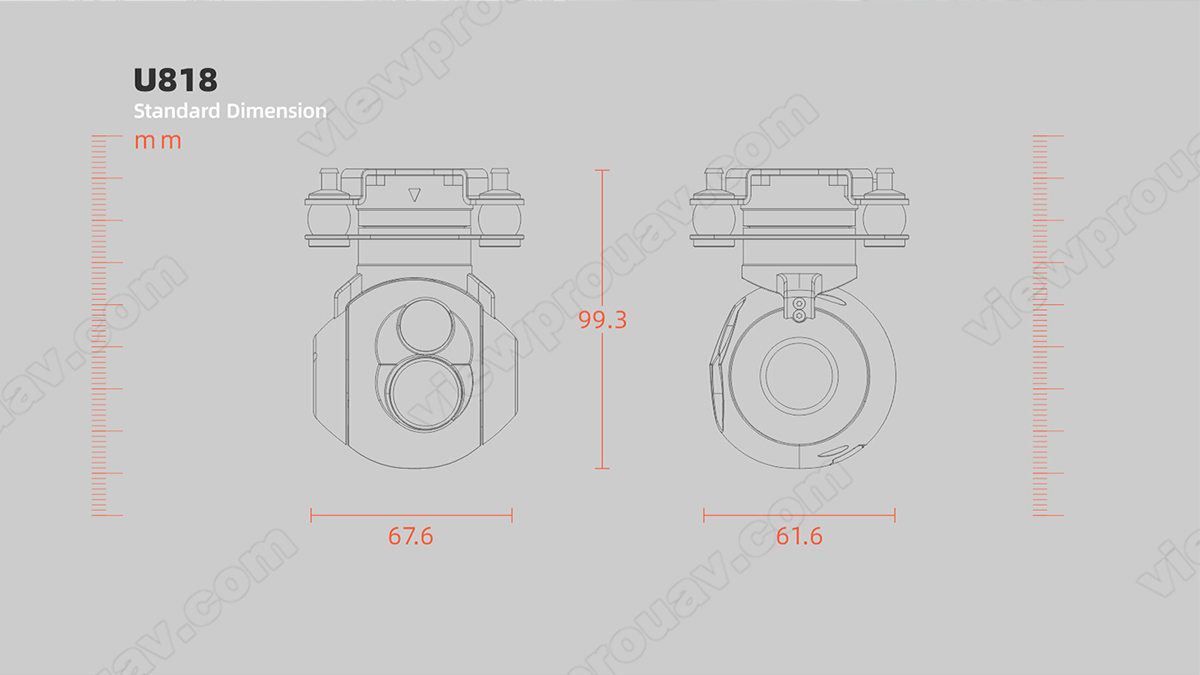

Product meas.	92.368.1112.9mm

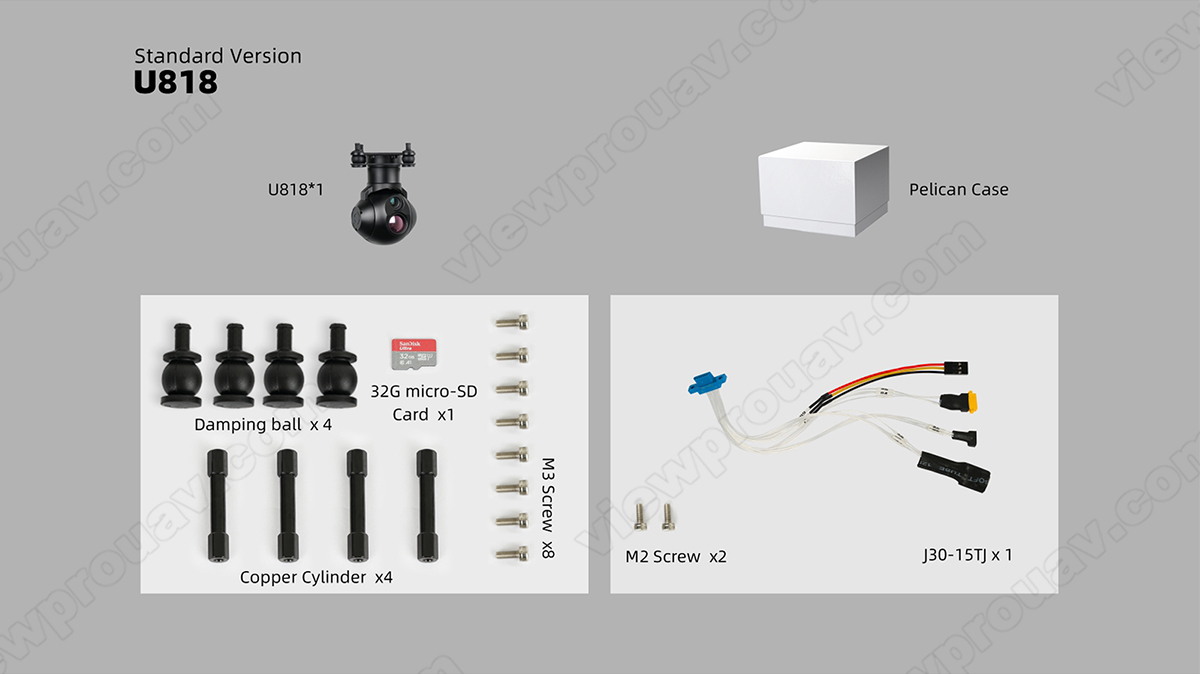

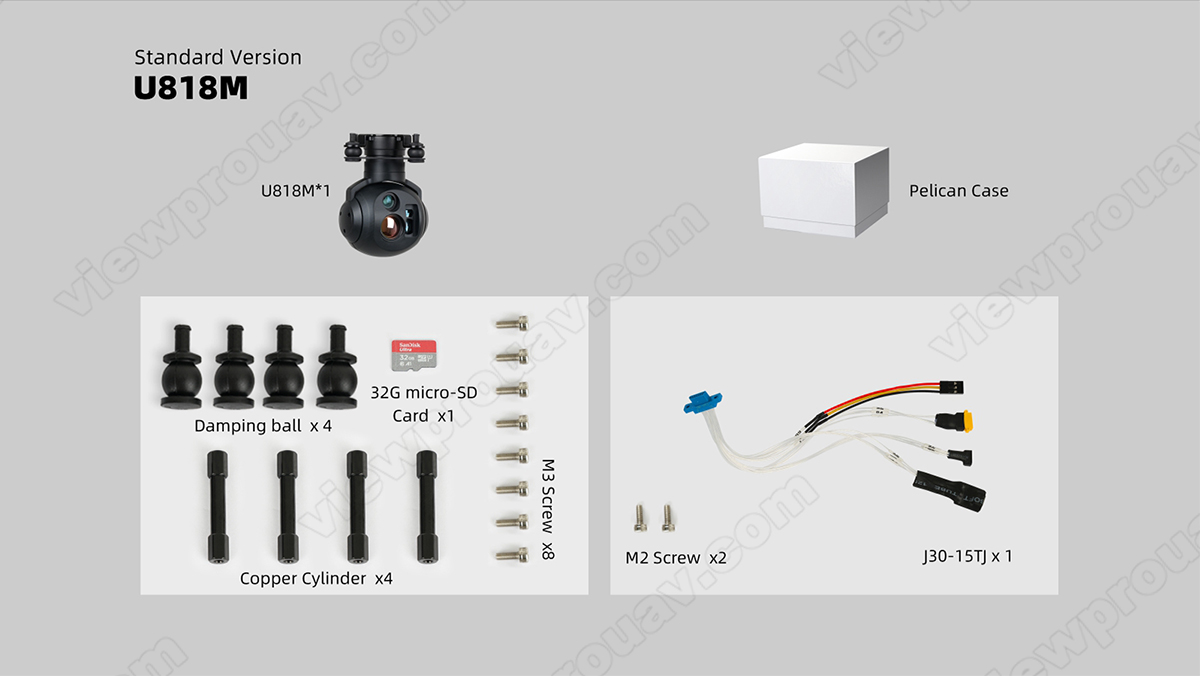

Accesorios	1pc gimbal camera device, screws, dampers, Connecting line, UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion
G.W.	720g
Package meas.	200200150mm
