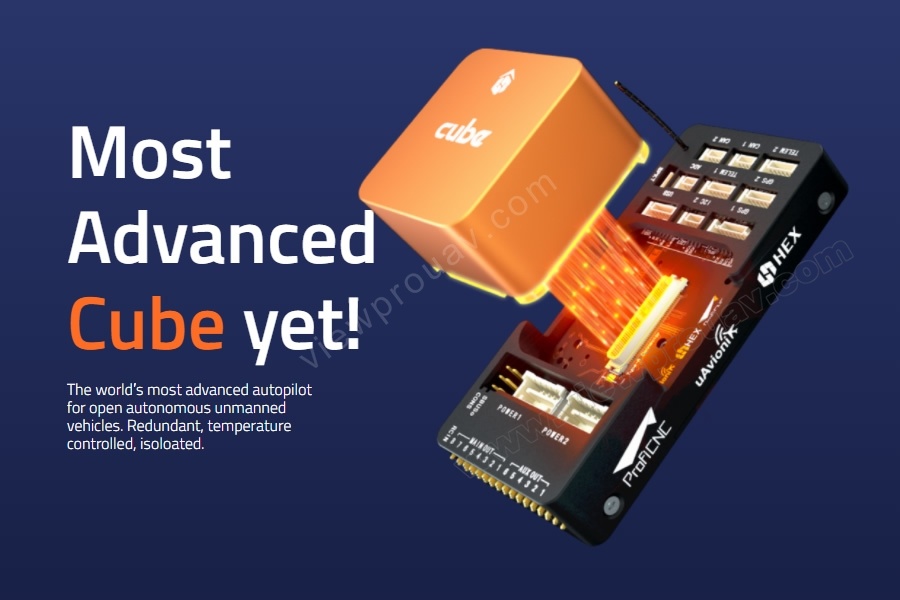

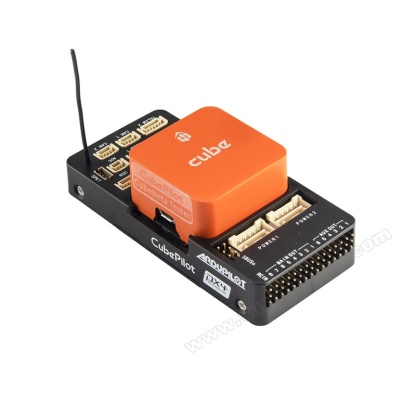

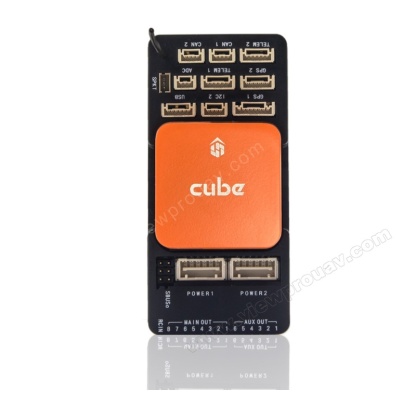

HEX Cube Orange Autopilot Open Source Drone Flight Control

Name: HEX Cube Orange Autopilot Open Source Drone Flight Control
SKU: S16058694588746335590522632
Availability: InStock

€669.00

78 disponibles

SKU: S16058694588746335590522632 Categorías: Todos los productos, Flight Controller & GPS & RTK, UAV Accessories

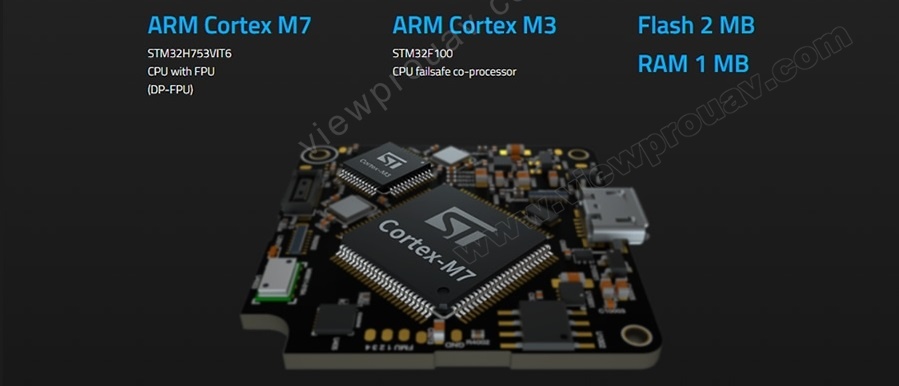

Equipped with High Performance H7 Processor

H7 has double-precision (DP) FPU, 1MB RAM, and 40OMHz CPU processor provides high performance, extremely fast operation, and stable solution for flight.

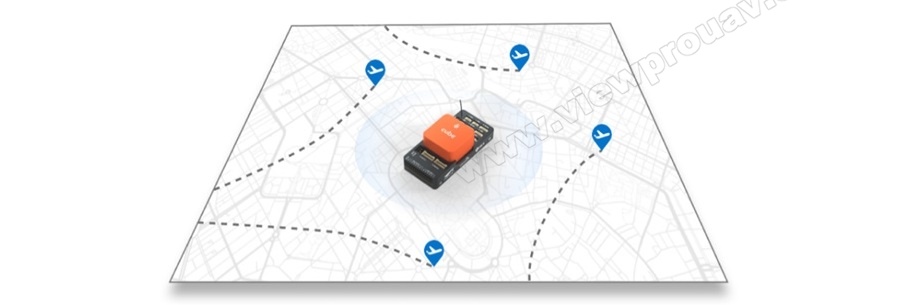

Situational Awareness by Integrated ADS-B

A 1090MHz customized ADS-B receiver from uAvionix has been integrated into the new ADS-B carrier board.This provides new function without size increment.UAVs equipped with the new carrier board can receive attitude of commercial manned aircrafts within the range of ADS-B out. This effectively informs the UAS operator to enable them to assess the risks on their current operation.

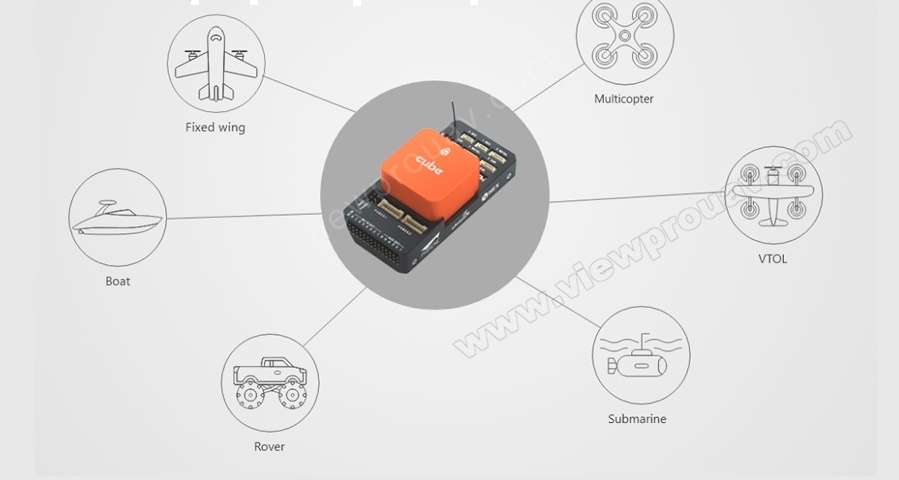

Support for multiple vehicle types

Including Helicopter, qnulticopter, fixed wing, VTOL, Rover, Boat, Submarine, etc

Triple redundant IMU system

Packed with upgraded sensors providing more reliable and safe system.

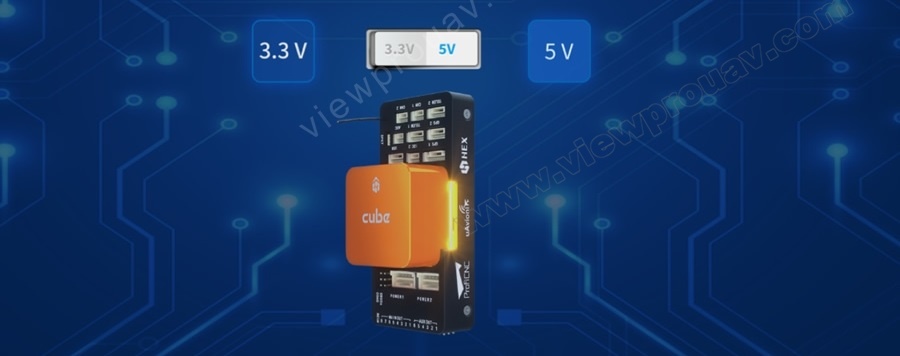

Easy switching of PWM output signal voltage

PWM output supports switching between 3.3V and 5V signal levels. Voltage switching can be done by ground control station software. This improves compatibility with various external peripherals.

Hardware specification
Main Processor	STM32H753VIT6
Coprocessor	STM32F1
Supported RC signals	PPM/SBUS/DSM
Power redundancy	Triple redundancy

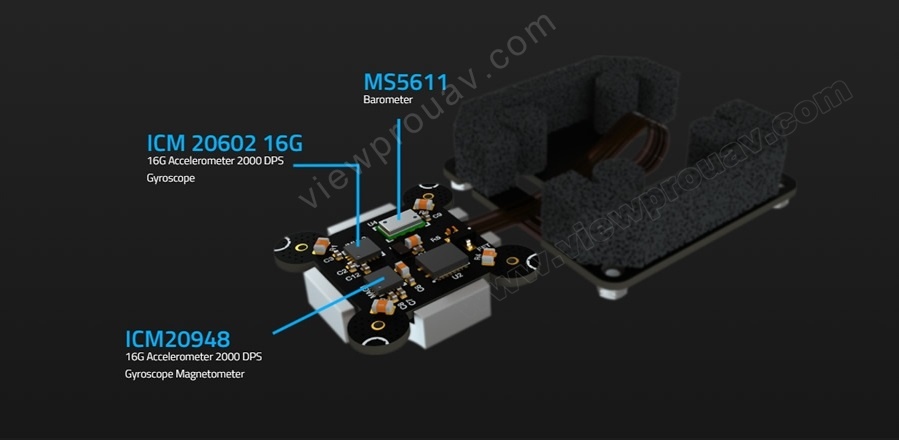

Sensors	Triple lMU System
Sensors details	ICM20649(integrated accelerometer+gyroscope)
	ICM20602(integrated accelerometer+gyroscope)
	ICM20948(integrated accelerometer+gyro+magnetometer)
	MS5611x 2(Baro)
Supported firmware	Ardupilot and PX4 open source flight controller firmware
Supported vehicle types	Fixed-wing planes
	Copters with 3-8 motors
	HelicoptersVTOL-planes
	Rovers/boats/submarines
Specification
Weight	73g
Chassis Material	CNC Aluminum Alloy(cube)+ABS Molding(Carrier Board)
Size	cube 38.4×38.4x22mm
	Carrier Board 94.5×44.3×17.3mm
Operating temperature	-10~+55°IMU with temperature control
PWM 1/Os	14
Mavlink serial interface	2
Number of GPS supported	2
Debug interface	1
12C interface	1
CAN interface	2

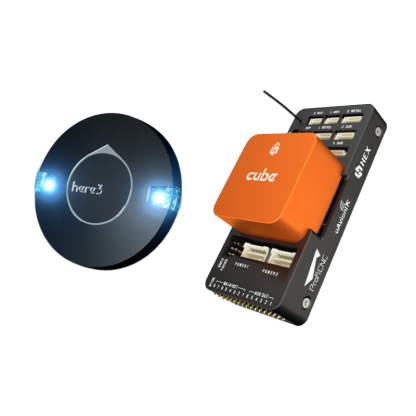

Here2 vs Here3
Features	hara2	hara3
GNSS	Yes	Yes
Compass	Yes	Yes
Protocol	12C,CAN	CAN
Real-time Operating System	Yes	Yes
Firmware Update	Yes	Yes
RTK	No	Yes
Dustproof，waterproof splash	No	Yes
Specification
Receiver Type	u-blox M8 high precision GNSS modules(M8P)
Satellite Constellation	GPS L1C/A, GLONASSL10F, BeiDou B1l
Positioning accuracy	3D FIX: 2.5m / RTK:0.025m
Processor	STM32F302
IMU snesor	ICM20948
Navigation Update Rate	Max:8Hz
Communication Protocol	CAN
0perating Temperature	-40°C to 85°C
Dimension	76mm x 76mm x 16.6mm
Weight	48.8g
