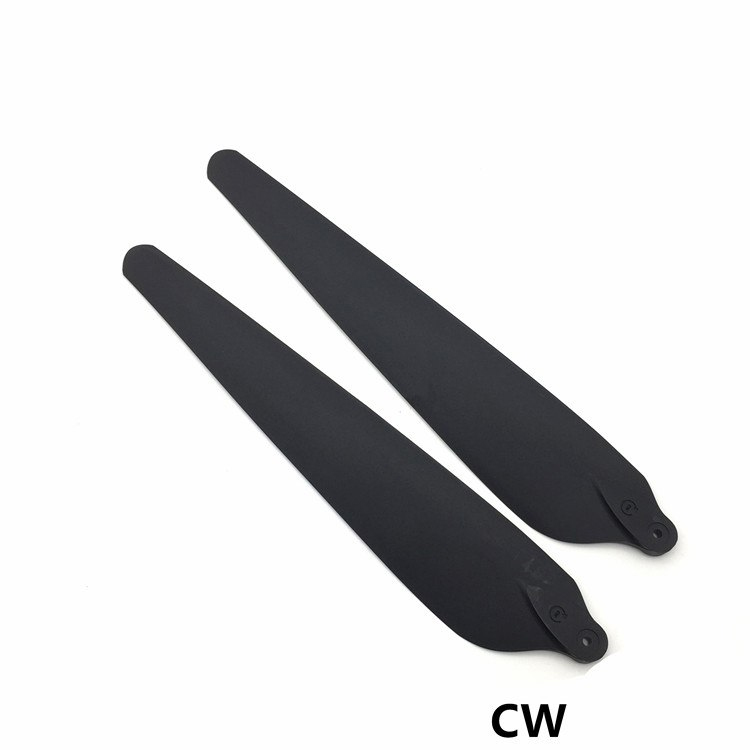

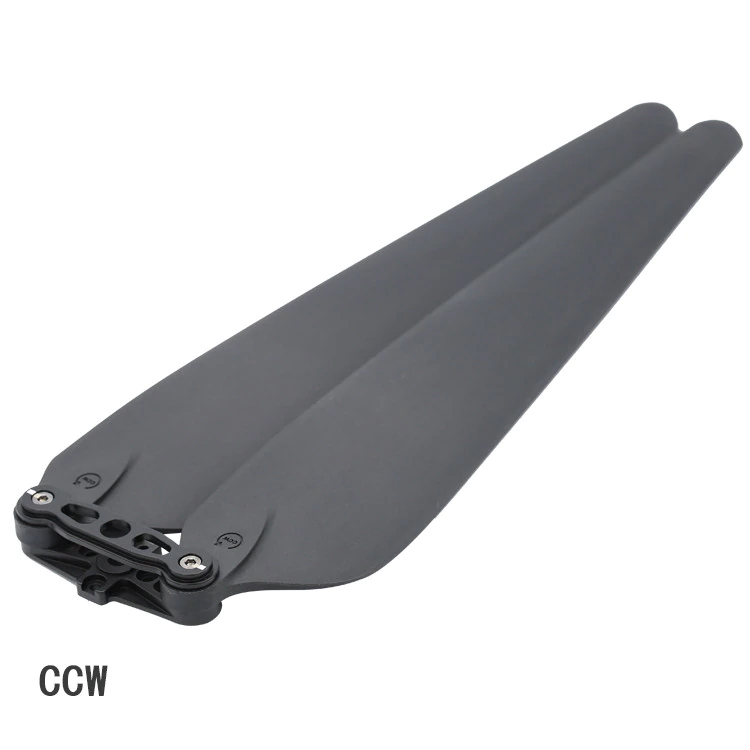

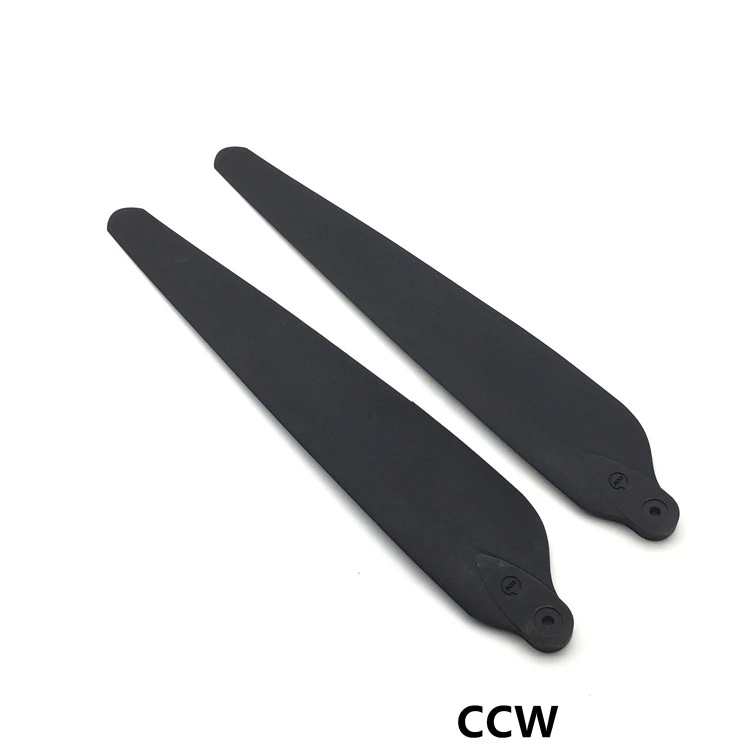

Original Hobbywing folding propeller CW CCW 3090 30inch for X8 and 8120 Power System agricultural drone
Hobbywing folding propeller installation and guide.
Download
Manual DownloadHow to Replace a Hobbywing folding propeller ?

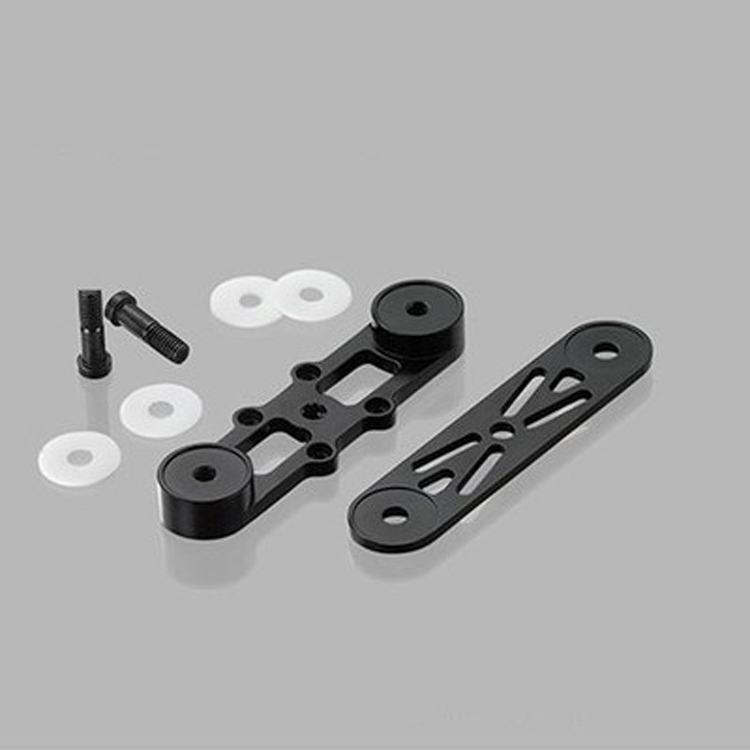

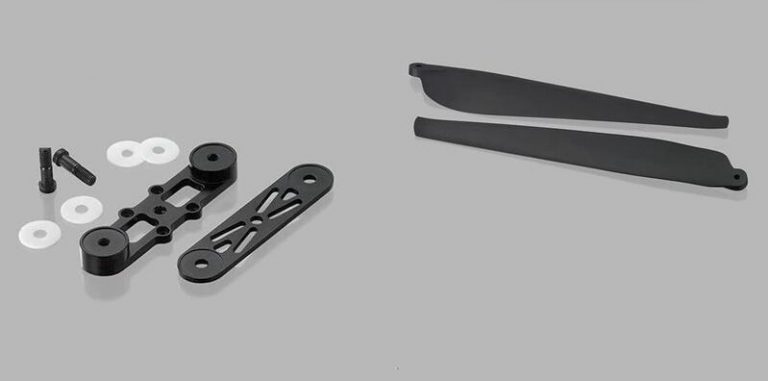

• Unscrew the two M6 *22 screws for fastening the blades with a screw driver and change the blade(s). If you also want to change the propeller adapter, then you need to unscrew the four M3*10 screws for fixing the adapter with another screw driver and change the whole set of propeller.
• When mounting the propeller, you need to mount the bottom cover (of the propeller adapter) on the motor first, then blades, spacers and the top cover (of the propeller adapter), and then fix them with screws. Please note that the blades can rotate freely after fastening them with M6 screws, and ensure that you will also apply some glue to the screws after fastening the propeller adapter to the motor with M3 screws.
| Peso | 0.5 kg |
|---|---|
| Opciones | 3090 CCW with Adapter, 3090 CCW without Adapter, 3090 CW with Adapter, 3090 CW without Adapter, Adapter |
