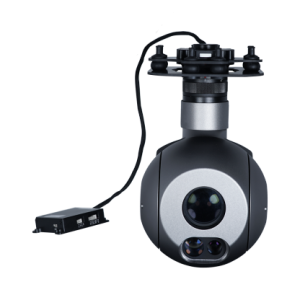

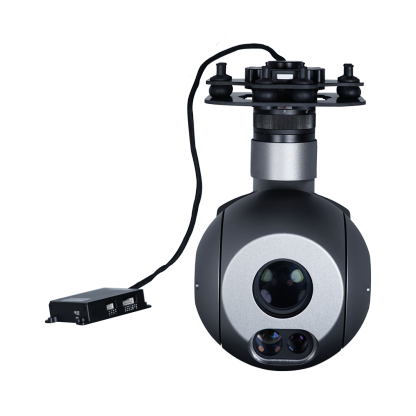

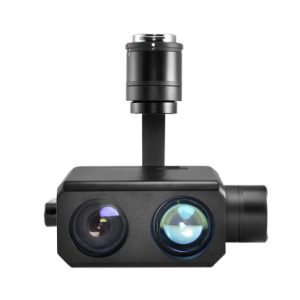

Q30TM Cámara Gimbal de 30 aumentos con resolución de coordenadas GPS de objetos y LRF

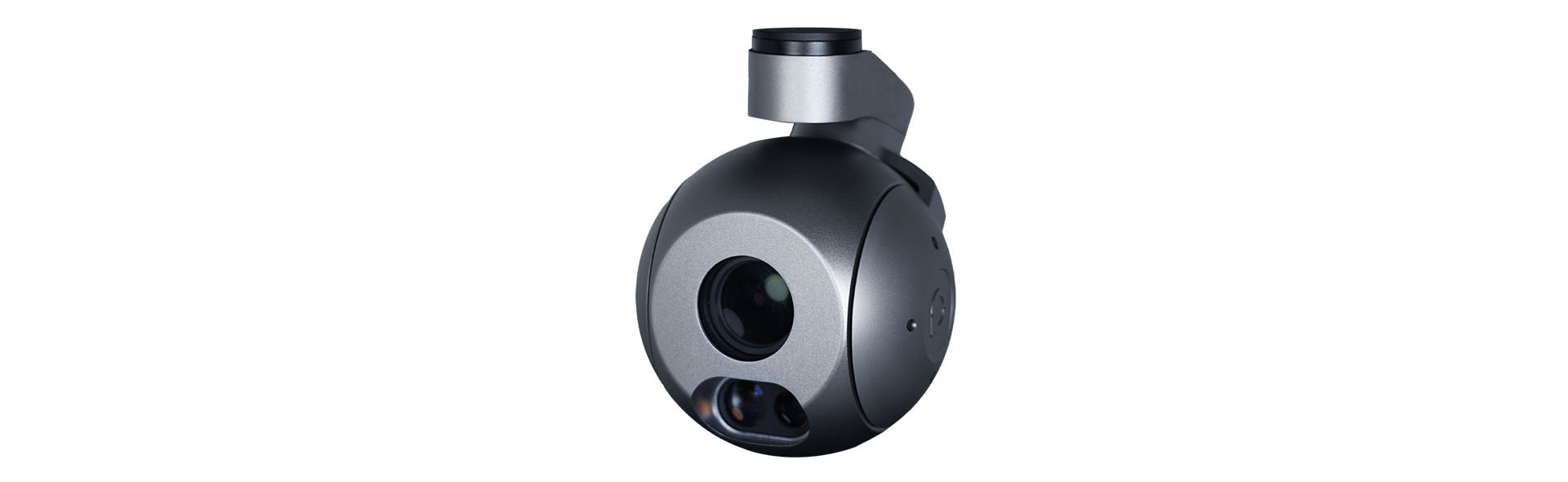

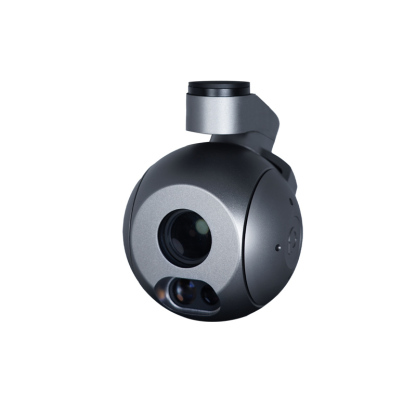

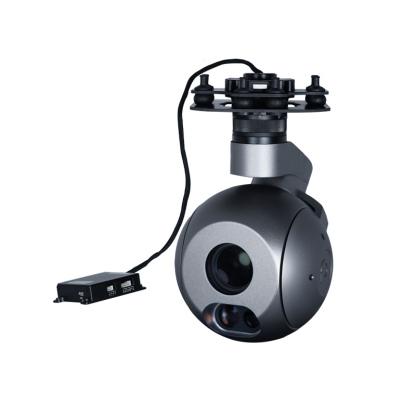

Stabilized the Q30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Q30TM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video.

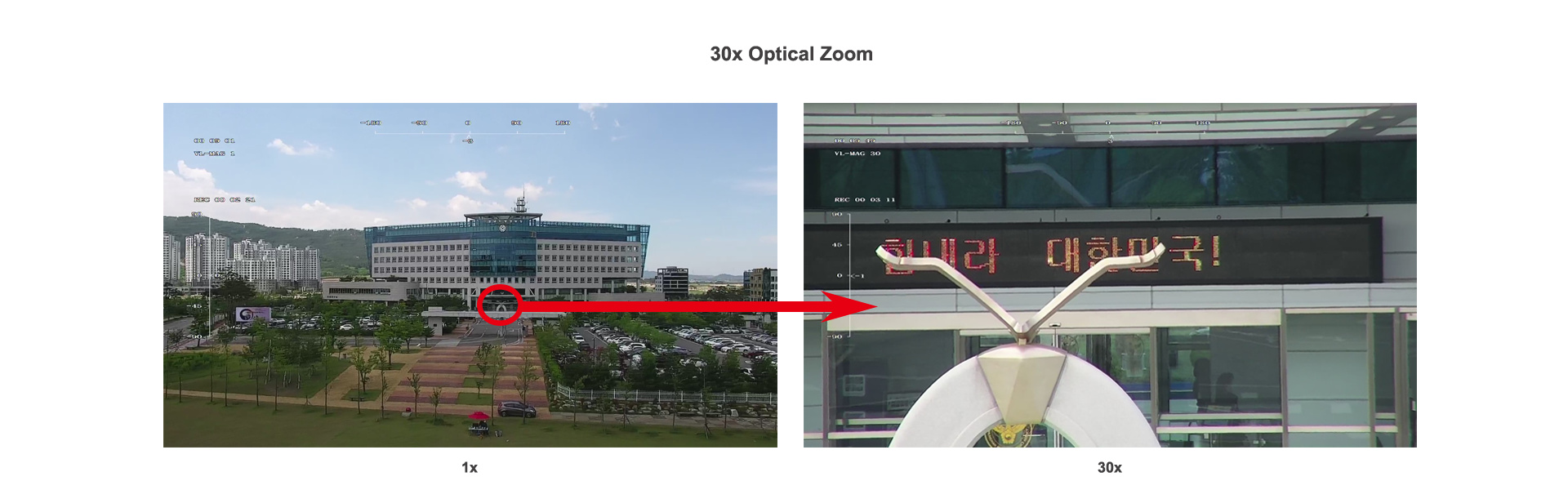

30x Optical Zoom Camera

Stabilizing the Q30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

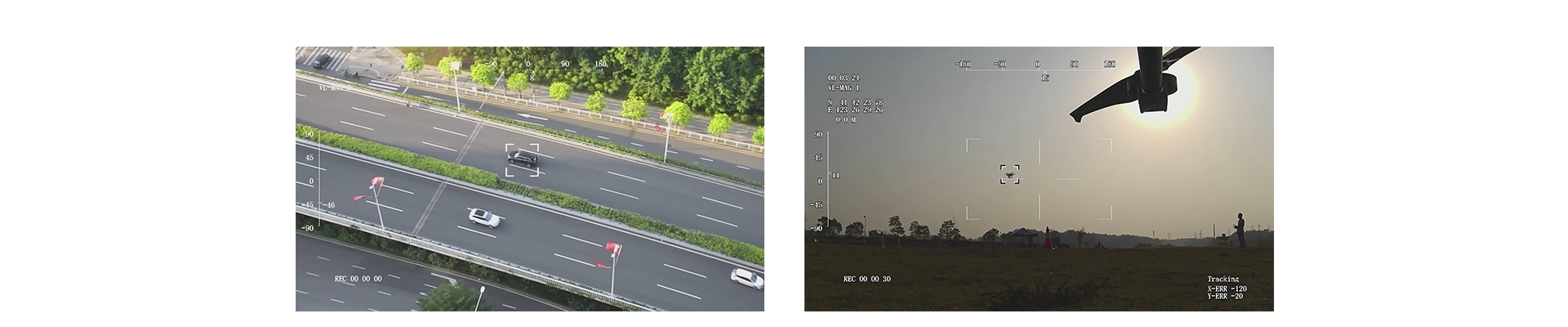

Camera Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

GPS Location Resolving

The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.

Multi Output Methods Optional

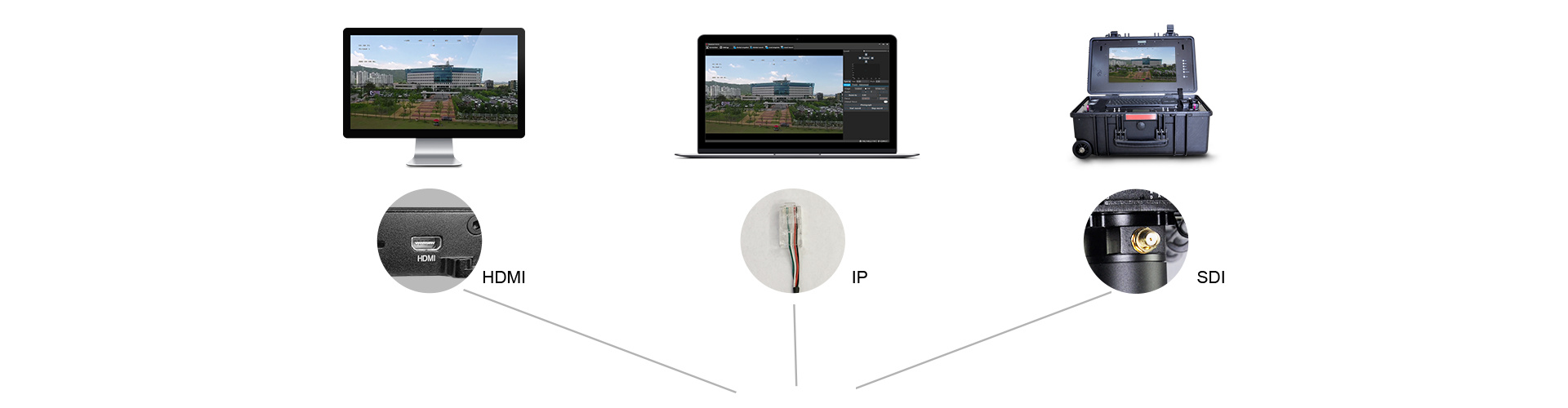

Q30TM supports both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output default as 720P and record is 1080p. IP output will support 360 degree enless pan.

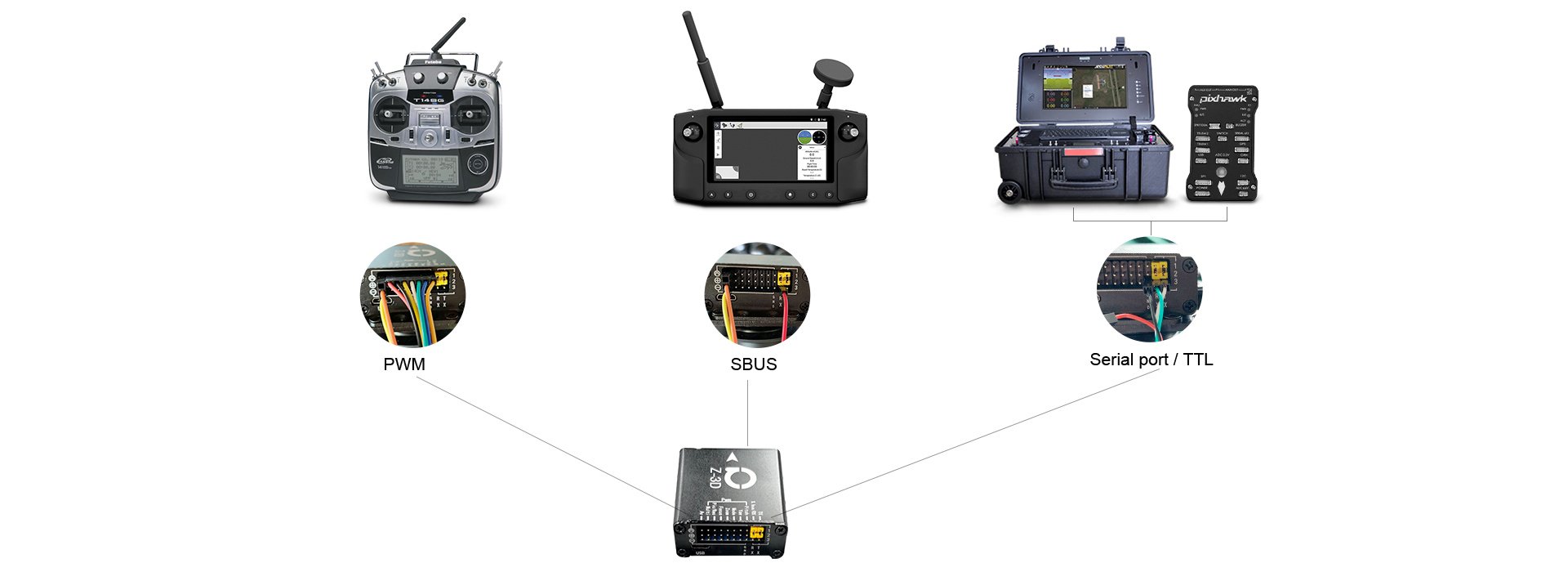

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional. With Viewpro software Viewlink you can fulfill IP output, TTL control.

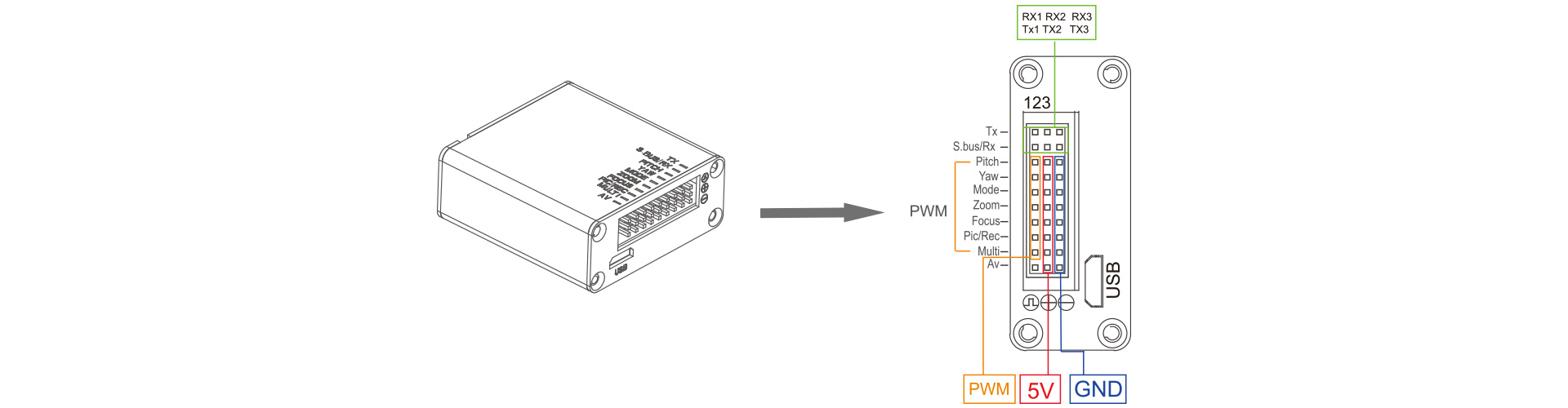

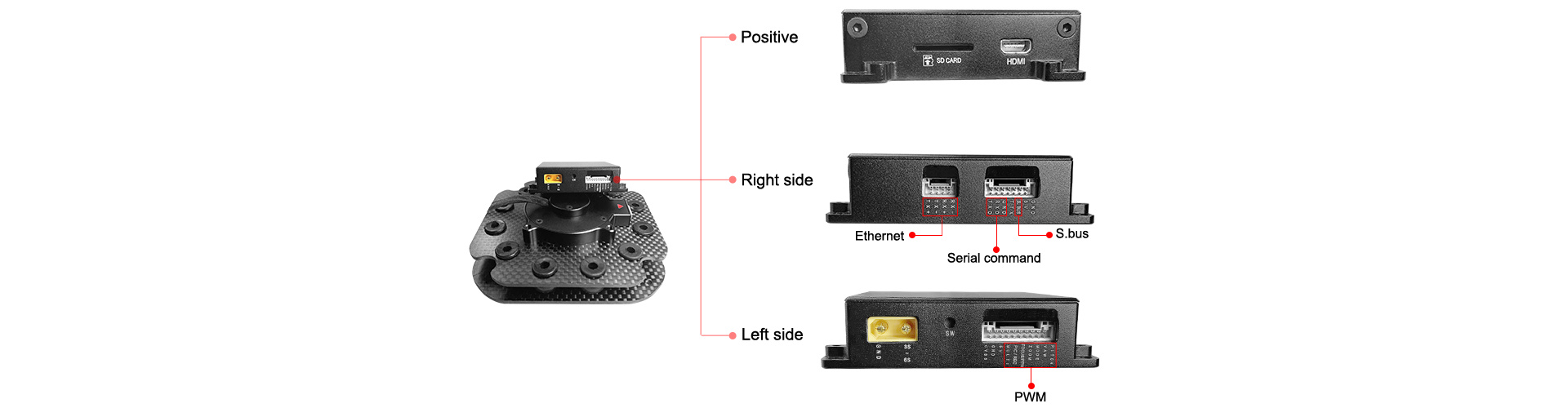

Control box signal interfaces:

Compatible with Viewport

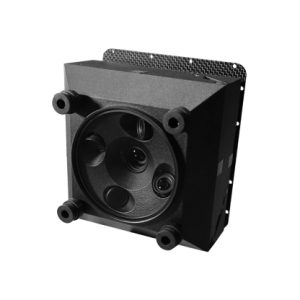

Q30TM is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

For more information about Viewport, please check below video instruction:

Application

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

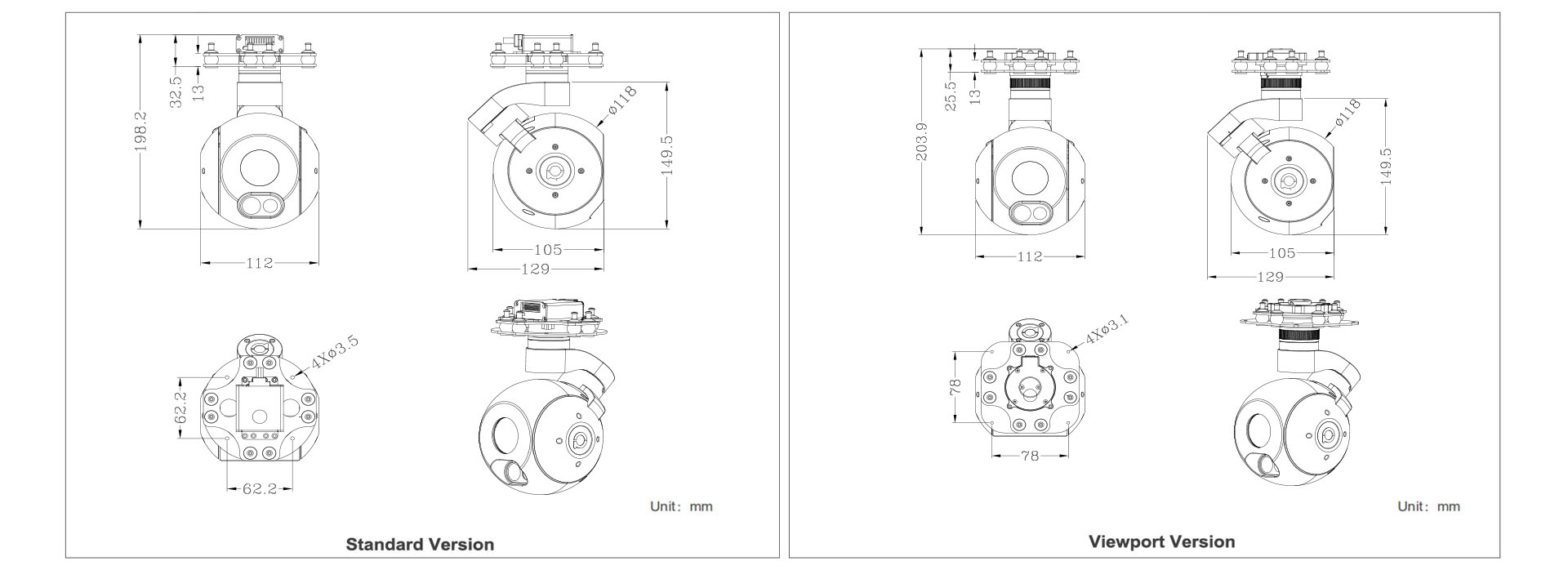

Dimensions



Parámetros de hardware
Tensión de trabajo	12V
Tensión de entrada	3S ~ 6S
Tensión de salida	5V (conectar con PWM)
Corriente dinámica	950~1100mA @ 12V
Idle current	950mA @ 12V
Entorno de trabajo temp.	-20℃ ~ +60℃
Salida	micro HDMI(HD output 1080P 25/30/50/60fps) IP(1080P/720P 25/30fps)
Almacenamiento local	Tarjeta TF (hasta 128 G, clase 10, formato FAT32 o ex FAT)
Formato de almacenamiento de fotos	JPG(1920*1080 / 1280*720)
Formato de almacenamiento de vídeo	MP4  (1080P/720P 25fps/30fps)
Método de control	PWM  / TTL / S.BUS / TCP(IP output) /DJI Pilot
Especificaciones del cardán
Gama mecánica	Pitch/Tilt: -60°～120°,Roll: ±35°,   Yaw/Pan: ±300° / ±360°*N (IP output version)
Alcance controlable	Pitch/Tilt: -45°～90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Ángulo de vibración	Pitch/Roll: ±0,02°, Yaw：±0,02°.
Una tecla para centrar	√
Camera Spec
Sensor de imágenes	SONY 1/2.8″ "Exmor R" CMOS
Calidad de imagen	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	30x, F=4,3~129mm
Zoom digital	12x (360x with optical zoom)
Min object distance	10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle	1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sistema Sync	Interno
Relación S/N	más de 50 dB
Iluminación mínima	Color 0.01lux@F1.6
Exposure control	Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain	Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
Balance de blancos	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Velocidad de obturación	1/1s to 1/10,000s, 22 steps
Backlight compensation	Sí
Aperture control	16 steps
Desempañar	Sí
OSD	Sí
Camera Object Tracking
Tasa de actualización del píxel de desviación	50Hz
Retardo de salida del píxel de desviación	5ms
Contraste mínimo del objeto	5%
SNR	4
Tamaño mínimo del objeto	32*32 pixel
Tamaño máximo del objeto	128*128 pixel
Velocidad de seguimiento	32 pixel/frame
Tiempo de memoria del objeto	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel
Telémetro láser IR
Laser Wavelengths	1550nm
Optical aperture	Transmit 13mm / Receive17 mm
Resolución	0.75m
Measure ability	3000m  (Typical value 1: · Object size: the target surface is larger than the laser spot area · Reflectivity: 60% · Accuracy rate: 90% · Visibility: 10 km · Environment temperature: 20℃ · Atmospheric pressure: 1013 mbar)
Vehicle target measuring	2300m (Typical value 2: · Object size: 2.3*2.3 m · Emissivity: 30% · Others same as Typcial value 1)
Eye-safe	Class 1【Standard IEC 60825-1, Second Edition (2007-03)】
Laser beam angle (Typical value)	1.0 mrad
Accuracy (Typical value)	± 0.75m
Accuracy (In harsh condition)	± 2m
Measurement frequency	2Hz
Object resolution (Typical value)	30m
Información sobre el embalaje
N.O.	888g(Viewport Version)
Producto meas.	112*129*203.9mm
Accesorios	1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls,  4pcs damping boards / Hight quality plastic box with foam cushion
