Bastidor de drones de formación para el programa de formación y certificación de la AOPA y la FAA

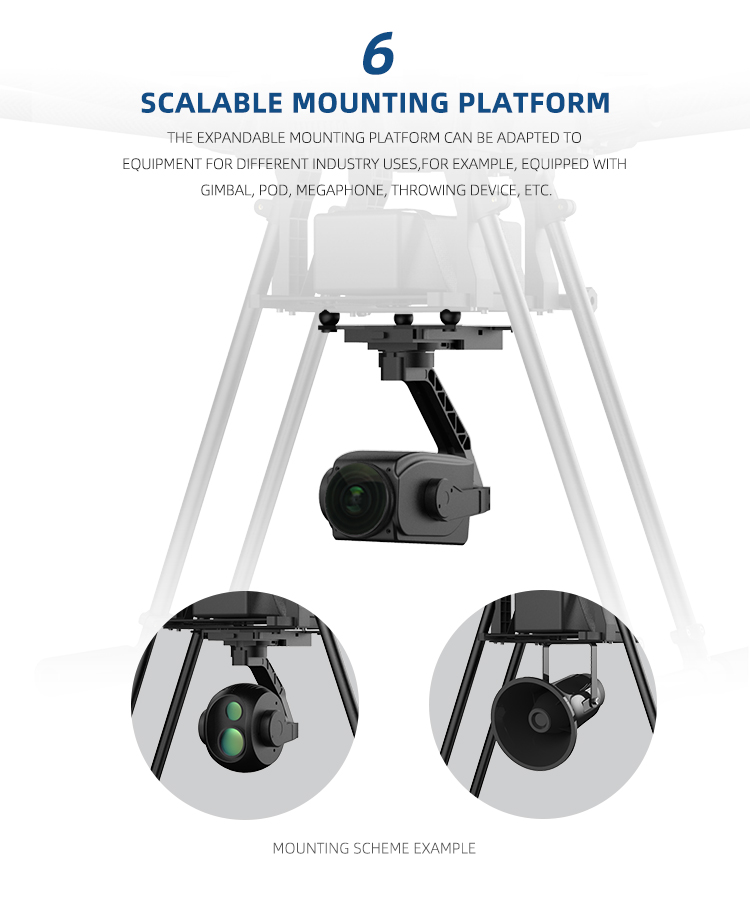

Training drone frame FLYD-100 V2 is special design for education training program and get drone certification.  The main body of the fuselage adopts a modular design, and the fuselage frame is integrally formed, with a simplified structure and convenient assembly.  the arm adopts a separate disassembly design and ingeniously designed breakpoints to produce damage to the parts of the bomber and reduce maintenance costs. the whole machine adopts the classic umbrella-sharped folding method, which minimizes the size after folding, and is convenient for storage.  The design of the whole machine is dustproof and waterproof, and the protection grade is IP65, which can fly normally in the rain. the battery guide rail cooperates with the spring positioning knob to realize the tool-free replacement of the battery compartment, making the battery installation and replacement more convenient and quick.  the expandable mounting platform can be adapted to equipment for different industry uses, for example equipped with gimbal, POD, megaphone, throwing device ETC.

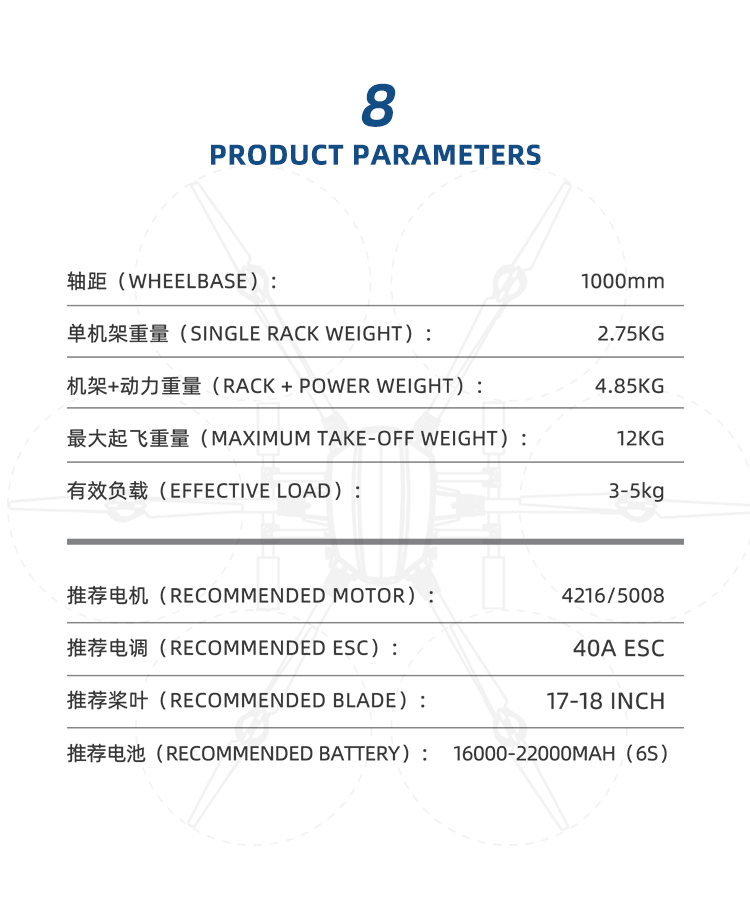

Wheelbase: 1000MM   Height: 500MM
Frame Weight: 2.75KGS
Supply voltage: 6S
Motor: 5008 KV300
Propeller: 18 inch propeller
Battery: 1 units 16000 mAh 22.2V?
Payload: 3-5KGS
Endurance: 40 minutes(without payload)

NOTA： EL PRECIO ES SÓLO KIT, SIN NINGÚN TIPO DE ELECTRÓNICA.
