Name: FDAD-Q630L drone pulvérisateur 30L grande capacité prêt à voler
SKU: 5487FB8/10-184
Availability: InStock

€7,168.00

245 en stock

UGS : 5487FB8/10-184 Catégorie : FDAD-Q630L Assemblage des pièces Étiquettes : Drone de pulvérisation, FDAD-Q630L Assemblage des pièces, Drone agricole

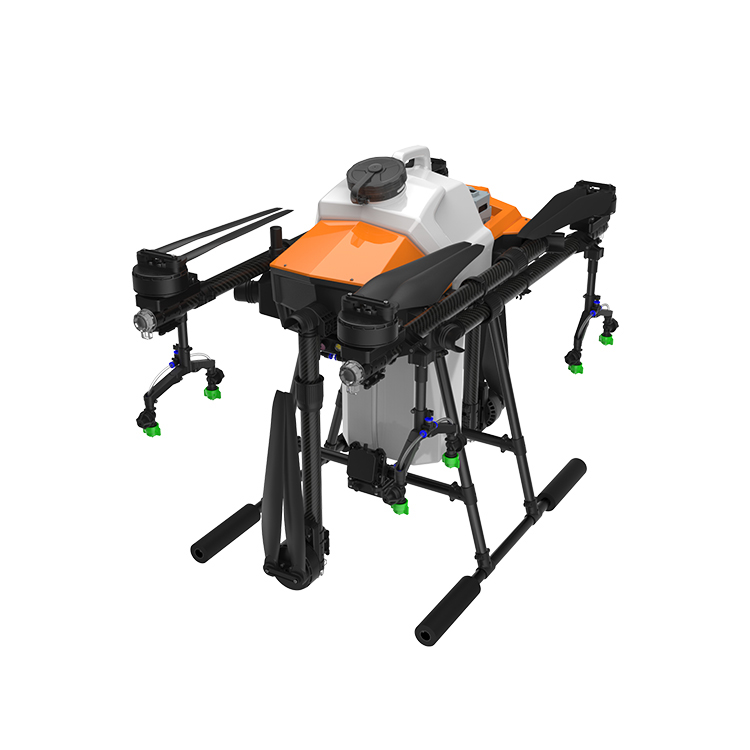

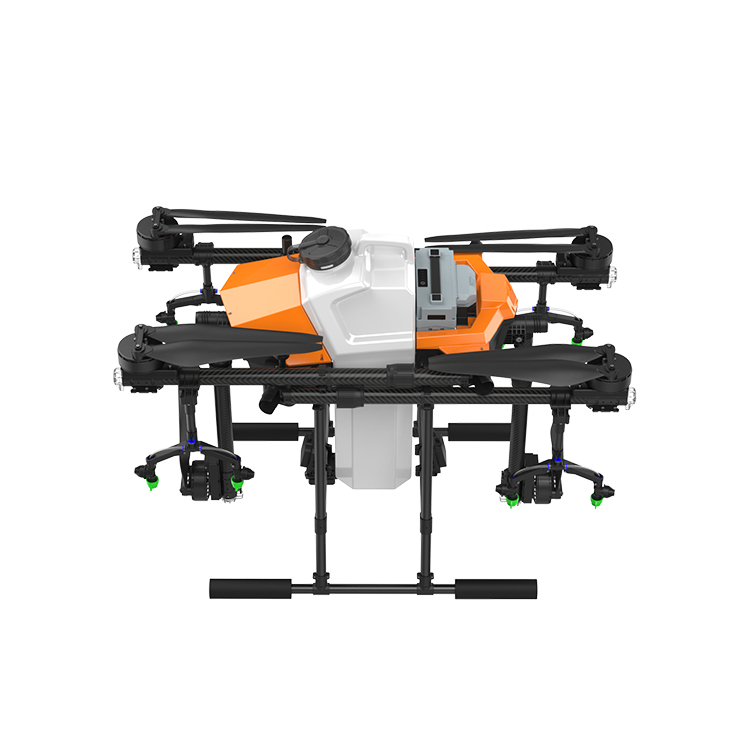

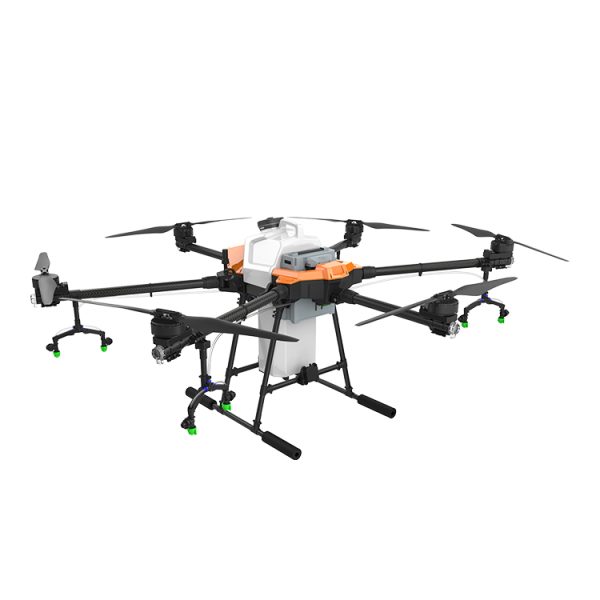

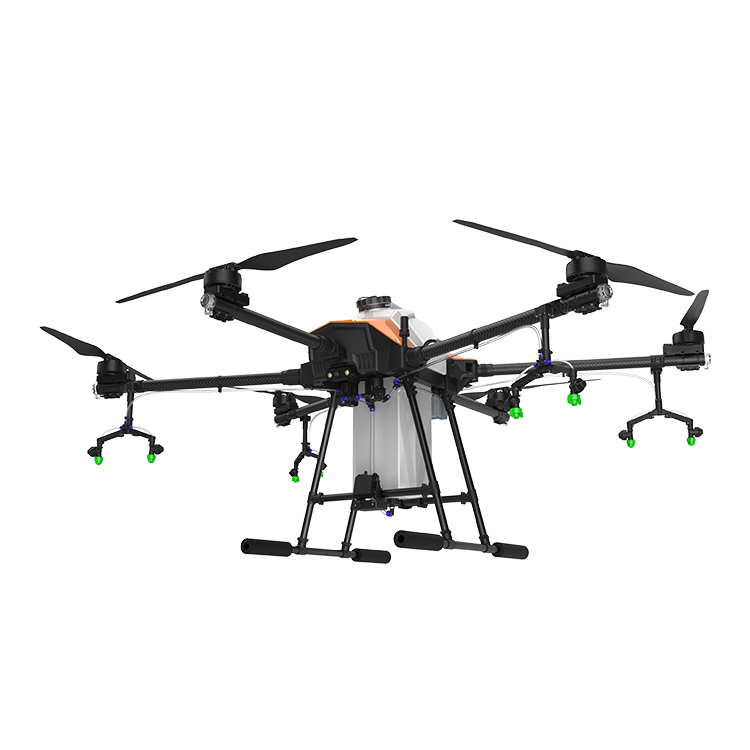

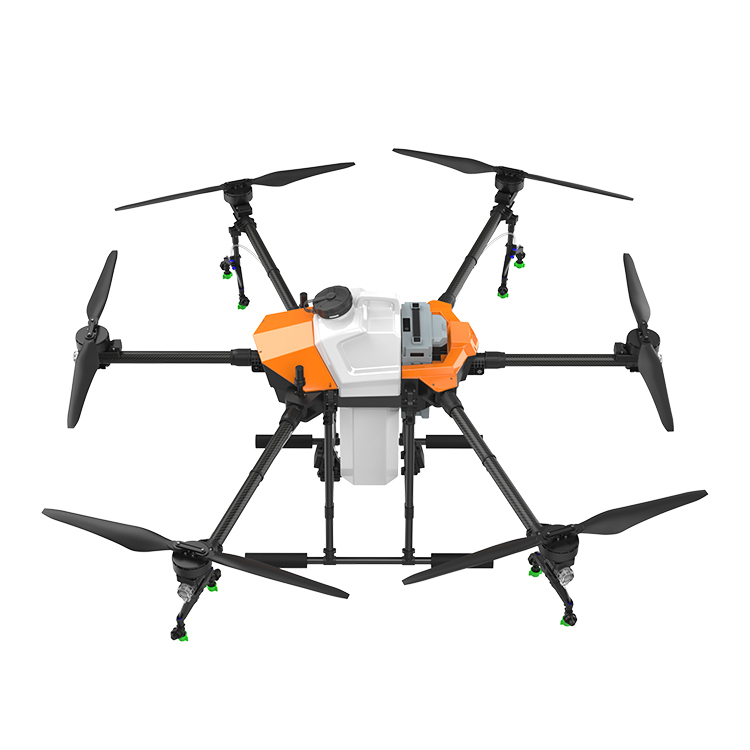

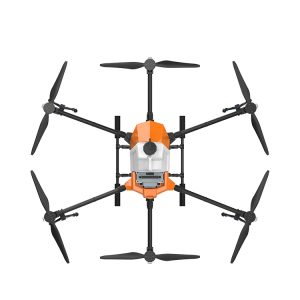

FDAD-Q630L drone sprayer 30L large capacity ready to fly

drone sprayer agriculture crop spraying drones. 30L agriculture crop spraying drone is always the most popular. FDAD-Q630L 30L agriculture drone is specially designed for the most popular 30L capacity. The effective capacity of the drone is 30L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q630L 30L series drones.

Description
empattement	2028MM
Unfolded size	26922619885MM
Folded size	1192623885MM
Capacité du réservoir	30L
Poids du cadre	11.5KGS
Frame and spraying weight	13KGS
Frame and motor sets weight	23.85KGS
No-load takeoff weight	32.2KGS(including 14S 1*22000mAh battery 7KGS)
Full load Take-off weight	62.2KGS
Nozzle	Ceramic sprinkler head imported from Germany/China
Number os nozzles	4pcs
Flight Speed	3-8 Meter /Sec
Spray width	3-6 Meter /Sec
Max spraying flow	1.5-3 kg/min. （Max. 4kg/min.）
spaying efficiency	1.5-3 Acres/Min.
Water Pump Pressure	0.48mPa
Delivery package size	Aluminum Box 1100600850mm 45kg
Transport volume weight	110.2kg
The fuselage material	Carbon fiber composite
Max flight time (no load)	20min
Max flight time (full load)	8min
The tank volume	30L
Working temperature work	-15°C~45°C
Signal effective range	5km
Flight Control systems	Boying
Dynamic System	Hobbywing X9 plus, tube: 40mm
Spraying System	High Pressure Spray
The battery specification	14S 28000mah*1PCS
work power	51.8V(14S)
Charging Time	0.5-1hour
Recharge Cycles	300-500 times
Daily efficiency(6hours)	300-500acres
Storage ambient temperature	For less than 3 months: – 20 ° C ~ 45 ° C For more than 3 months: – 22 ° C ~ 28 ° C
Hover time	No-load flight Time: 20.3minutes (48V) Full-Load flight time: 6.35 minutes (48V)
Standby time of remote control	8hrs
Fonction
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Parameter of the Spraying system
Water Pump: 12S brushless water pump Nozzle: Extension rod Y shape double 1.0 nozzle Extension rod U shape double 1.0 nozzle Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;
Main feature
1. Crossfolding Method ,The arms of the Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the Q630LAgriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q630L has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q630L drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.

Please note this is ready to fly version.

Caractéristiques principales :
Crossfolding Method
The arms of the FDAD-Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation.

Integrated Fuselage Frame
The fuselage frame of the FDAD-Q630L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-Q630L has good durability and reliability.

Quick Release Battery & Tank
The water tank of the FDAD-Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment. The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-Q630L drone. It is convenient to replace the tank and battery.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
