SKYDROID-T12 RC Liaison de données Liaison vidéo Trois en un Station au sol SYS Handheld

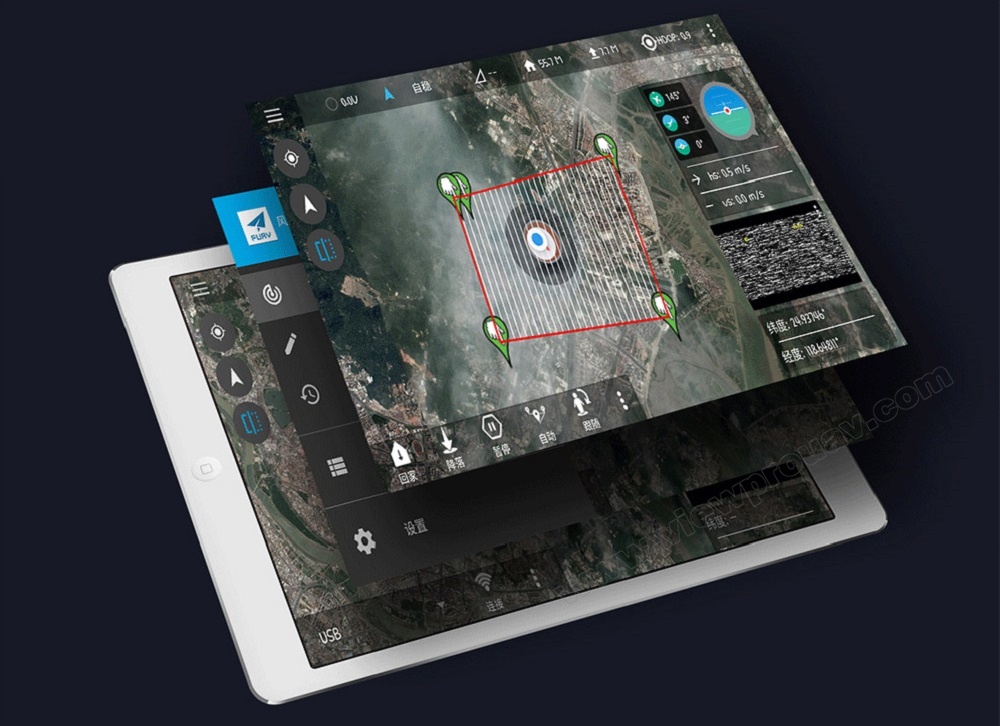

Ground Station APP

F-Tower, based on towers, presses ahead lots of optimization and better interactive interface which expand vision. It could control aircraft to realize the intelligent waypoint plan, automatic implementation and following.Returning by one key improves the professional work efficiency greatly.

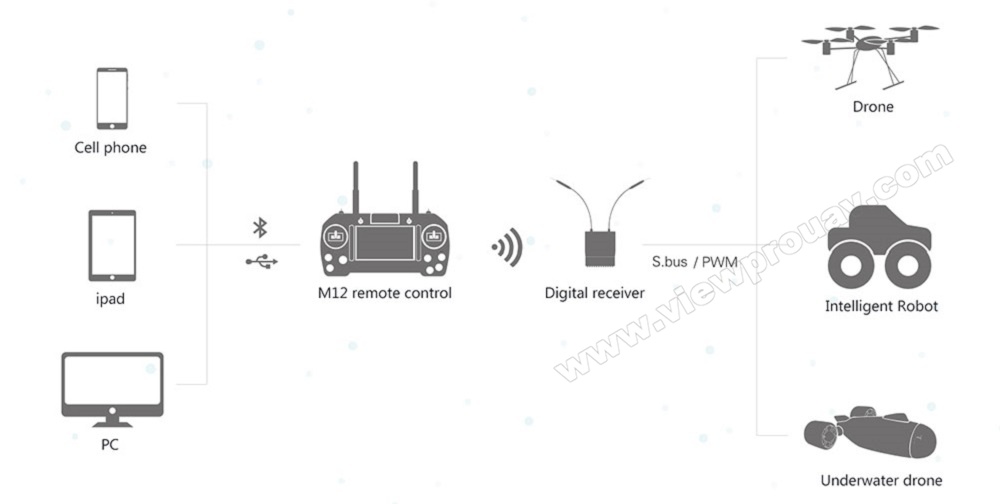

SUPERSTRONG EXPANSIBIILITY

Bluetooth, USB connection methods,supporting S.BUS,PPM,PWM,12C, serial port and other ports as well as equipment expansibility.

DIGITAL GRAPH CONTROL LINK SYSTEM

Small volume, light and handy, easy to carry

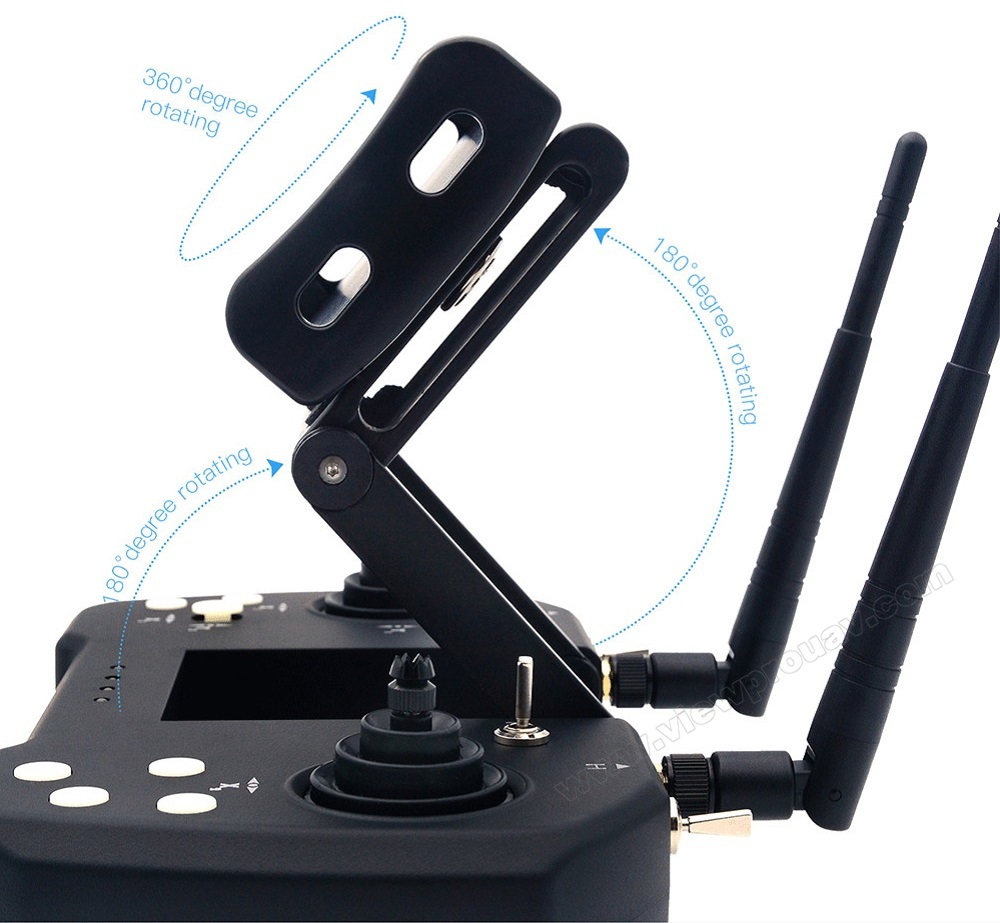

Metal Holder, Free Angle

Adopting aluminum alloy holder is steady and firm and easy to adjust the 360 degree rim lock and 180 degree angle, being easy to adjust.

Remote Control make fly being more intelligent and easier Smart & Speed Humanity Design

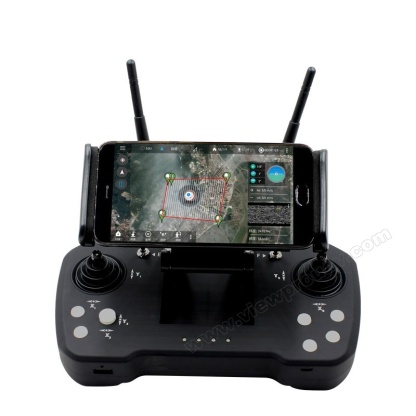

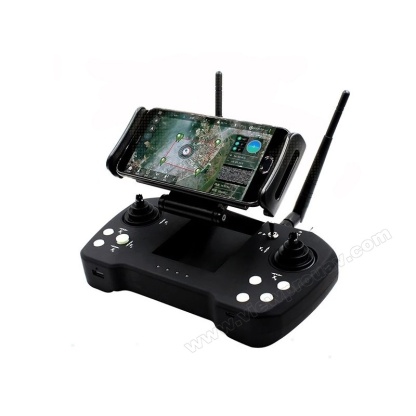

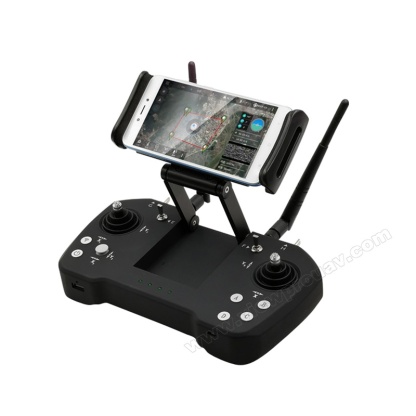

PRODUCT INFORMATION

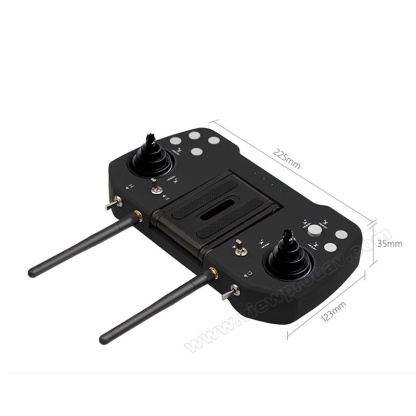

Light and Handy, easy to carry

Small volume, light and handy, easy to carry

Dual Reception and Send,High efficiency and Speed

Being able to independently receive the signal. The superstrong signal and distant realized the double redundancy technology.

Digital receiver for night navigation lights

T12 Advantages

> Build in high efficiency antenna to avoid delay in digital transmission.For safety flying
> Build in intelligent communication.Increase the stability oflong distance transmission.Dual antenna dual module
> supported by FHSS technology.The longer distance canreach 20km
> Hall sensor gimbal with permanent magnetic sensor makelonger life to 30 years.Military grade anti dust protectivegimbal cover
> Remote dimming camera with 8w LED can capture videoclearly at night
> Bluetooth plus USB wire provide reliable link up
> 24hrs continues working with one charge
> Legal 100mw output power comply with related certifcate for export
> Battery is MSDS certified so it is allowable to carry on the plane

POWERFUL TRANSMISSION LINKS

> Double antenna and model redundancy design matching algorithm control and step outalgorithm enhance the communication ability of the weak signals.

>When receiving remote control signals, it preserves TX RX and the flying data to the ground remote control which makes full use of 2.4G wireless broadband to alleviate the crowded space of 433 as well as the unstable frequency band and no interference of 915.

Mobile APP Parameter Adjust Software

Through Bluetooth, USB, OTG to connect mobile phone APP,quickly changing hand shape to adjust channel positive and negative direction, rudder amount, wild protection amount,SBUS, PPM output, data baud rate and so forth.

Providing parameter adjust by one key for different factories and machine types. After saving the function, you could adjust as you using.

Parameter adjust APP is upgraded over the air.

M15 Agriculture vs.M15 Enterprise

M15 Agriculture vs.M15 Enterprise
	M15 Agriculture	M15 Enterprise
Transmitter HDMI Output	N	Y
Receiver Entrée vidéo	Viewpro Private Video Stream	Standard RTSP Video Stream (compatible with third-party lP cameras)
Gamme optimization	Ground to Ground (Height 3 meters) 4+ kilometers	Ground to Air (Height 120 meters) 15+ kilometers
Dans l'ensemble
Max Transmission Distance	15 km(unobstructed, free of interference)
AG Control Range	3.5 km(flying at 3-meter height)
channels	13
Datalink supported Fc	PIX APM
Videolink Supported Gcs (Standard RTSP video stream)	QGroundControl MissionPlanner
Transmitter (Ground Unit)
Monitor	5.5-inch High Definition and High BrightnessLCD Touchscreen
system	Android 9.0 2G RAM,16G ROM
Dimension (Antenna Foled)	189x 138x 41 mm
Poids	850g
Battery Capacity &Type	10200 mAh7.4V 2S Li-on
FastCharging Protocol	PD 30w
Temps de charge	3 hours
Battery Life	15 hours
lnterface & Ports	Charging: Type-C Firmware Upgrade: DATA(4-Pin) Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA(4-Pin) Data Transfer: USB-A
Waterproof Level	lP53
Température de fonctionnement	-10℃~55℃
Receiver (Air Unit)
Signal Output	16 channels of S.BUS 5 channels of PWM
lnterface & Ports	S.BUS: 3-Pin Datalink (to FC): UART 4-Pin PwM Channel 1-5:6-Pin Video lnput: 8-Pin Firmware Upgrade: Type-c
Dimension (Antenna Excluded)	70x 55x 16mm
Poids (Antenna Excluded)	100g
Antenna Gain	5dBi
power Input	25.2~58.8V (6s~14s)
Température de fonctionnement	-10℃～55℃
