מערכת כוח היברידית למזל"ט גנרטור למזל"ט היברידי

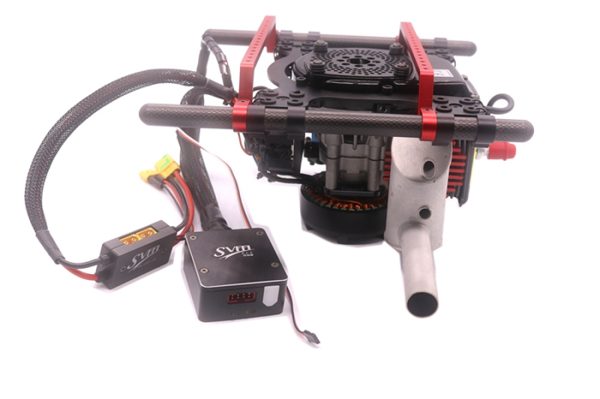

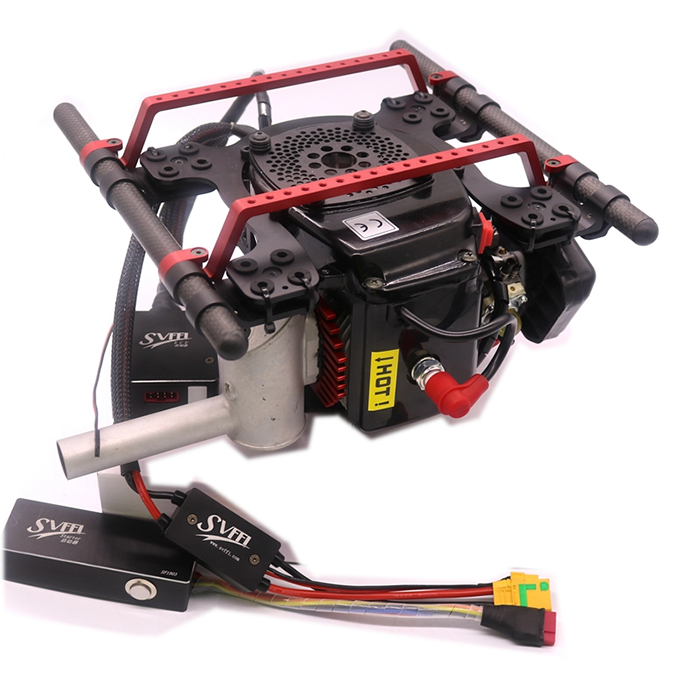

Hybrid Power System for drone FLY2400 generator is a high efficiency generator designed for multicopters. FLY2400 generator is only 4.2kg which is much lighter than any other generators that produce 2400w output power, so FLY2400 generator is five times the efficiency of other generators. The continuous power output of generator is 2000w. An internal combustion engine consumes gasoline and spins a generator to ensure a 48V output. Besides this, a 12S lipo battery package is also needed to be installed onboard to offer emergency back-up power for quick climbing and quick maneuvering. With this generator, the max take-off weight can reach 19kg(according to your power system), and the max flight time is about 5 hours. FLY2400 generator is suitable for those multicopters whose power is still lower than 2000w even with 6kg generator system(including generator, fuel tank and 1L gasoline). As for the fuel, the auto gasoline is available. When the generator running, its noise level is about 80 dBA. But the noise has no effect if you talk 10 meters away from the drone. We also provide the silencer if you need which could reduce the noise to 60 dBA.
Also maintenance is necessary for FLY2400 to keep its high performance. The maintenance cycle is 50 hours. And we will also provide the accessories for generator maintenance.
מפרט טכני:
Weight: 4.5kg
Size: 201*258*161mm (LxWxH)

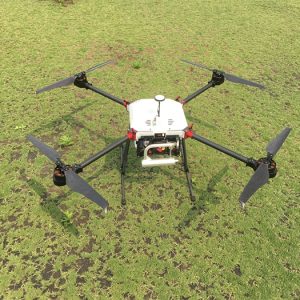

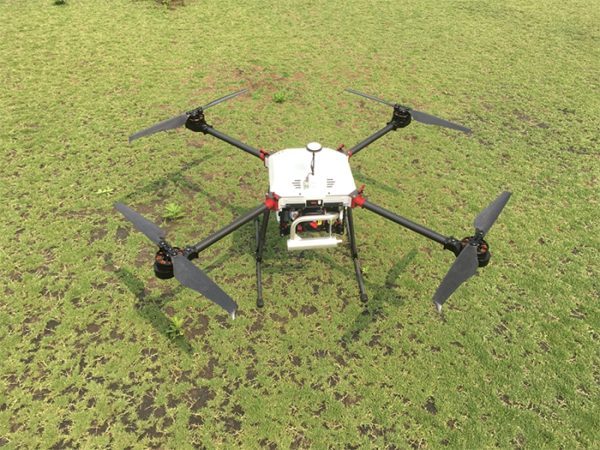

Applicable models: Multirotors/VTOL Fixed Wing
Max take-off weight: 18kg
Power voltage: 12S
Fuel consumption: 600g/kW*h (Hovering 1.5L/h)
טמפרטורת עבודה: -20℃-40℃
תקרה תיאורטית (גובה): 1000 מטר
Petrol: 95# or above (petrol+2T lubricant two-stroke lubricants that meet JASO FC/FDIOS-L-EGD standards)
תכונות עיקריות:
1. תכנון משולב של התנעה וייצור חשמל, וניתן לממש את פונקציית ההתנעה האווירית ללא תלות בציוד התנעה חיצוני.
2. העיצוב היחידני מאפשר תלייה קלה בכל סוגי ערכות המסגרת ומגוון תליות מטען משימה בתחתית.
3. אין צורך בזמן הכנה לטעינה, אין פעולת הצתה מסובכת, הוא יכול לבצע משימות במהירות.
4. סוללת הגיבוי יכולה לספק כוח עבור חזרה לטווח קצר או נחיתת חירום במצב חירום.
5. For light load service, additional fuel tanks can be added to expanded to flight time to 4-6 hours.
6. שיטת התקנה מהירה וקלה של המנוע, נוחה להחלפה ותחזוקה.
Package Included:
Hybrid powertrain x 1
6s 4000mah battery x 2

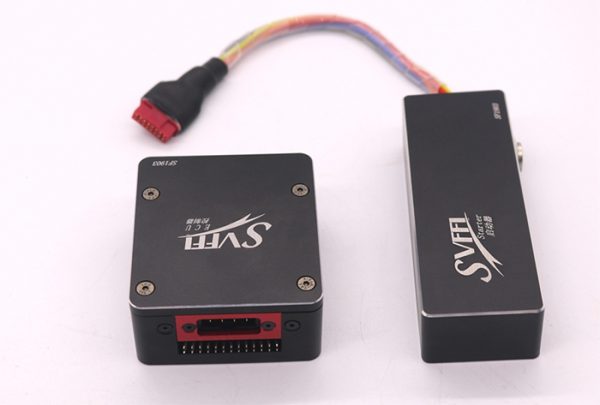

Starter x 1

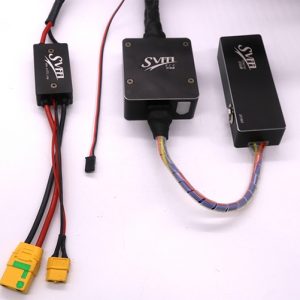

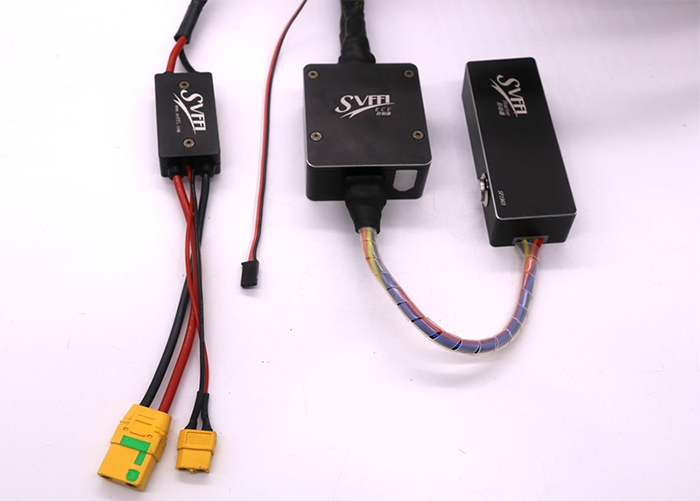

Controller x 1
Spark plug wrech x 1 (Gift)
Petrol Proportional bucket x 1 (Gift)
Download User Manual
MAINTENANCE CHART
| פריטים | Action | Before Use | Every 25 hours | Every 100 hours | Note |
| Leakage,Damage/Crack | Check | |
|||
| Idling Speed | Check/Adjust | ||||
| Air-cleaner | Check/Cleaning | Replace if necessary | |||
| Spark Plug(gap) | Check/Adjust | | |||
| Cylinder(barrel) | Check/Cleaning | | |||
| Piston, Ring | Check/Cleaning | | |||
| Bolt | Check/Cleaning | | |||
| Bearings | Check/Cleaning |
