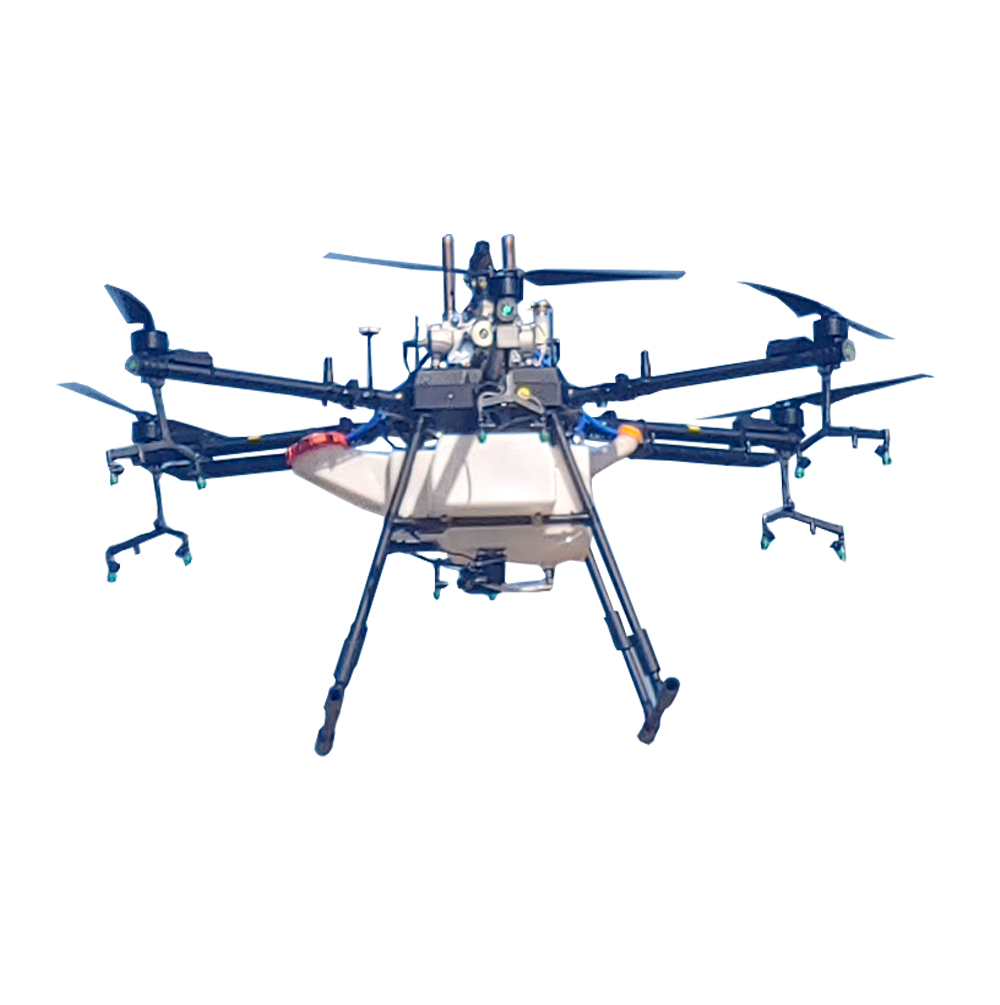

spray drone with 60L payload for agriculture spraying

Name: spray drone with 60L payload for agriculture spraying
SKU: 5487FB8/10-183
Availability: InStock

€26,880.00

154 במלאי

מק"ט: 5487FB8/10-183 קטגוריה: Spraying Drone תגיות: Agriculture Drone, HEAVY PAYLOAD, Spraying Drone

spray drone with 60L payload for agriculture spraying

Spray drone FDAD-Q660L 60L agriculture crop spraying drones. 26L agriculture crop spraying drone is always the most popular. FDAD-Q660L 60Lagriculture drone is specially designed for the most popular 60L capacity. The effective capacity of the drone is 60L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q660L 60L series drones.

Description
wheelbase	2300MM
Unfolded size	230023001350MM
Folded size	105010801350MM
Tank capacity	60L
Frame weight	13KGS
Frame and spraying weight	15KGS
Frame and motor sets & Hybrid generator weight	23.85KGS
No-load takeoff weight	60KGS(including 14S 1*22000mAh battery 7KGS)
Full load Take-off weight	120KGS
Nozzle	Ceramic sprinkler head imported from Germany/China
Number os nozzles	4pcs
Flight Speed	3-8 Meter /Sec
Spray width	3-6 Meter /Sec
Max spraying flow	1.5-4 kg/min. （Max. 5kg/min.）
spaying efficiency	1.5-3 Acres/Min.
Water Pump Pressure	0.8mPa
Delivery package size	Aluminum Box 120012001100mm 60kg
Transport volume weight	316kg
The fuselage material	Carbon fiber composite
Max flight time (no load)	90min
Max flight time (full load)	as the loading of fuel
The tank volume	60L
Working temperature work	-15°C~45°C
Signal effective range	3km
Flight Control systems	V7-AG
Dynamic System	Hobbywing X9 MAX, tube: 45mm
Spraying System	High Pressure Spray
The battery specification	24S 24000mah
work power	100V
Charging Time	0.5-1hour
Recharge Cycles	300-500 times
Daily efficiency(6hours)	300-500acres
Storage ambient temperature	For less than 3 months: – 20 ° C ~ 45 ° C For more than 3 months: – 22 ° C ~ 28 ° C
Hover time	No-load flight Time: 90minutes (100V)
Standby time of remote control	8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Parameter of the Spraying system
Water Pump: 12S brushless water pump Nozzle: Extension rod Y shape double 1.0 nozzle Extension rod U shape double 1.0 nozzle Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;
Main feature
1. Crossfolding Method ,The arms of the Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the Q630LAgriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q630L has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q630L drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.
