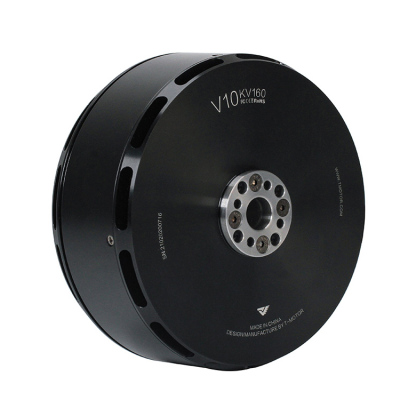

T-motor V10 KV160 12S Large Vtol Brushless Motor

Name: T-motor V10 KV160 12S Large Vtol Brushless Motor
SKU: S16058618839504191787632632
Availability: InStock

€380.00

118 במלאי

מק"ט: S16058618839504191787632632 קטגוריות: All products, Propulsion System, UAV Accessories

Model No./ Kv	V10 KV160	Magnet Temperature	Class C 150℃
Model No./ Kv	V10 KV160	Resistance Grade	Class C 150℃

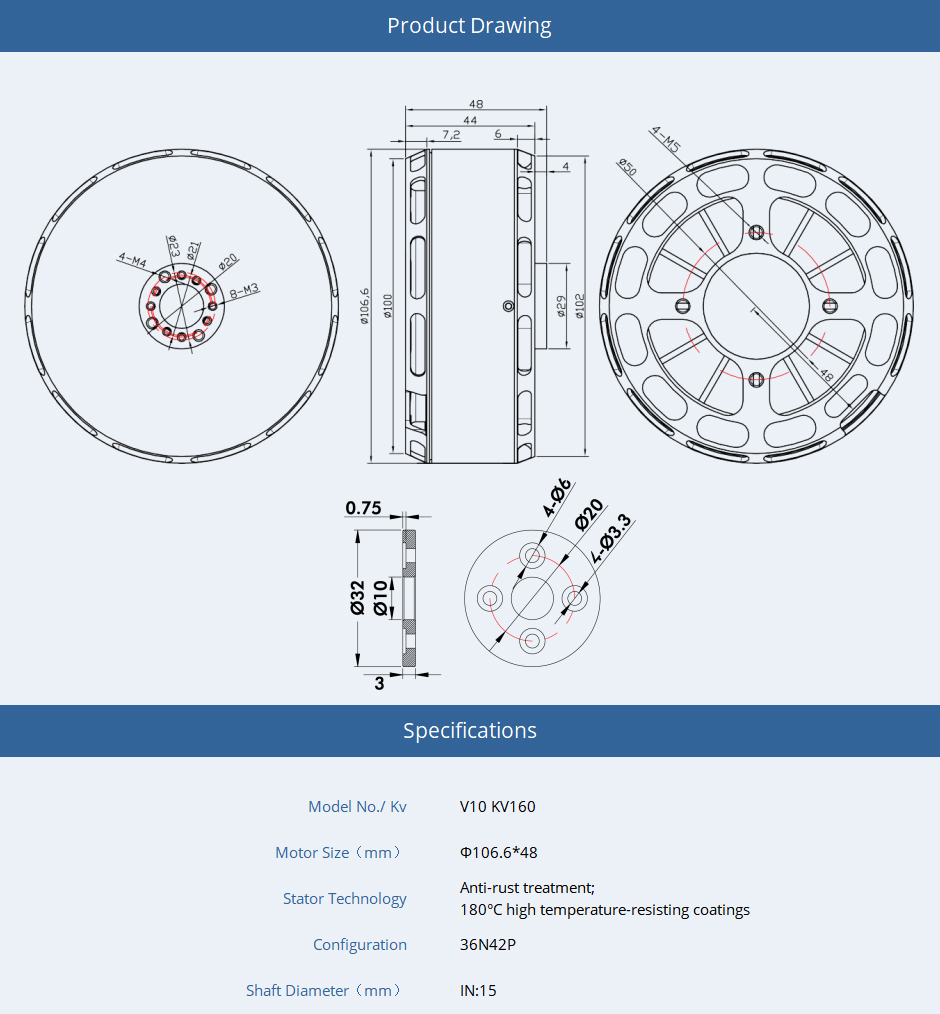

Motor Size(mm)	Φ106.6*48	Lead(mm)	Enameled Wire 150mm
Stator Technology	Anti-rust treatment	Enamelled Wires Temperature	Class C 220℃
Stator Technology	180°C high temperature-resisting coatings	Resistance Grade	Class C 220℃
Configuration	36N42P	Coil Withdraw Voltage	1000V/5s
Shaft Diameter(mm)	IN:15	Rotor Dynamic	≤5mg
Shaft Diameter(mm)	IN:15	Balance Standard	≤5mg
Bearing	Imported 6202ZZ	IP	IP35
KV Value	KV160	Battery (lipo)/Voltage	12S(4.2V/Sl)/42-52V
KV Value	KV160	Recommendation	12S(4.2V/Sl)/42-52V
Idle Current(18V)	4.4A	ESC Recommendation	FLAME 200A 14S
Peak Current(A)	155A/Continuous 180s	Propeller Recommendation	G30*10.5
Max. Power(W)	7000W/Continuous 180s	Motor Weight(g)	865g Weight (incl.cables)
Internal Resistance(mΩ)	12	Package Weight(g)	1230g
