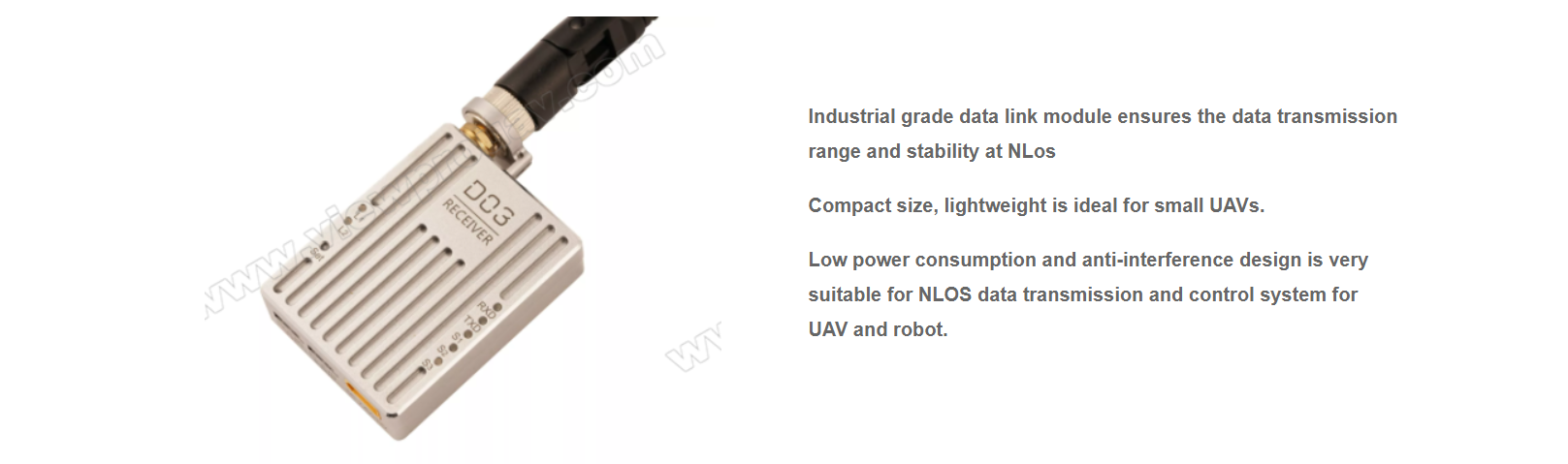

| D03 | ||
| ltem | Parameters | Note |
| Frequency | 902-928MHz | |
| Power | 0.1-1w | adjustable |
| Data rate | 100K/200k | adjustable |
| Baud rate | 1200-115200 | adjustable |
| Ground unit (Transmitter) |
SBuS port*1; USB port*1 | |
| Airborne unit (Receiver) |
SBuS port*1; Serial port*1 | Serial port is full duplex serial port,TTL signal |
| Operation current | 500mA | 12v power input |
| Power input | 7.4-12v | |
| Transmission range | 30km | Depend on the environment |
| Operation temperature | -10°C~+60°C | Humidity 5-95%,RH |
| Dimension | 53mm*40mm*14mm | |
| Weight | 43g | |
| Weight | 1 kg |
|---|
