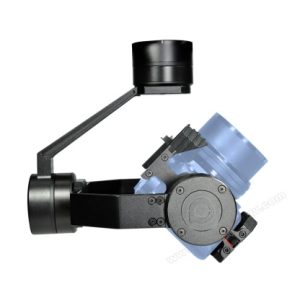

Q30TM 30x Object GPS Coordinate Resolving and LRF Gimbal Camera

Stabilized the Q30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Q30TM uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video.

30x Optical Zoom Camera

Stabilizing the Q30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

Camera Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

GPS Location Resolving

The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military and police.

Multi Output Methods Optional

Q30TM supports both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output default as 720P and record is 1080p. IP output will support 360 degree enless pan.

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional. With Viewpro software Viewlink you can fulfill IP output, TTL control.

Control box signal interfaces:

Compatible with Viewport

Q30TM is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

For more information about Viewport, please check below video instruction:

Application

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

Dimensions



Hardware Parameter
Working voltage	12V
Input voltage	3S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	950~1100mA @ 12V
Idle current	950mA @ 12V
Working environment temp.	-20℃ ~ +60℃
Output	micro HDMI(HD output 1080P 25/30/50/60fps) IP(1080P/720P 25/30fps)
Local-storage	TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080 / 1280*720)
Video storage format	MP4  (1080P/720P 25fps/30fps)
Control method	PWM  / TTL / S.BUS / TCP(IP output) /DJI Pilot
Gimbal Spec
Mechanical Range	Pitch/Tilt: -60°～120°,Roll: ±35°,   Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～90°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
Camera Spec
Imager Sensor	SONY 1/2.8″ “Exmor R” CMOS
Picture quality	Full HD 1080 (1920*1080)
Effective pixel	2.13MP
Lens optical zoom	30x, F=4.3~129mm
Digital zoom	12x (360x with optical zoom)
Min object distance	10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle	1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system	Internal
S/N ratio	more than 50dB
Min illumination	Color 0.01lux@F1.6
Exposure control	Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain	Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed	1/1s to 1/10,000s, 22 steps
Backlight compensation	Yes
Aperture control	16 steps
Defog	Yes
OSD	Yes
Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	32 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel
IR Laser Rangefinder
Laser Wavelengths	1550nm
Optical aperture	Transmit 13mm / Receive17 mm
Resolution	0.75m
Measure ability	3000m  (Typical value 1: · Object size: the target surface is larger than the laser spot area · Reflectivity: 60% · Accuracy rate: 90% · Visibility: 10 km · Environment temperature: 20℃ · Atmospheric pressure: 1013 mbar)
Vehicle target measuring	2300m (Typical value 2: · Object size: 2.3*2.3 m · Emissivity: 30% · Others same as Typcial value 1)
Eye-safe	Class 1【Standard IEC 60825-1, Second Edition (2007-03)】
Laser beam angle (Typical value)	1.0 mrad
Accuracy (Typical value)	± 0.75m
Accuracy (In harsh condition)	± 2m
Measurement frequency	2Hz
Object resolution (Typical value)	30m
Packing Information
N.W.	888g(Viewport Version)
Product meas.	112*129*203.9mm
Accessories	1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls,  4pcs damping boards / Hight quality plastic box with foam cushion
