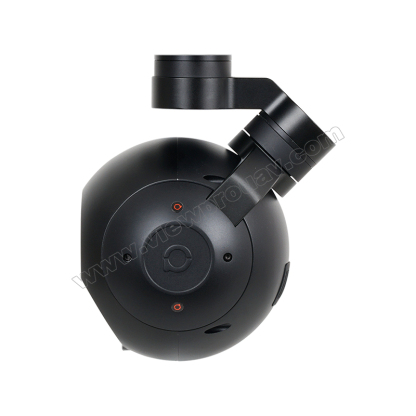

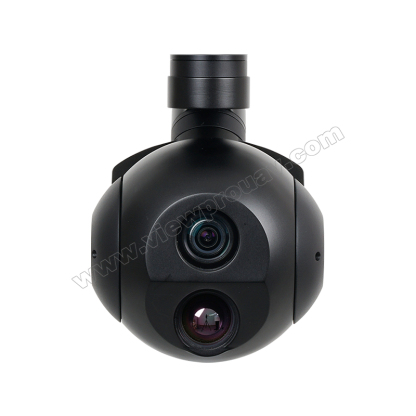

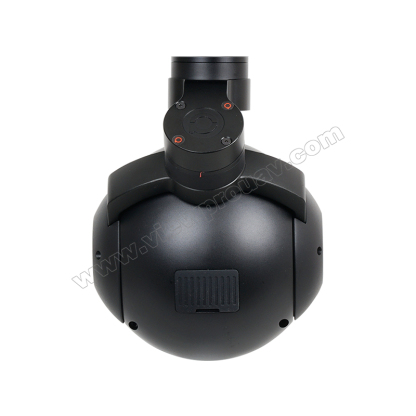

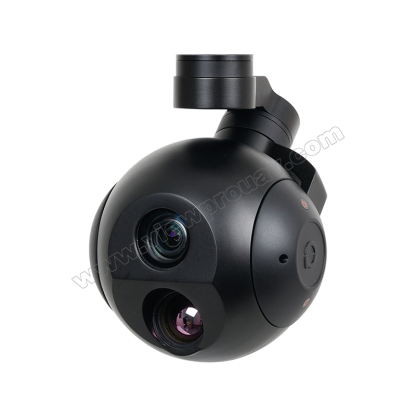

Q20KTIR 4K Camera 20x Continuous Optical Zoom EO-IR Dual-sensor Tracking Camera Payload

Q20KTIR 4K Camera 20x Continuous Optical Zoom EO-IR Dual-sensor Tracking Camera Payload — изображение 2

Q20KTIR 4K Camera 20x Continuous Optical Zoom EO-IR Dual-sensor Tracking Camera Payload — изображение 3

Q20KTIR 4K Camera 20x Continuous Optical Zoom EO-IR Dual-sensor Tracking Camera Payload — изображение 4

Q20KTIR 4K-камера с 20-кратным непрерывным оптическим зумом EO-IR с двумя датчиками для отслеживания полезной нагрузки

Name: Q20KTIR 4K Camera 20x Continuous Optical Zoom EO-IR Dual-sensor Tracking Camera Payload
SKU: S16058762608412844436462632
Availability: InStock

€17,249.00

91 в наличии

Артикул: S16058762608412844436462632 Категории: Все товары, Имбулы и полезная нагрузка

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	740~2500mA @ 16V
Working environment temp.	-20℃ ~ +60℃

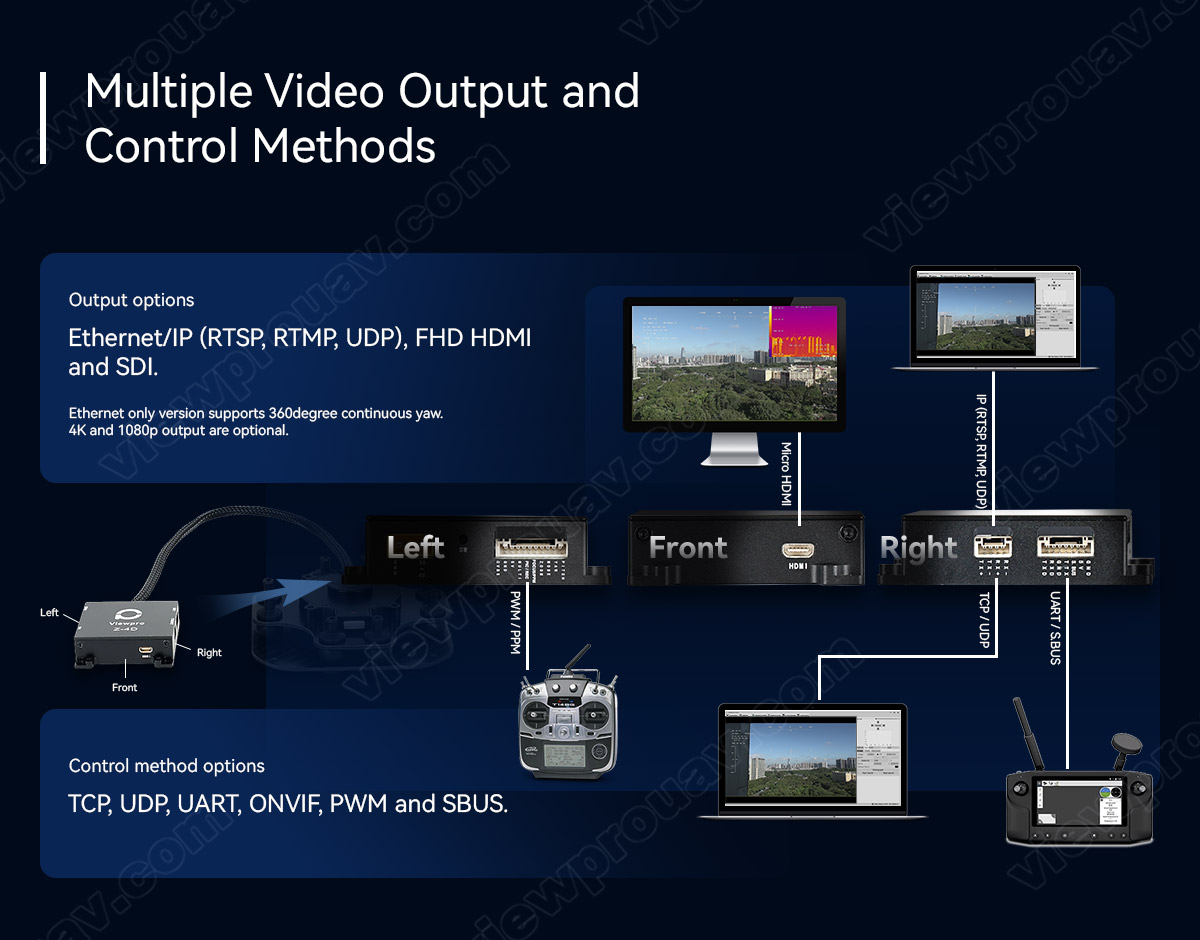

Output	micro HDMI(1080P25/30fps)/IP (RTSP/UDP 4K/1080p 25/30fps )
Local-storage	SD card (Up to 512G,class 10, FAT32 format)
Photo storage format	JPG (4K:3840*2160)
Video storage format	MP4 (1080P / 4K 30fps)

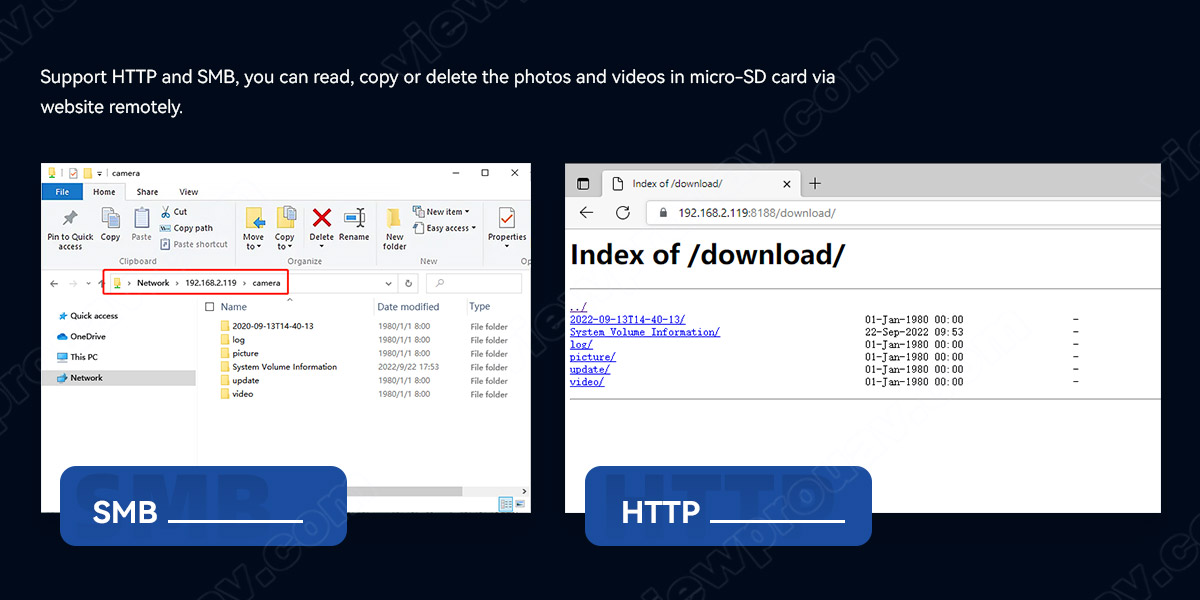

Card reading online	SMB read / HTTP read
Control method	PWM / SBUS / TTL / TCP/UDP(IP output version)
Geotagging	Support, display time and GPS coordinate in picture exif

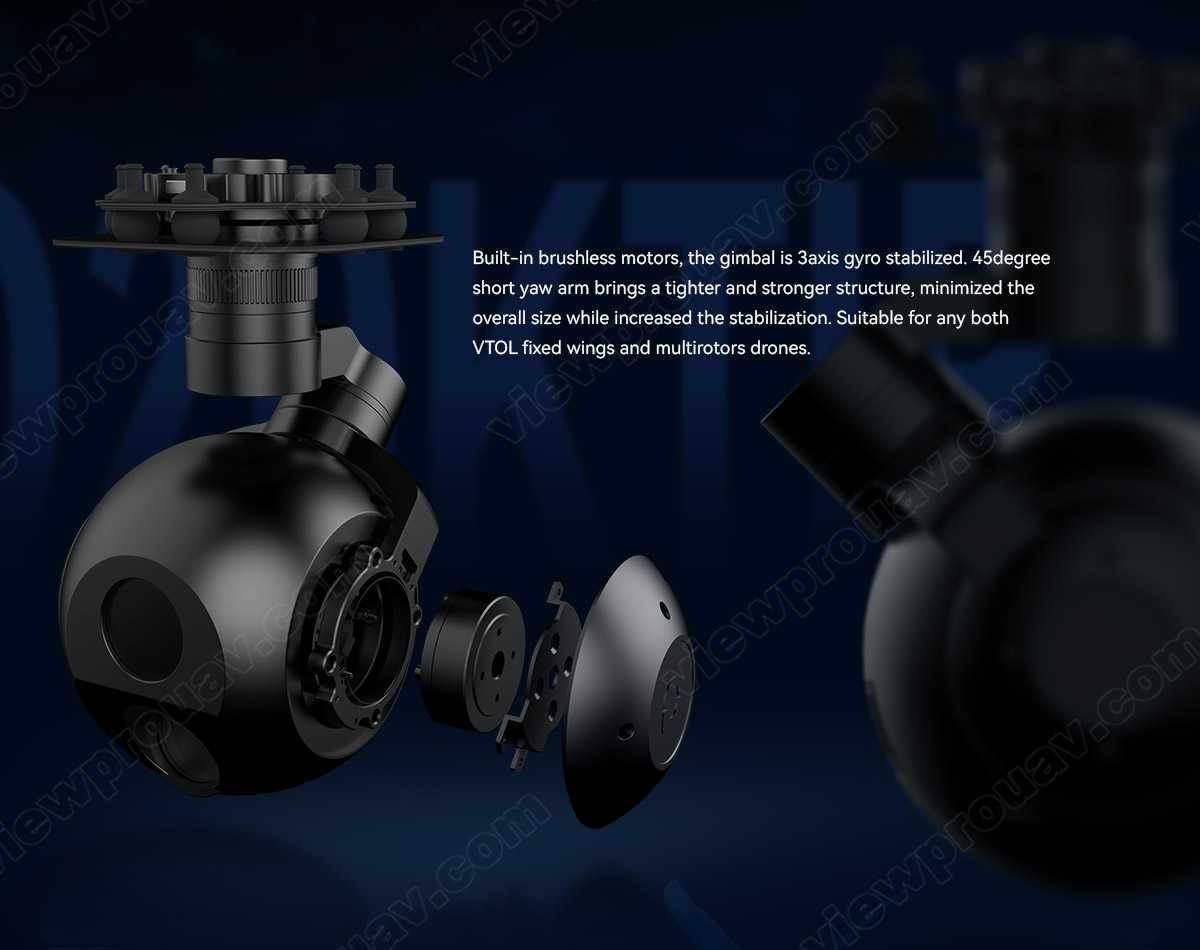

Gimbal Spec

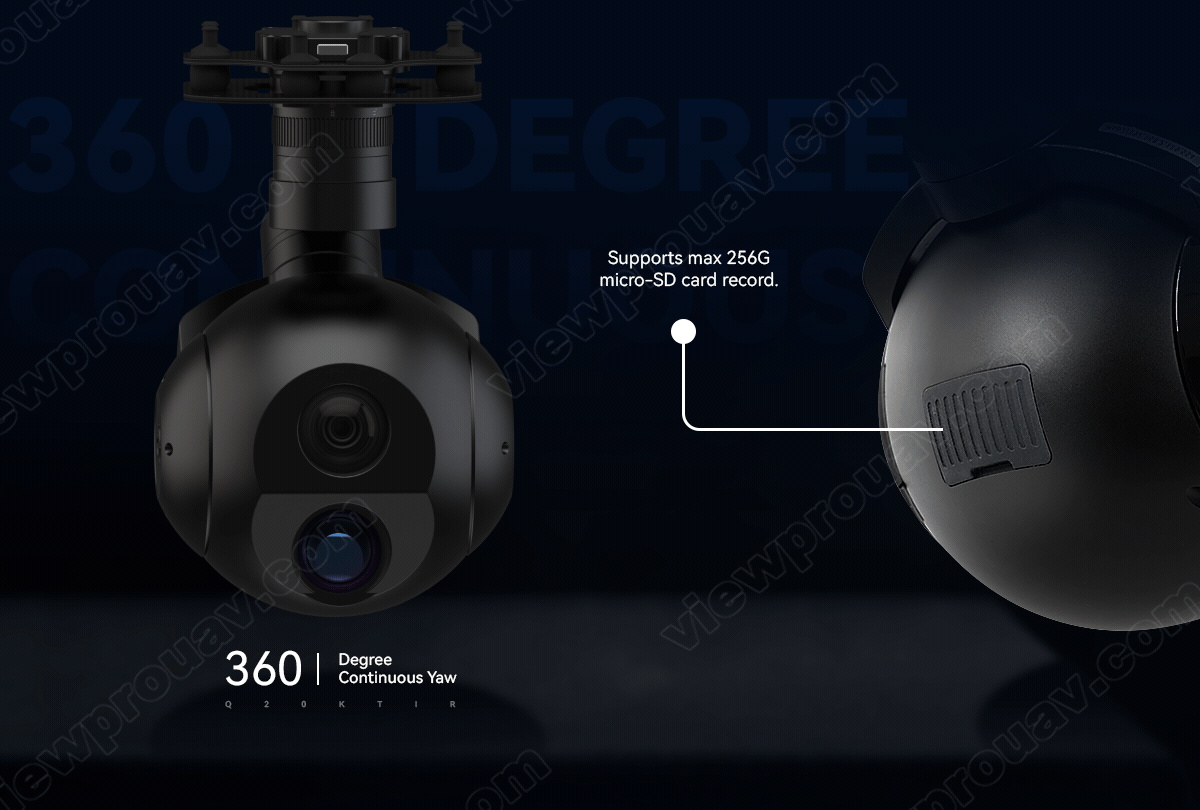

Mechanical Range	Pitch/Tilt: -80°～160°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
EO Camera Spec
Imager Sensor	SONY 1/2.5″ “Exmor R” CMOS
Total pixel	8.51MP

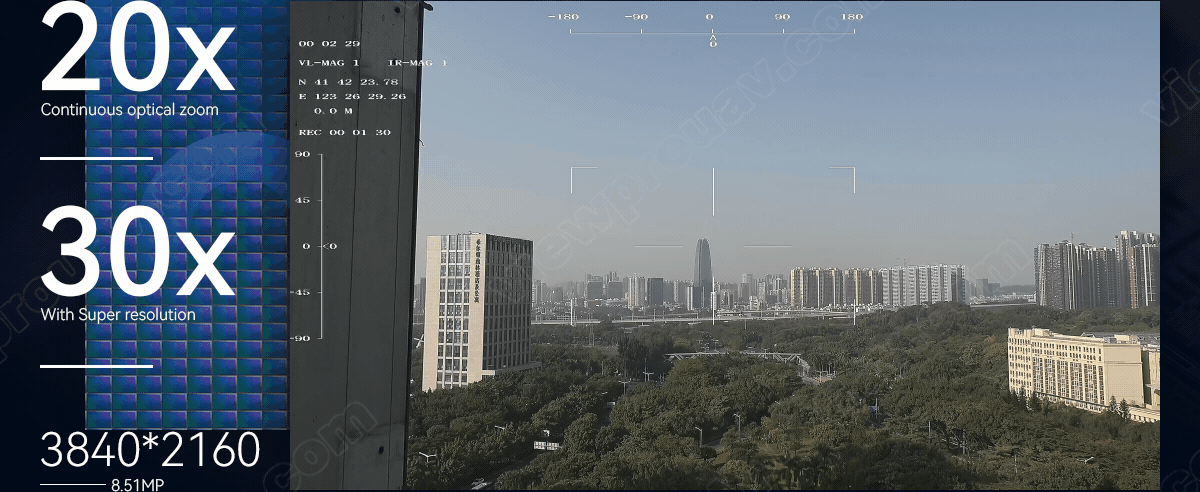

Optical zoom	20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution
Digital zoom	12x (240x with optical zoom)
Min. working distance	80 mm (Wide end), 800 mm (Tele end)
Angle of view ( H )	70.2°(Wide end) ~ 4.1°(Tele end)
Sync system	Internal/External
S/N ratio	50dB
Recommended illumination	100 to 100000 lux
Min illumination	1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on)
Back light compensation	On/Off
Gain	Auto
White balance	Auto/Manual
Electronic shutter speed	1/1 to 1/10000 sec. (22 steps)
Noise reduction	On/Off (level 5 to 1/ Off, 6 steps)
Defog mode	On/Off (Low, Mid, High)
Focus	Auto/Manual/One-time automatic focus
Focus speed	2s
Lens initialization	Built-in
User presetting bit	20 sets
Image rotation	180°, Horizontal/Vertical mirror image
OSD	Yes
IR Thermal Imager Spec
Focus Length	25mm
Horizontal FOV	24.6°
Vertical FOV	18.5°
Diagonal FOV	30.4°
Detective Distance (Man: 1.8×0.5m)	735 meters
Recognize Distance (Man: 1.8×0.5m)	184 meters
Verified Distance (Man: 1.8×0.5m)	92 meters
Detective Distance (Car: 4.2×1.8m)	2255 meters
Recognize Distance (Car: 4.2×1.8m)	564 meters
Verified Distance (Car: 4.2×1.8m)	282 meters
Working mode	Uncooled long wave (8μm~14μm) thermal imager
Detector pixel	640*480
Pixel pitch	17μm
Focusing method	Athermal prime lens
Emissivity correction	0.01~1
NETD	≤50mK (@25℃)
MRTD	≤650mK (@characteristic frequency)
Image enhancement	Auto adjust image brightness and contrast ratio

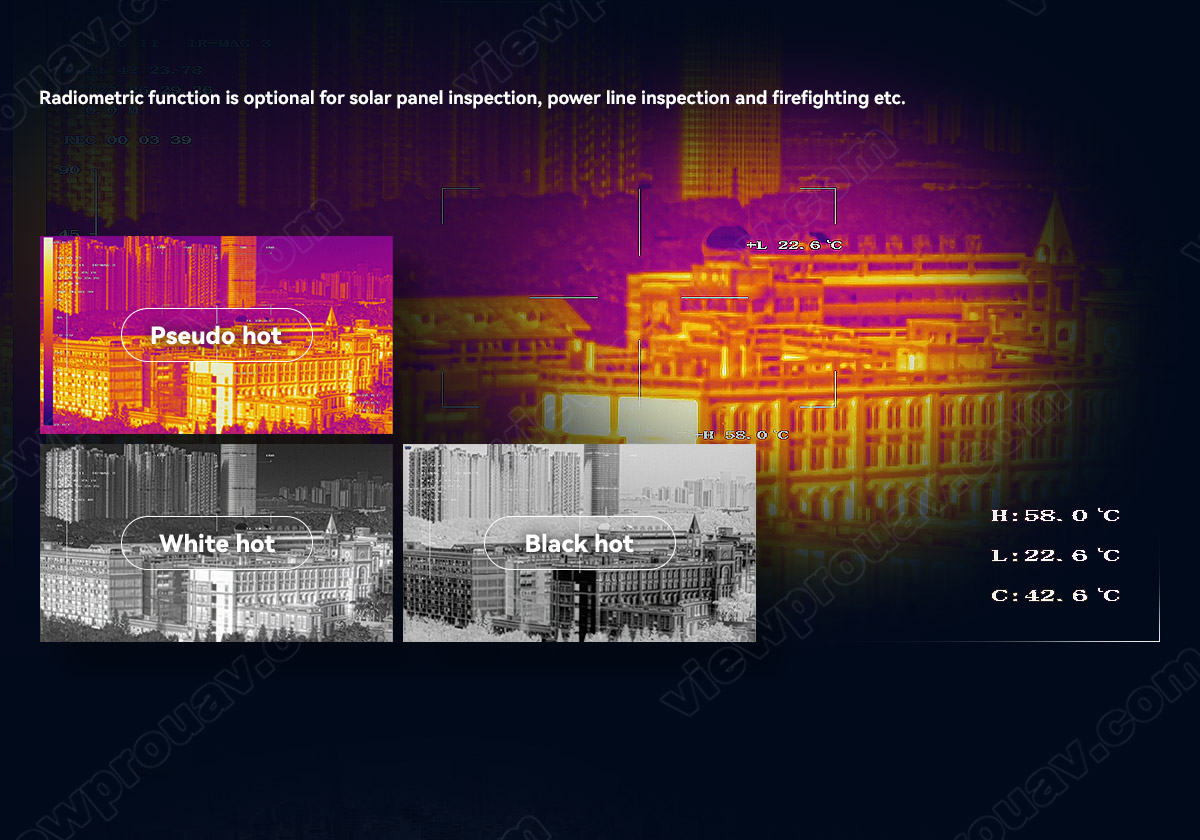

Color palette	White, iron red, pseudo color
Auto Non-uniform correction	Yes (no shutter)
Digital zoom	1x ~ 4x
Sync correct time	Yes
Thermometry type	Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning	0℃~120℃ (For thermometry version only)

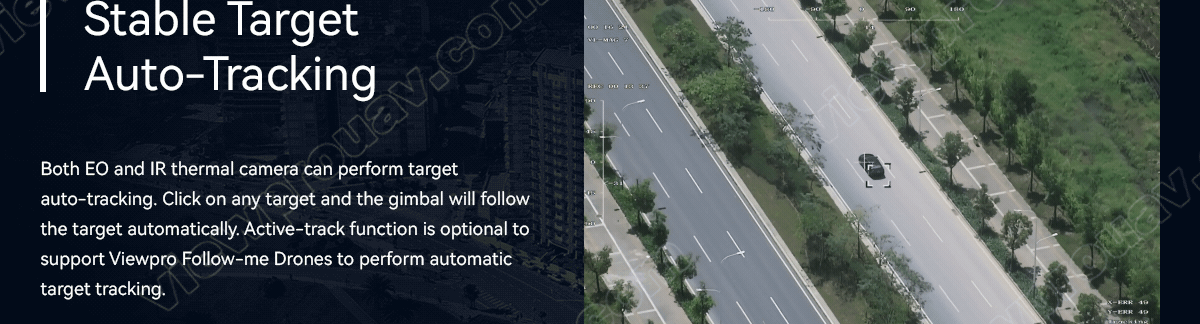

IR / EO Camera Object Tracking
Update rate of deviation pixel	50Hz
Output delay of deviation pixel	5ms
Minimum object contrast	5%
SNR	4
Minimum object size	32*32 pixel
Maximum object size	128*128 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames (4s)
The mean square root values of pulse noise in the object position	< 0.5 pixel

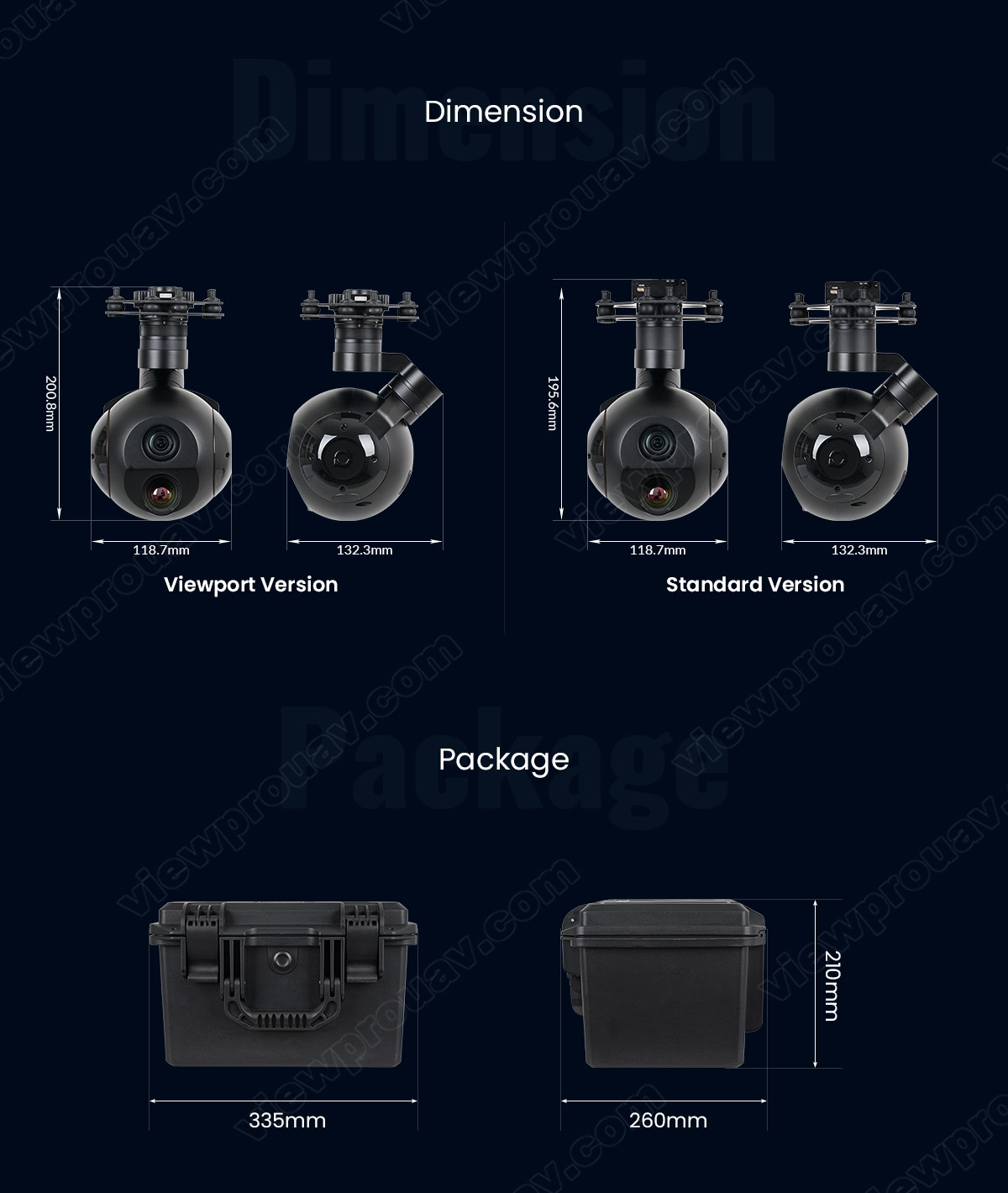

Packing Information
N.W.	1049g(Viewport Version)
Product meas.	132.3118.7195.6mm /132.3118.7200.8mm（Viewport Version）

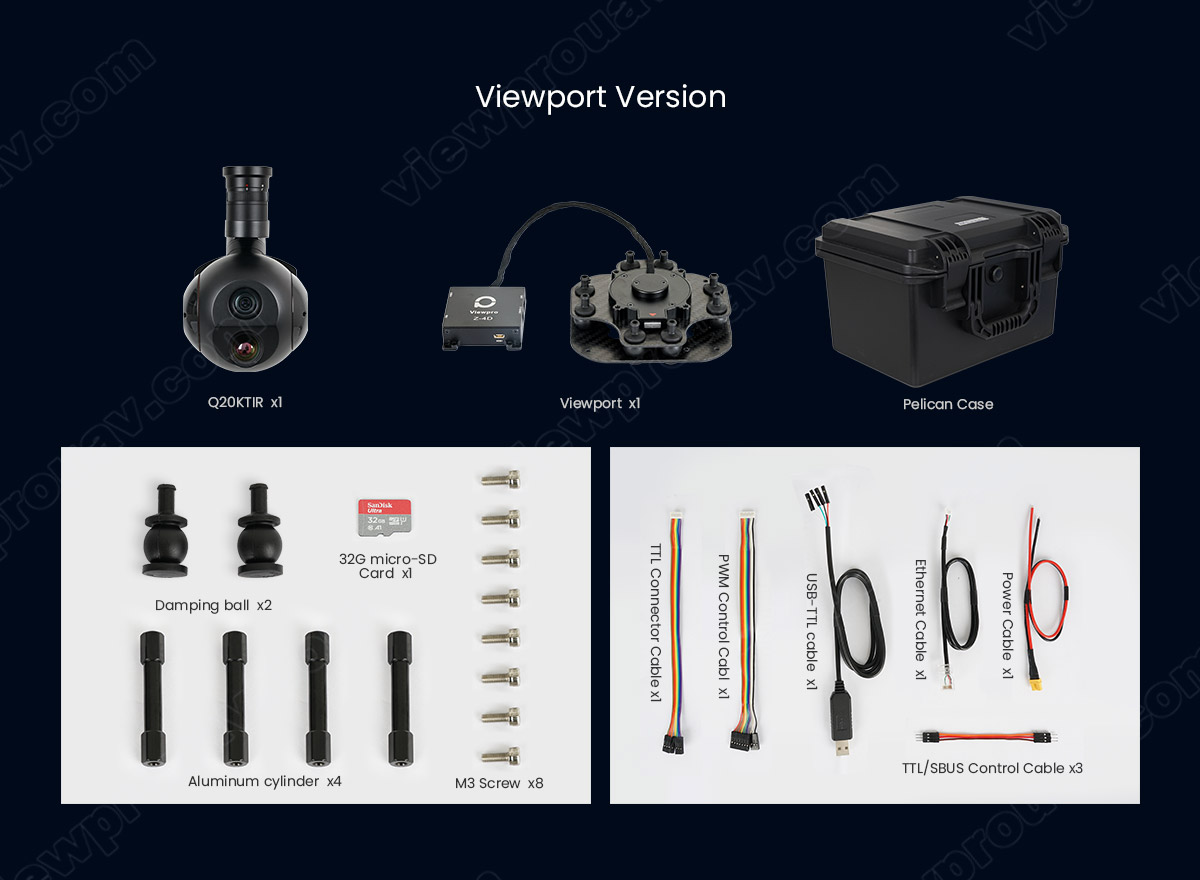

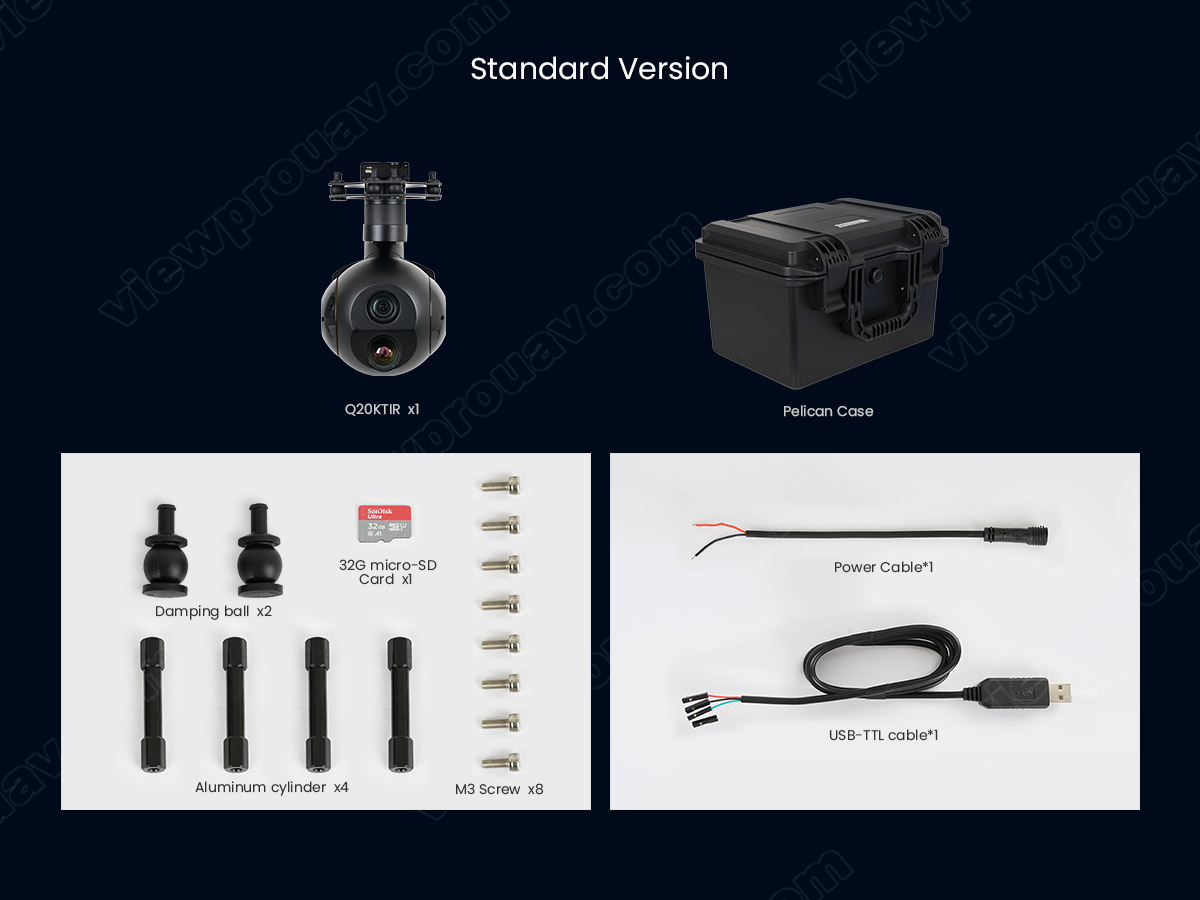

Аксессуары	1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W.	2621g
Package meas.	300250200mm
