| Test Item | Long Shaft KV200 | Weight (Incl. Cable) | 550g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 27mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm | Rated Voltage(Lipo) | 10-12S |
| OUT：10mm | |||
| Idle Current(10V) | 2.4A | Peak Current(180s) | 95A |
| Max. Power(180s) | 4400W/12S | ||
| Test Item | Long Shaft KV220 | Weight (Incl. Cable) | 565g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 24mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm | Rated Voltage(Lipo) | 10-12S |
| OUT：10mm | |||
| Idle Current(10V) | 2.4A | Peak Current(180s) | 100A |
| Max. Power(180s) | 4500W/12S | ||
| Test Item | Long Shaft KV245 | Weight (Incl. Cable) | 555g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 20mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm | Rated Voltage(Lipo) | 8-10S |
| OUT：10mm | |||
| Idle Current(10V) | 2.4A | Peak Current(180s) | 110A |
| Max. Power(180s) | 5000W/12S | ||
| Test Item | Long Shaft KV270 | Weight (Incl. Cable) | 560g |
| Motor Dimensions | Φ81.4*57.9mm | Internal Resistance | 17mΩ |
| Lead | Enameled Wire 100mm | Configuration | 24N22P |
| Shaft Diameter | IN：10mm | Rated Voltage(Lipo) | 8S |
| OUT：10mm | |||
| Idle Current(10V) | 2.4A | Peak Current(180s) | 120A |
| Max. Power(180s) | 4800W/10S |
| Вес | 1 кг |
|---|

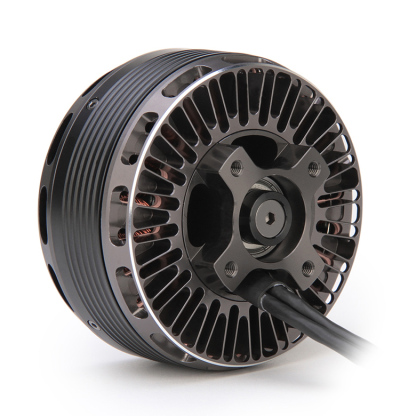

Будьте первым, кто оставил отзыв на “T-motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor”
