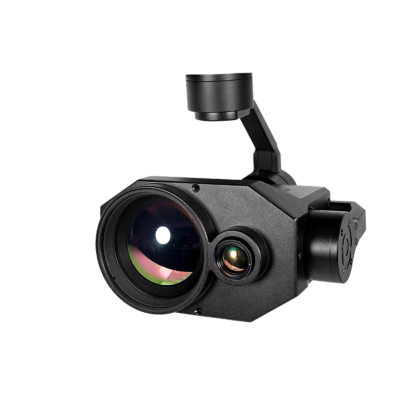

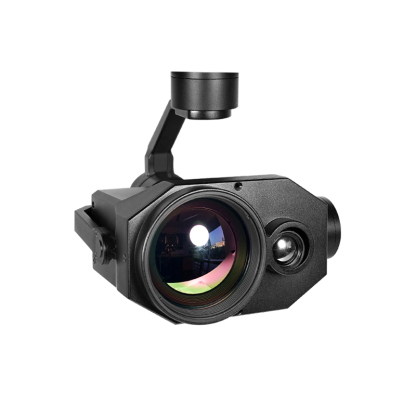

Professional 3-axis High-precise FOC Program

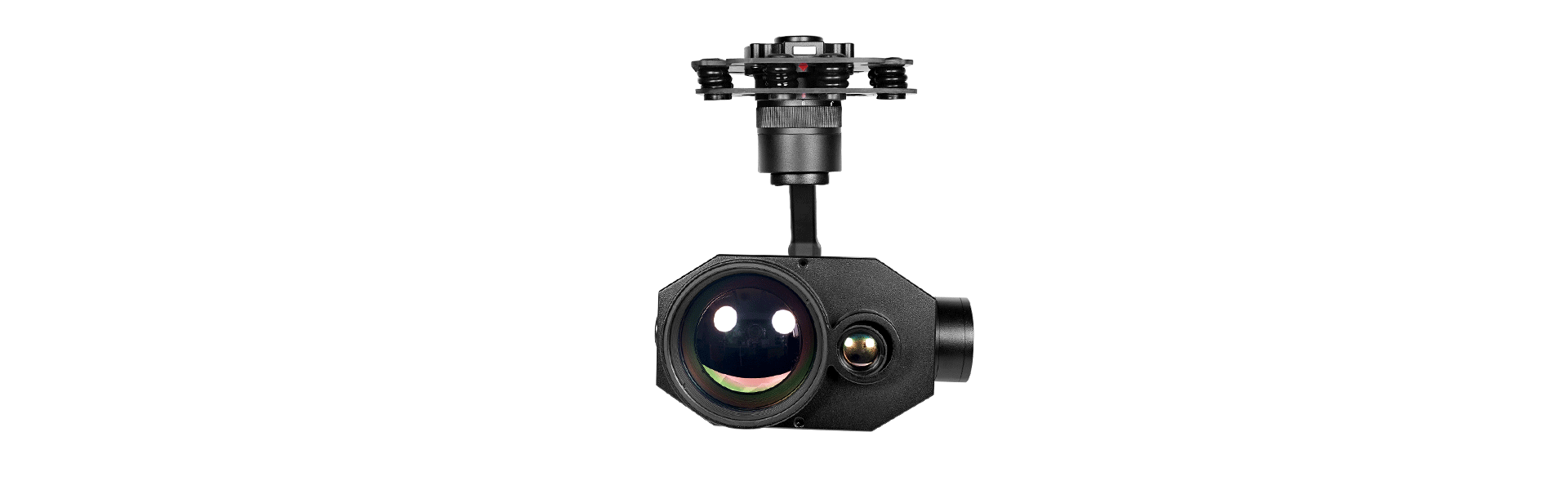

The ZIR1352T features thermal imager with 13mm & 52mm lens, supports 640*480 detector pixels, 4x optical zoom and 1x ~ 4x digital zoom. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV.

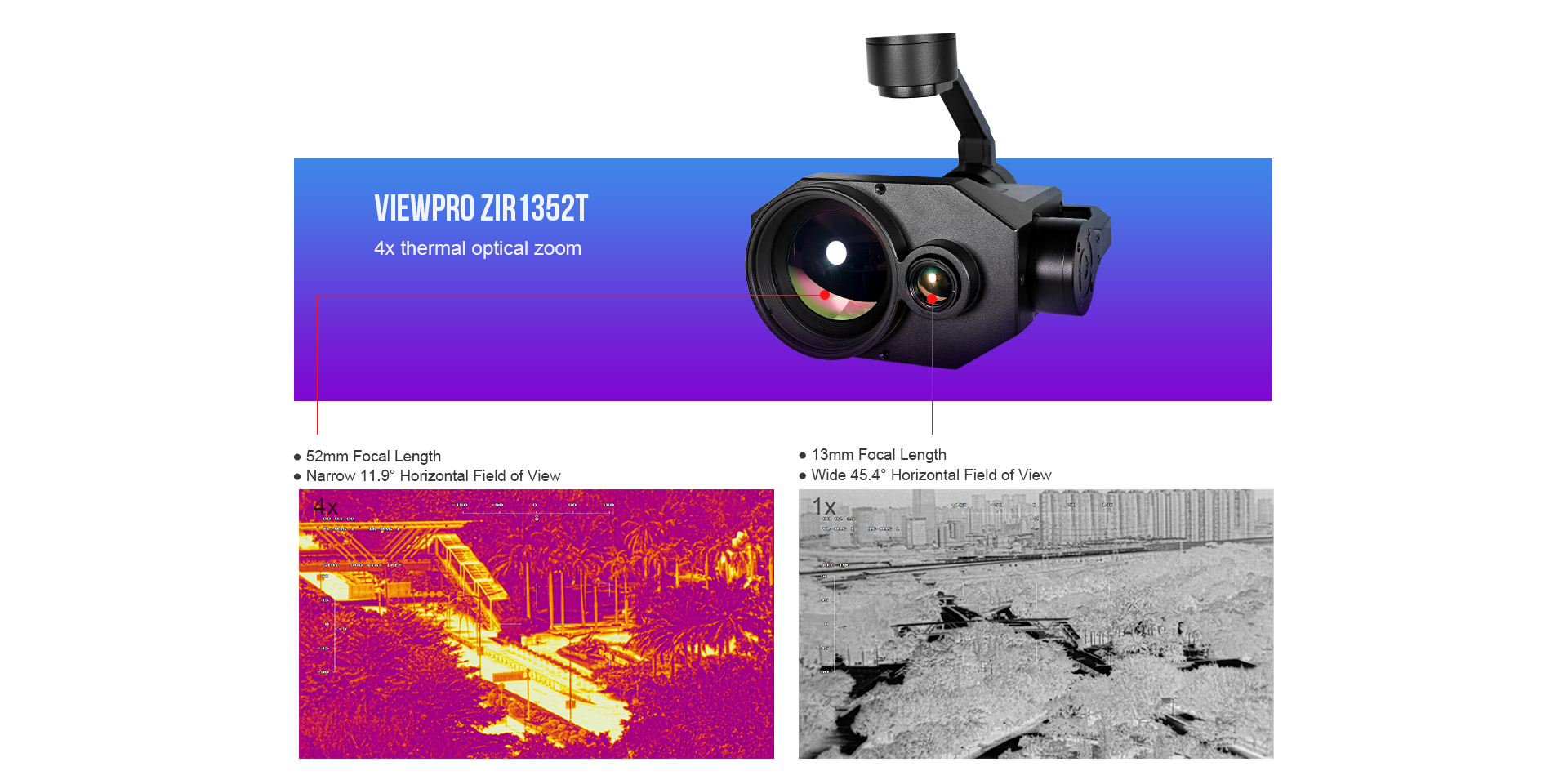

High Resolution Dual Thermal Zooming Camera
Integrated French ULIS high-precision uncooled long wave (8μm ~14μm) thermal image sensor. With 4x optical zoom capabilities that IR sensor sitches from 13mm to 52mm, provides a wide 45.4° field of view for maximum situational awareness and a narrow 11.9° field of view to get the most thermal pixels on your target. The ZIR1352T allows drone pilots from the public safety and indstrial inspection sectors to gain field of FOV flexibility for improved image detailsand magnification to assess situations and and make critical decisions.

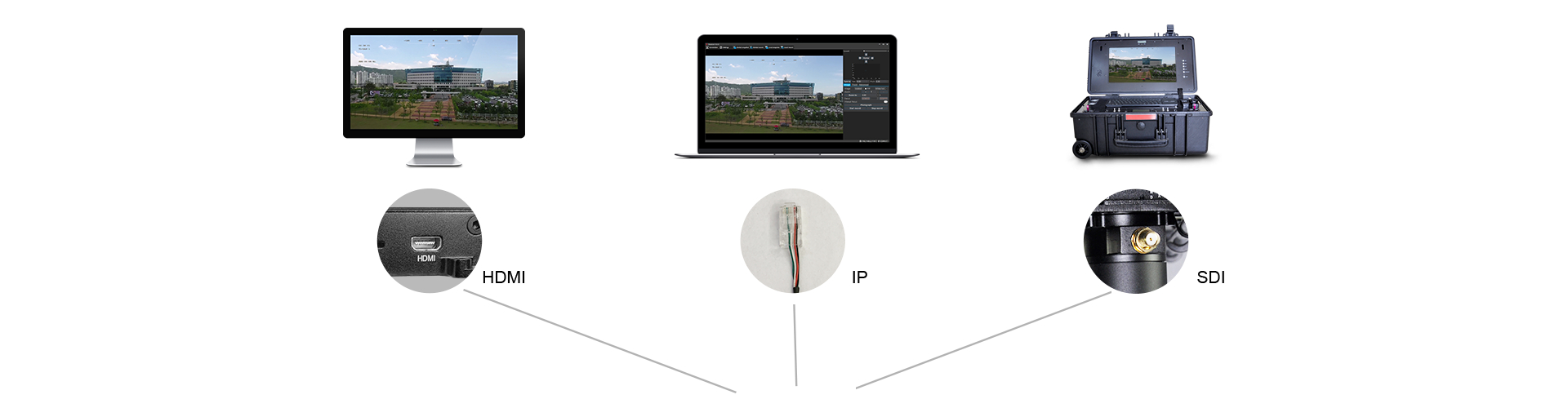

Multi Output Methods Optional
ZIR1352T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.

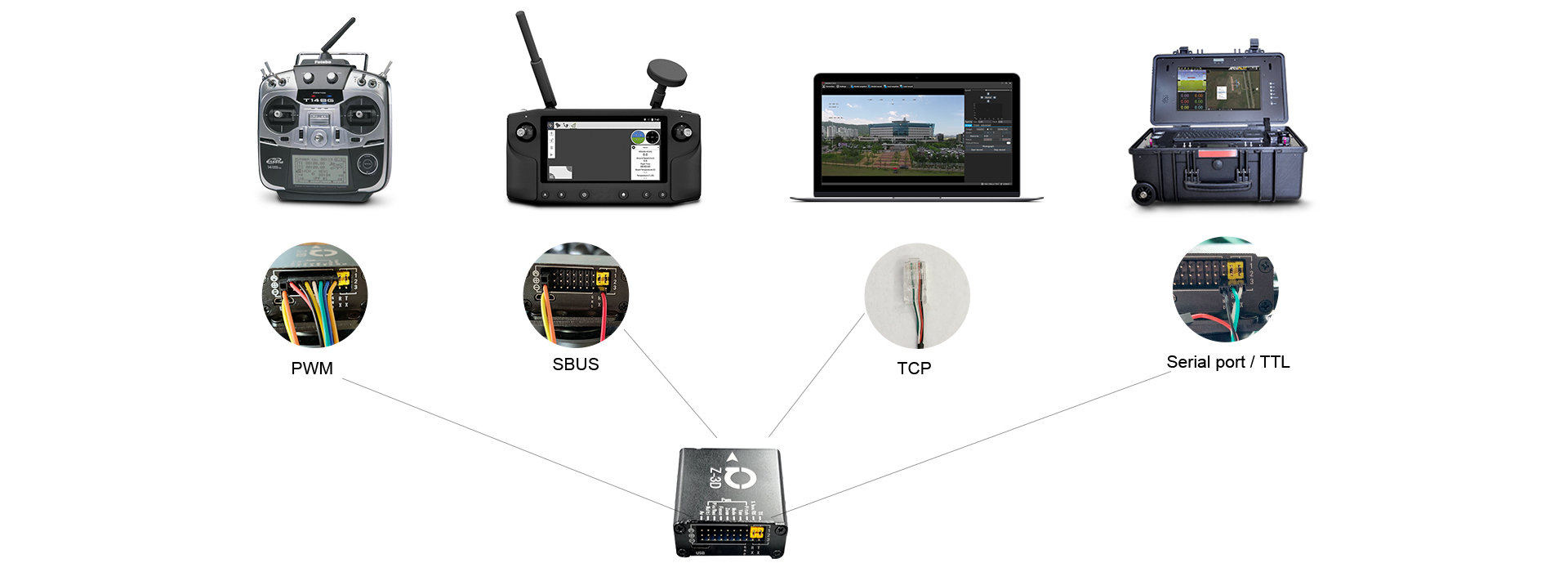

Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

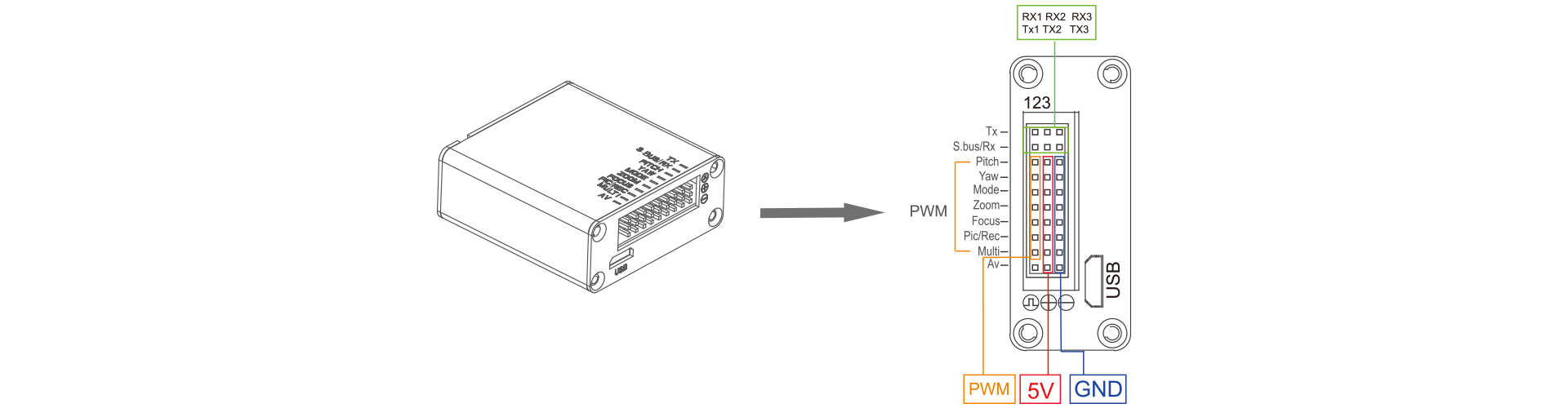

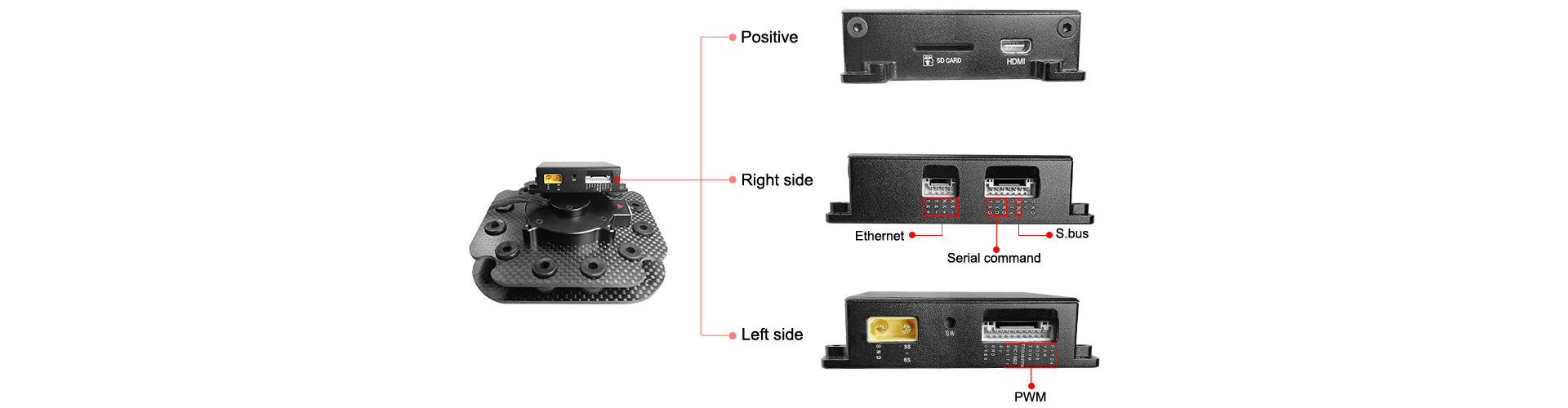

Control box signal interfaces:
Compatible with Viewport
ZIR1352T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

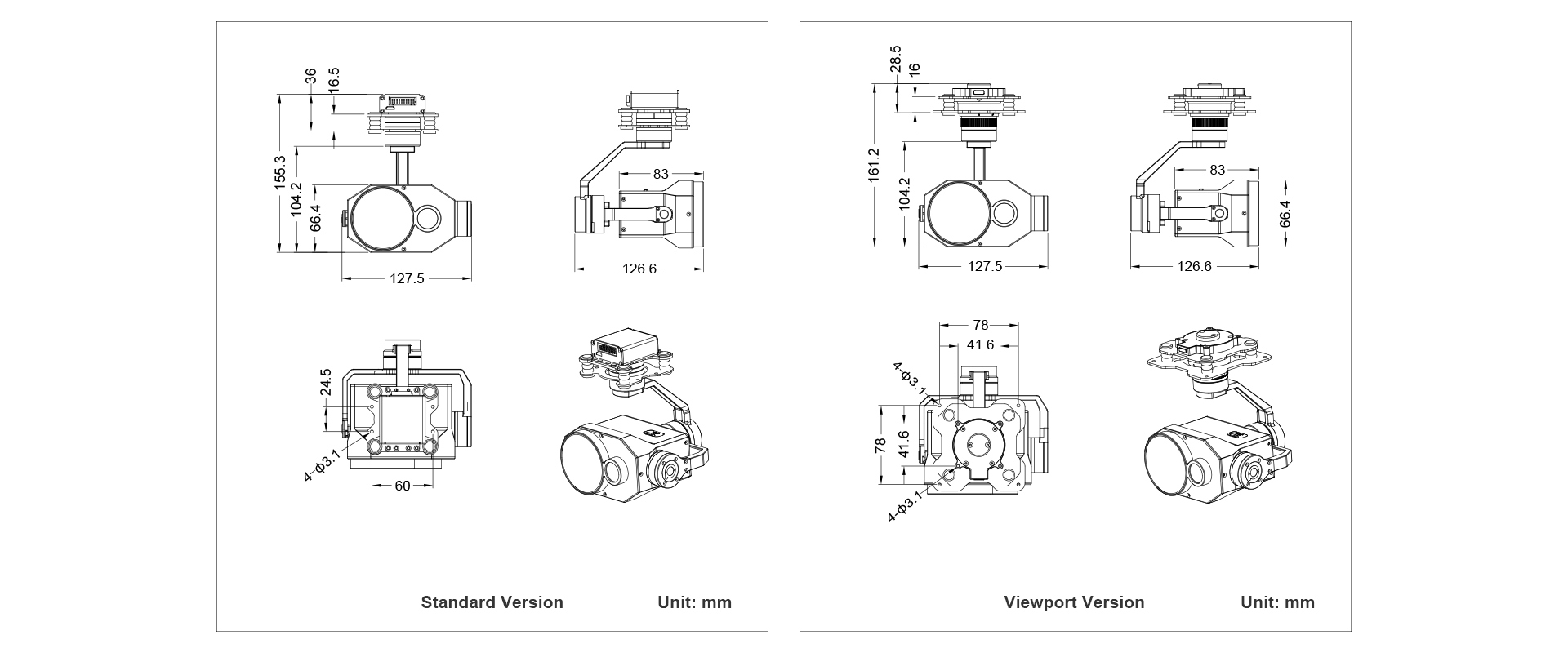

Dimensions
| Parámetros de hardware | |
| Tensión de trabajo | 12V ~ 16V |
| Tensión de entrada | 3S ~ 4S |
| Corriente dinámica | 650mA~850mA @ 12V |
| Idle current | 540mA @ 12V |
| Entorno de trabajo temp. | -20℃ ~ +60℃ |
| Salida | micro HDMI(HD output 1080P 50fps) / IP (1080P/720P) |
| Almacenamiento local | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Método de control | PWM / TTL / S.BUS / TCP (IP output) |
| Especificaciones del cardán | |
| Gama mecánica | Pitch/Tilt: -70～120°, Roll: ±55°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Alcance controlable | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Ángulo de vibración | Pitch/Roll: ±0,02°, Yaw：±0,02°. |
| Una tecla para centrar | √ |
| Thermal Imager Spec | |
| Lens size | 52mm |
| FOV horizontal | 11.9° |
| FOV vertical | 9° |
| FOV diagonal | 14.9° |
| Distancia de detección (Hombre: 1,8×0,5 m) | 1529 meters |
| Reconocer distancia (Hombre: 1,8×0,5 m) | 382 meters |
| Distancia verificada (Hombre: 1,8×0,5 m) | 191 meters |
| Distancia de detección (coche: 4,2×1,8 m) | 4690 meters |
| Reconocer la distancia (Coche: 4,2×1,8 m) | 1173 meters |
| Distancia verificada (coche: 4,2×1,8 m) | 586 meters |
| Modo de trabajo | Uncooled long wave (8μm~14μm) thermal imager |
| Píxel detector | 640*480 |
| Pixel size | 17μm |
| Método de enfoque | Objetivo de focal fija atérmico |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Paleta de colores | Blanco, rojo hierro, pseudocolor |
| Auto Non-uniform correction | Yes (no shutter) |
| Zoom digital | 1x ~ 4x |
| Sincronizar la hora correcta | Sí |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (for thermometry verson only) |
| Thermal Imager Spec | |
| Lens size | 13mm |
| FOV horizontal | 45.4° |
| FOV vertical | 34.8° |
| FOV diagonal | 55.2° |
| Distancia de detección (Hombre: 1,8×0,5 m) | 382 meters |
| Reconocer distancia (Hombre: 1,8×0,5 m) | 96 meters |
| Distancia verificada (Hombre: 1,8×0,5 m) | 48 meters |
| Distancia de detección (coche: 4,2×1,8 m) | 1173 meters |
| Reconocer la distancia (Coche: 4,2×1,8 m) | 293 meters |
| Distancia verificada (coche: 4,2×1,8 m) | 147 meters |
| Modo de trabajo | Uncooled long wave (8μm~14μm) thermal imager |
| Píxel detector | 640*480 |
| Pixel size | 17μm |
| Método de enfoque | Objetivo de focal fija atérmico |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Paleta de colores | Blanco, rojo hierro, pseudocolor |
| Auto Non-uniform correction | Yes (no shutter) |
| Zoom digital | 1x ~ 4x |
| Sincronizar la hora correcta | Sí |
| Thermal Imager Object Tracking | |
| Tasa de actualización del píxel de desviación | 50Hz |
| Retardo de salida del píxel de desviación | 5ms |
| Tamaño mínimo del objeto | 32*32 pixel |
| Tamaño máximo del objeto | 128*128 pixel |
| Velocidad de seguimiento | 32 pixel/frame |
| Tiempo de memoria del objeto | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Información sobre el embalaje | |
| N.O. | 687g |
| Producto meas. | 127.5*127.4*156.5mm |
| Peso | 1 kg |
|---|
