Distance is the soul of Beauty
A HD Video Transmission System, using PineSync technology based on S1 processor. lt is an easy-to-use device for sending HDMl video and audio signals, at an affordable pricing.
Smooth signal transmission over long distances
Signal transmission range up to 20KM; With minimum latency 110ms; Two HDMI inputs; Supports 720p 30fps, 1080p 30fps / 60fps video format
Powerful image processing capabilities
Eight-core high-performance processor S1 built-in in the air unit and controller,ensures stronger and faster data computing capabilities. Built-in powerful video image analysis GPU, 4-core Mali-T860.
QGC and Solex app support
The customized Solex and QGC Ground Control Station (GCS) software has perfect MAVlink support for Ardupilot and PX4.You can choose the GCS according to your own needs, making the system flexible to your needs.
OEM support features
Herelink supports the installation of AN OEM image, allowing you to customize your Settings to change, including boot animation changes, system configuration changes,Android application changes, nd Android property changes. Please con tact our sales teanivia your currentre- seller for OEM support.
Over The Air (OTA)updates support
Herelink can update OTA via WIFI connection in the application. Compared with downloading the whole firmware package, OTA upgrade only needs to download part of the update package, which is faster to download, install and upgrade, and greatly improves the efficiency of use.

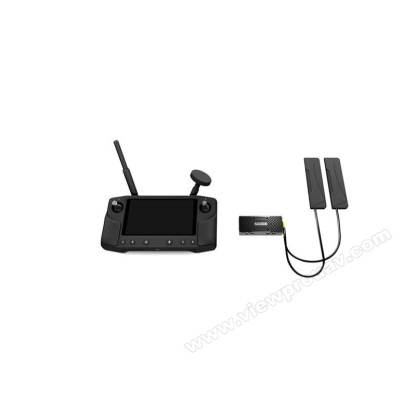

Multiple Units in One
Integrates data link unit, remote control link and video display unit into a single device. Making the complex device system integrated and miniaturized.
| Hardware specification | |
| Processor | SoC – Pinecone S1 |
| AP: 4 x large core, Cortex A53, 2.2GHz | |
| 4 x small core, Cortex A53, 1.4GHz | |
| GPU: 4 core, Mali-T860 | |
| SDR: A7 + DSP | |
| Storage | Air Unit LPDDR3 1GB |
| Controller LPDDR3 2GB | |
| Air Unit/Controller | EMMC 4GB |
| Transmission Range | FCC 20km CE/SRRC 12km |
| Latency | Min 110ms |
| Resolution | 720p@30fps, 1080p@30/60fps |
| Frequency Band | 2.4GHz ISM |
| Receive sensitivity | -99dBm@20MHz BW |
| Interference recovery | < 1s |

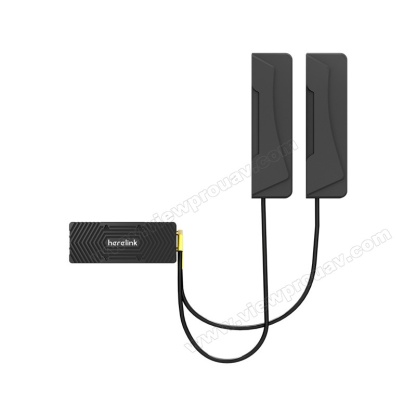

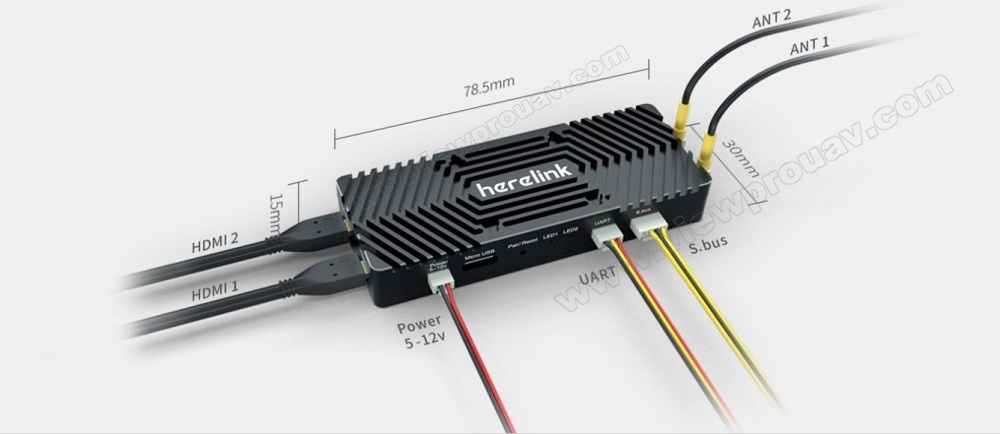

| Air Unit | |
| Housing | Aluminum |
| Weight | 95g (w. antennas) |
| Dimension | 78.5x30x15mm (w/o antennas) |
| Signal Bandwidth | 20MHz/10MHz |
| Power Consumption | < 4W |
| HDMI 1 | Micro HDMI, for video input (preferred) |
| HDMI 2 | Micro HDMI, for video input |
| Power | Recommended supply voltage ~7V, minimum 6V, maximum 12V and avoid sharing BEC with servos |
| Micro USB | For debug or upgrade, support OTG |
| Pair/Reset | For pairing and reset |
| LED 1, 2 | To indicate pairing status and transmission status |
| UART | 3.3V / 5V UART |
| S.bus | Two 3.3V RC output |
| ANT 1, 2 | MMCX, for signal transmission and communication |

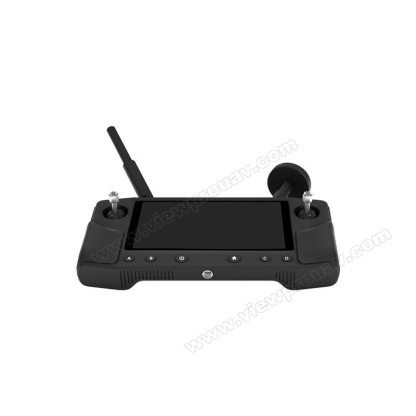

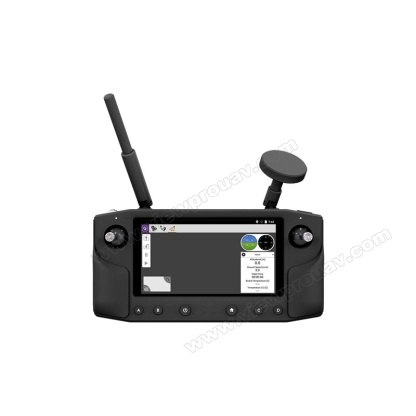

| Controller | |
| Housing | Plastic |
| Weight | 516g (w. antennas) |
| Dimension | 217×106.5x31mm (w/o antennas, joysticks ) |
| Screen | 5.46 inch, 1080P, 16 million colors, |
| capacitive touch screen | |
| Audio | 1 x built-in speaker, 2 x built-in microphone |
| Remote control | 2 x joystick, 1 x wheel, |
| 6 x button (w. blacklight), 1 x upper right button | |
| Communication | WIFI/GPS 2.4GHz on the controller side |
| LED | 2 x tricolor LED (left, right) |
| Interface | 1 x MicroUSB, 1 x Micro SD card slot |
| (extendable to max. 64GB) | |
| Antenna | 1 x detachable directional (5dBi), |
| 1 x detachable omni-directional (2dBi), | |
| built-in WIFI antenna, built-in GPS antenna, | |
| external GPS antenna interface | |
| Power | 4950mAh built-in Lipo Battery |
| Charging | Support micro USB 5V 2A charging |
| Power consumption | < 4W average (With transmission on, medium screen brightness, WIFI off, GPS off) |
| משקל | 1 ק"ג |
|---|
