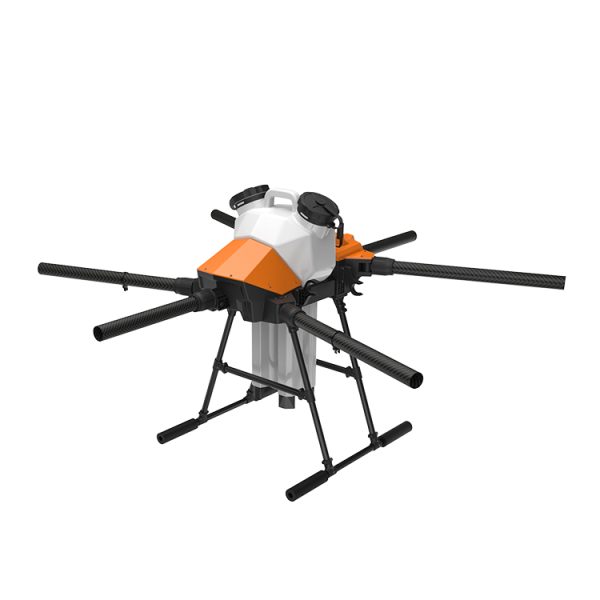

FDAD-Q616L 16L Crop Spraying Drones sprayer drone for Agriculture frame KIT
Crop Spraying Drones FDAD-Q616L 16L agriculture crop spraying drones. 10L agriculture crop spraying drone is always the most popular. FDAD-Q616L 16L agriculture drone is specially designed for the most popular 16L capacity. The effective capacity of the drone is 16L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q616L 16L series drones.
Specification
| wheelbase | 1721MM | ||||
| Unfolded size | 2301*2241*813MM | ||||
| Folded size | 1026*581*813MM | ||||
| Tank capacity | 16L | ||||
| Frame weight | 7.35KGS | ||||
| Frame and spraying weight | 16.3KGS | ||||
| Frame and motor sets weight | 14.85KGS | ||||
| No-load takeoff weight | 22.6KGS(including 1*16000mAh battery 4.7KGS) | ||||
| Full load Take-off weight | 38.6KGS | ||||
| Nozzle | Ceramic sprinkler head imported from Germany/China | ||||
| Number os nozzles | 4pcs | ||||
| Flight Speed | 3-8 Meter /Sec | ||||
| Spray width | 3-6 Meter /Sec | ||||
| Max spraying flow | 1.5-3 kg/min. （Max. 4kg/min.） | ||||
| spaying efficiency | 1.5-3 Acres/Min. | ||||
| Water Pump Pressure | 0.48mPa | ||||
| Delivery package size | Aluminum Box 1100*600*850mm 45kg | ||||
| Transport volume weight | 110.2kg | ||||
| The fuselage material | Carbon fiber composite | ||||
| Max flight time (no load) | 22min | ||||
| Max flight time (full load) | 4min | ||||
| The tank volume | 16L | ||||
| Working temperature work | -15°C~45°C | ||||
| Signal effective range | 5km | ||||
| Flight Control systems | Boying | ||||
| Dynamic System | Hobbywing X8, tube: 40mm | ||||
| Spraying System | High Pressure Spray | ||||
| The battery specification | 12S 22000mah*1PCS | ||||
| work power | 44.4V(12S) | ||||
| Charging Time | 0.5-1hour | ||||
| Recharge Cycles | 300-500 times | ||||
| Daily efficiency(6hours) | 300-500acres | ||||
| Storage ambient temperature | For less than 3 months: – 20 ° C ~ 45 ° C For more than 3 months: – 22 ° C ~ 28 ° C |
||||
| Hover time | No-load flight Time: 22.5minutes (42.8V) Full-Load flight time: 4 minutes (42.8V) Manual Mode Flying time: 5 minutes 16 second A-B Point Flying Time: 8 minutes 39 second |
||||
| Standby time of remote control | 8hrs | ||||
| Function | |||||
| 1. Android ground station, easy to use / PC ground station, full voice broadcast | |||||
| 2. Router Setting support, Fully Auto Flight operation with A,B Point operation. | |||||
| 3. One Button take-off and landing, More safety and time saving. | |||||
| 4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery. | |||||
| 5. Liquid Detection, Break Point record setting. | |||||
| 6. Battery Detection, Low Battery return and Record point setting available. | |||||
| 7. Terrain following Radar, Stable Altitude setting | |||||
| 8. Vibration Protection, Lost Contact protective, Tank empty detect | |||||
| 9. Motor Sequance Detection and Direction detection Function. | |||||
| 10. Dual Pump Mode | |||||
| 11. The night vision function | |||||
| 12. Three anti – one lamp | |||||
| Parameter of the Spraying system | |||||
| Water Pump: 12S brushless water pump Nozzle: Extension rod Y shape double 1.0 nozzle Extension rod U shape double 1.0 nozzle Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent; |
|||||
| Main feature | |||||
| 1. Crossfolding Method ,The arms of the Q616L are folded in a staggered way, minisize the folding size, more convenient for transportation. | |||||
| 2. Integrated Fuselage Frame The fuselage frame of the Q616L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q616L has good durability and reliability. | |||||
| 3. Quick Release Battery & Tank The water tank of the Q616L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q616L drone. It is convenient to replace the tank and battery. | |||||
| 4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water. | |||||
| 5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone. | |||||
Please note this is frame KIT.
Main Features:

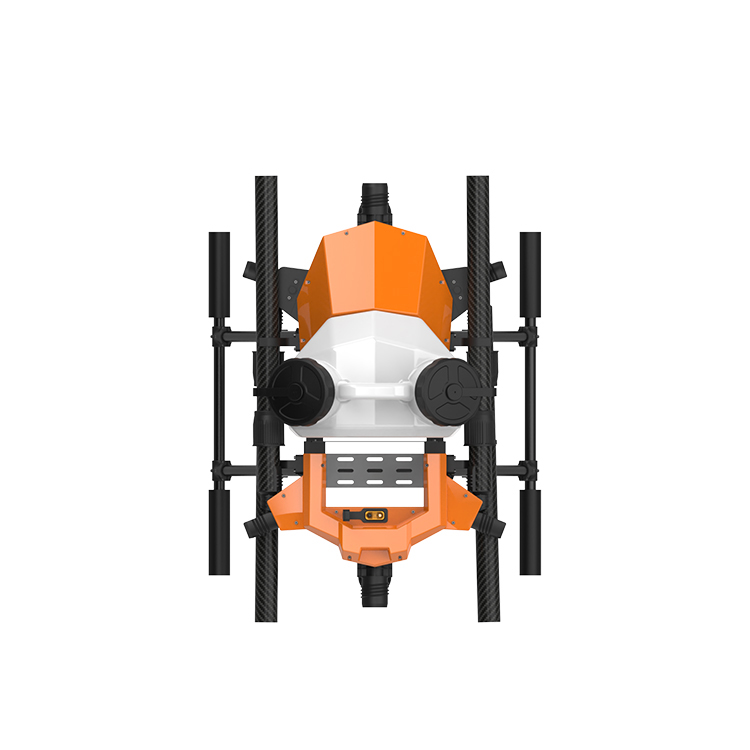

Crossfolding Method
The arms of the FDAD-Q410L are folded in a staggered way, minisize the folding size, more convenient for transportation.
Integrated Fuselage Frame
The fuselage frame of the FDAD-Q410L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-Q410L has good durability and reliability.
Quick Release Battery & Tank
The water tank of the FDAD-Q410L adopts plug-in design, and the battery can be placed vertically in the battery compartment. The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-Q410L drone. It is convenient to replace the tank and battery.
Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
Great Expandability
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.
| Weight | 120 kg |
|---|
