radio link data link and video link remote controller VD32 for UAV

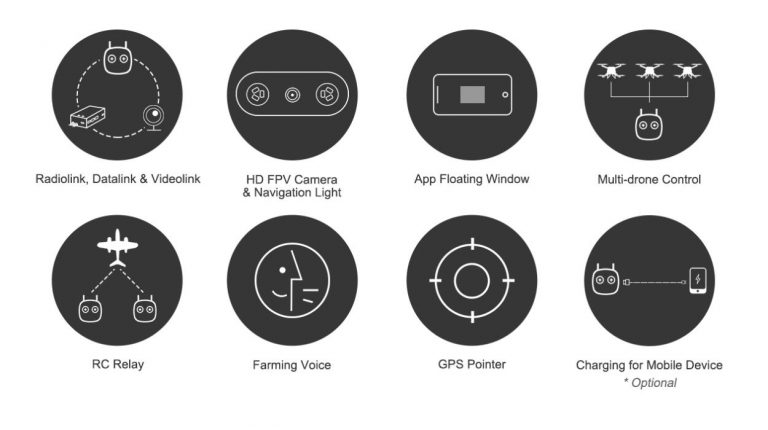

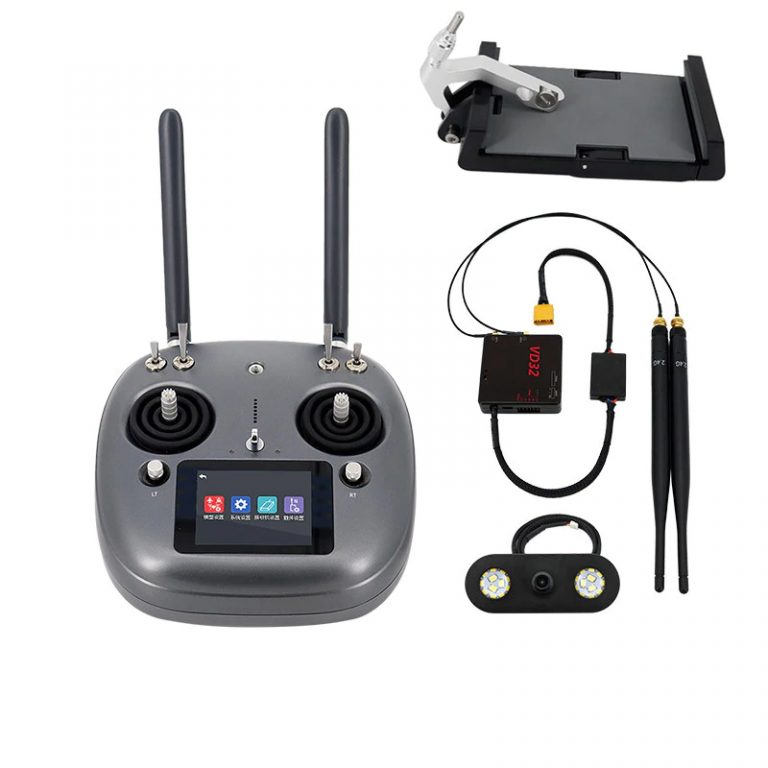

radio link VD32 is a 3-in-1 UAV intelligent data link system integrating the latest high-definition digital VTX, long-distance remote control and DATALINK. It integrates one control multi-drone, remote control relay, ESC calibration, voice broadcast, one-button configuration parameters. Such as improving work efficiency, reducing the practical functions of complex setup steps, adjusting parameters, and using is simpler. Support night agricultural plant protection operations One-click configuration In the past, for different flight control, the user must set the remote control parameters by themselves, the latest one-click configuration function, only need to select the corresponding flight control model, you can unlock the takeoff (currently supports JIYI, TopXgun, BOYING, PIX, APM, EFY, Woozoom)
PERFORMANCE
| Transmission Range | 2 km (effective operation range with videolink) |
| Frequency Band | 2.400-2.483 GHz |
| Channels | 26 physical channels, 16 transmitting channels |
| Applicable Models | Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics |
| Compatible Flight Controllers | TOPXGUN T1-A WOOZOOM THEONE-A – A EFY FINIX200M JIYI K3-A BOYING PALADIN V2 CHIAO MATRIX CFUAS C1-A PIX APM |

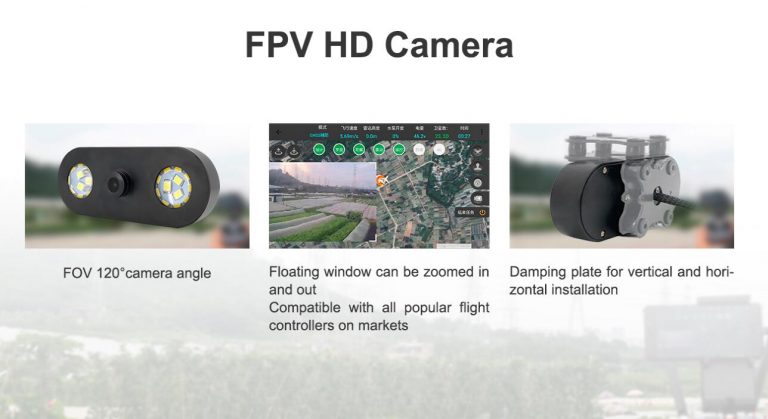

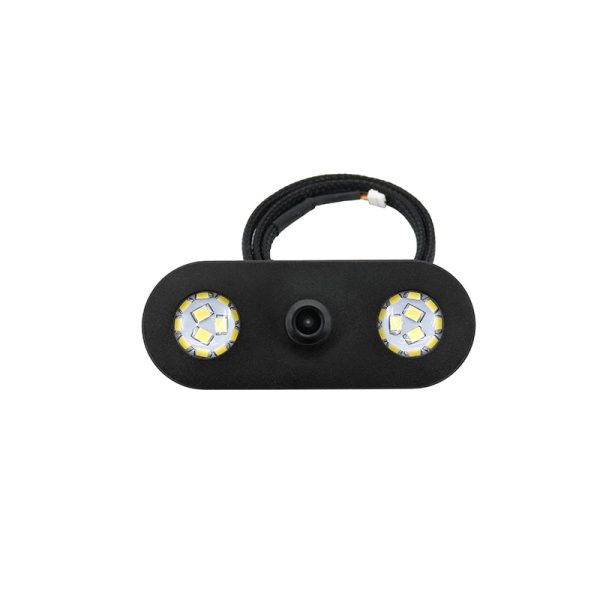

FPV CAMERA & NAVIGATION LIGHT
| Video Resolution | Max: 480p@24fps |
| Camera Angle | FOV 120° |
| Dimension (Videolink Module) | 106*25*41 mm |
| Item Weight | 108 g |

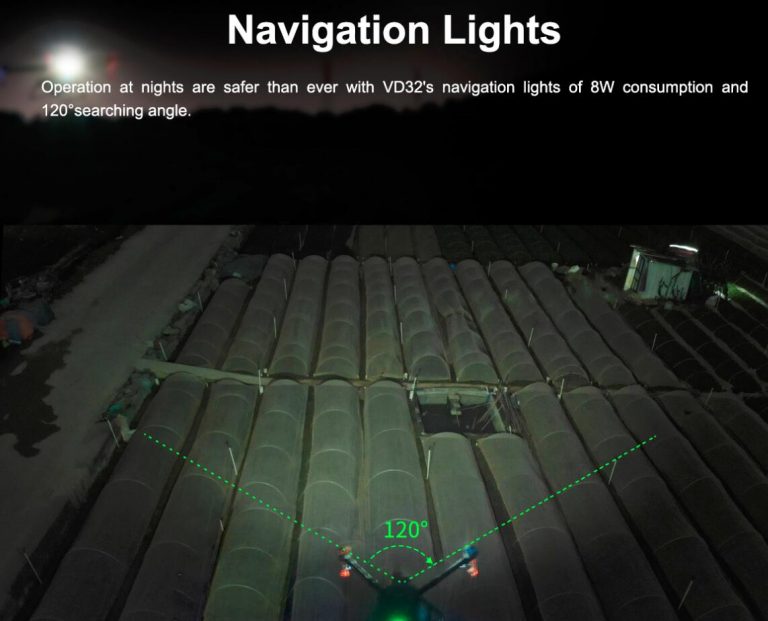

| Power Consumption (Navigation Light) | 8 W |
| Luminous Flux | 120-140lm/W |
| LED Type | Translucent |
| LED Searching Angle | 120° |
| Operation Temperature | -10℃ to 55℃ |

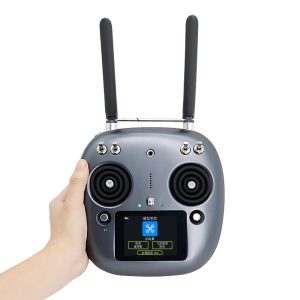

GROUND STATION (TRANSMITTER)
| Videolink Output Port | USB |
| Datalink Output Port | USB, Bluetooth, WIFI(optional) |
| Touchscreen Language Display | Chinese/English |
| Dimensions | 194.5 x 172.5 x 114 mm |
| Item Weight | 610 g |
| Operating Temperature | 0℃ ~ 55℃ |
| Battery | Built-in 8000 mAh Li-Po 1S 3.7V |
| Charging Port | Micro-USB (5V/2A) |
SKY STATION (RECEIVER)
| Signal Output | 16 channels of S-Bus, 5 channels of PWM |
| Ports for Flight Controllers | UART, CAN(optional) |
| Dimensions (without antennas) | 59 x 59 x 16 mm |
| Weight (without antennas) | 50 g |
| Antenna Gain | 5 dBi |
| Working Voltage | 15 – 50 V |
| Telemetry Voltage | 15 – 50 V |
| Operating Temperature | -10℃ ~ 55℃ |
VD32_Quick_Guide_En
| Weight | 1.5 kg |
|---|
