Product Parameter |
|
|
Omnidirectional antenna |
|
|
Performance Parameter |
|
|
Operational frequency |
1428-1448MHz |
|
Operational bandwidths |
20MHz |
|
Gain |
10dBi |
|
VSWR |
≤1.6 |
|
Input impedance |
50Ω |
|
Beam-width |
Horizontal 360°, Vertical 11.5° |
|
Polarization mode |
Vertical |
|
Maximum power |
50W |
|
Connector type |
NK female |
|
Structure Parameter |
|
|
Antenna shell material |
Glass fiber |
|
Color |
Gray |
|
Dimension |
Φ18.5*1200mm |
|
Weight |
0.683kg |
|
Operation temperature |
-55℃~75℃ |
|
Wind resistance |
60（m/s） |
|
Maximum diameter |
Φ52mm |
|

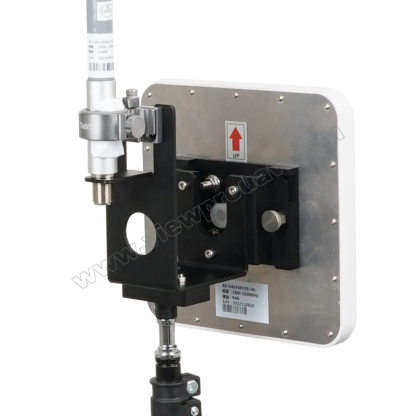

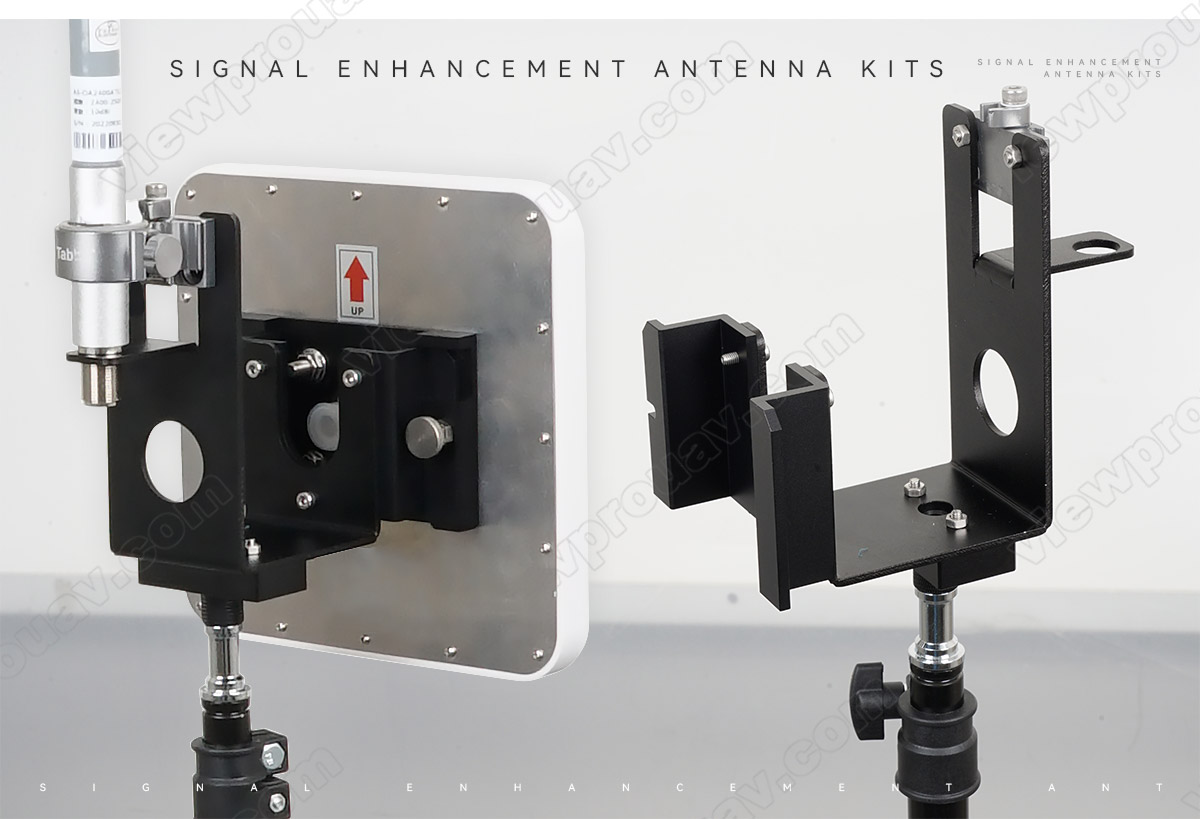

Directional panel antenna |
|
|
Frequency range |
1427-1447MHz |
|
Bandwidths |
20MHz |
|
Gain |
9dBi |
|
Beam-width |
Horizontal 64°, Vertical 54° |
|
VSWR |
≤1.5 |
|
F/B ratio |
≥20dB |
|
Input impedance |
50Ω |
|
Polarization mode |
Vertical |
|
Maximum power |
200W |
|
Connector type |
N female |
|
Antenna size |
260*260*42mm |
|
Antenna weight |
0.80kg |
|
Colour |
White |
|
Material |
UPVC |
|
Maximum diameter |
75mm |
|
Operation temperature |
-55℃~+75℃ |
|

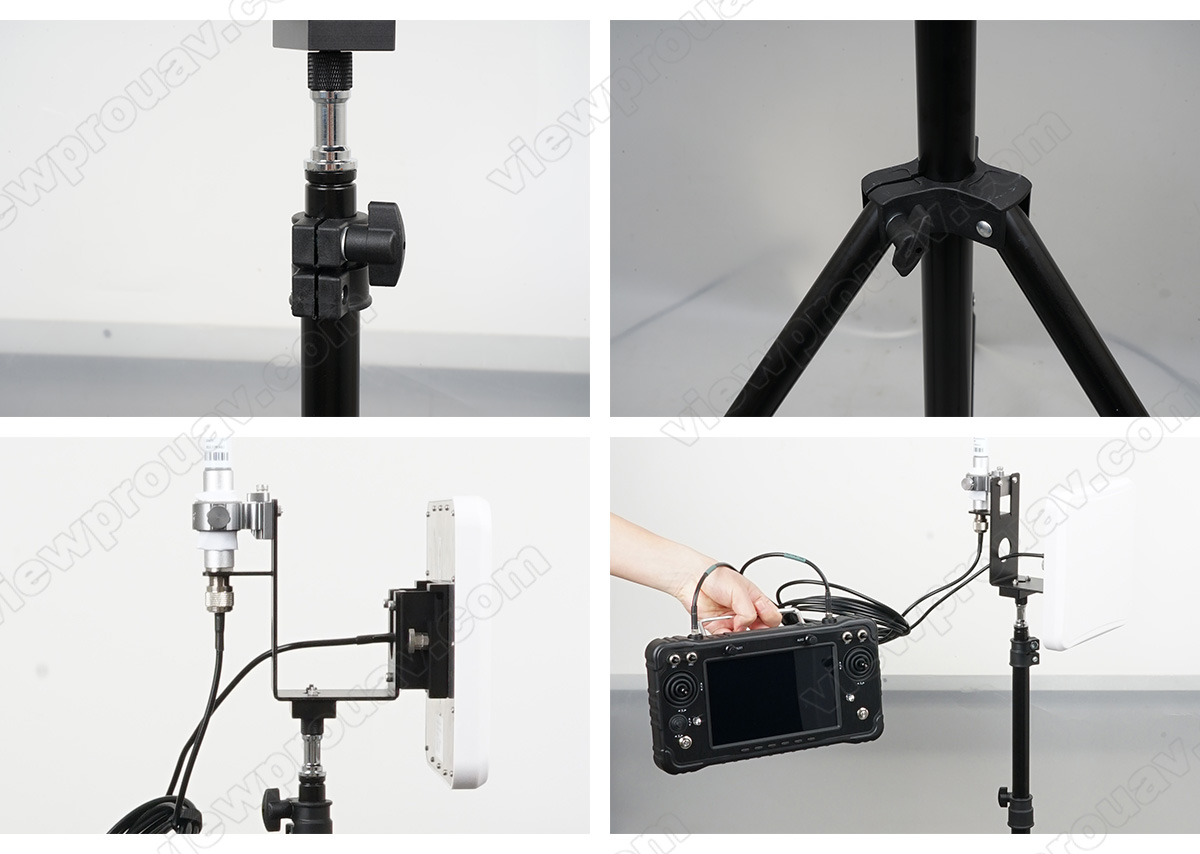

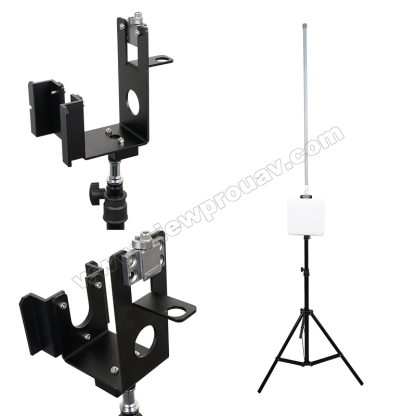

Tripod length |
2m |
| Weight | 1 kg |
|---|
