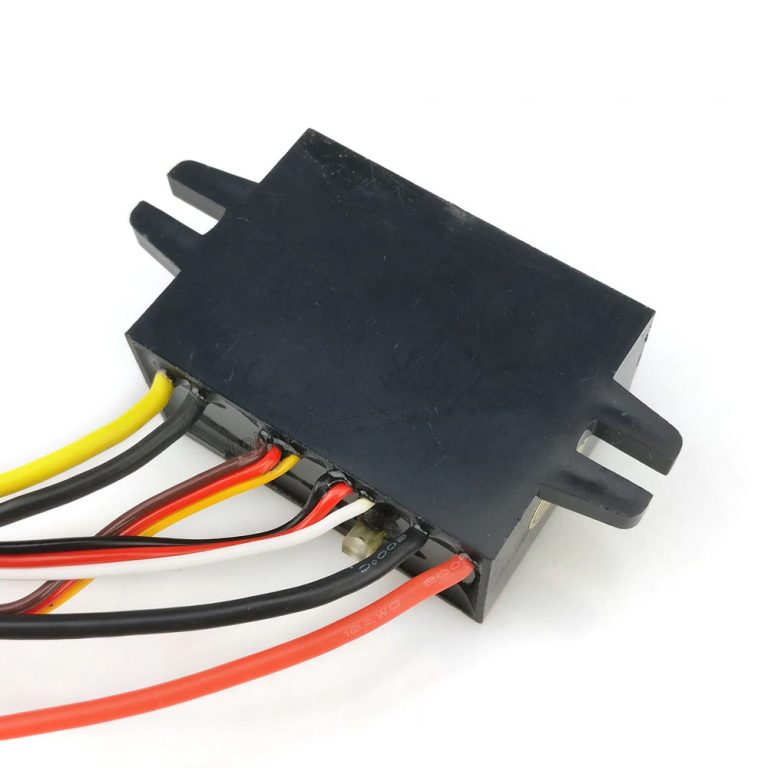

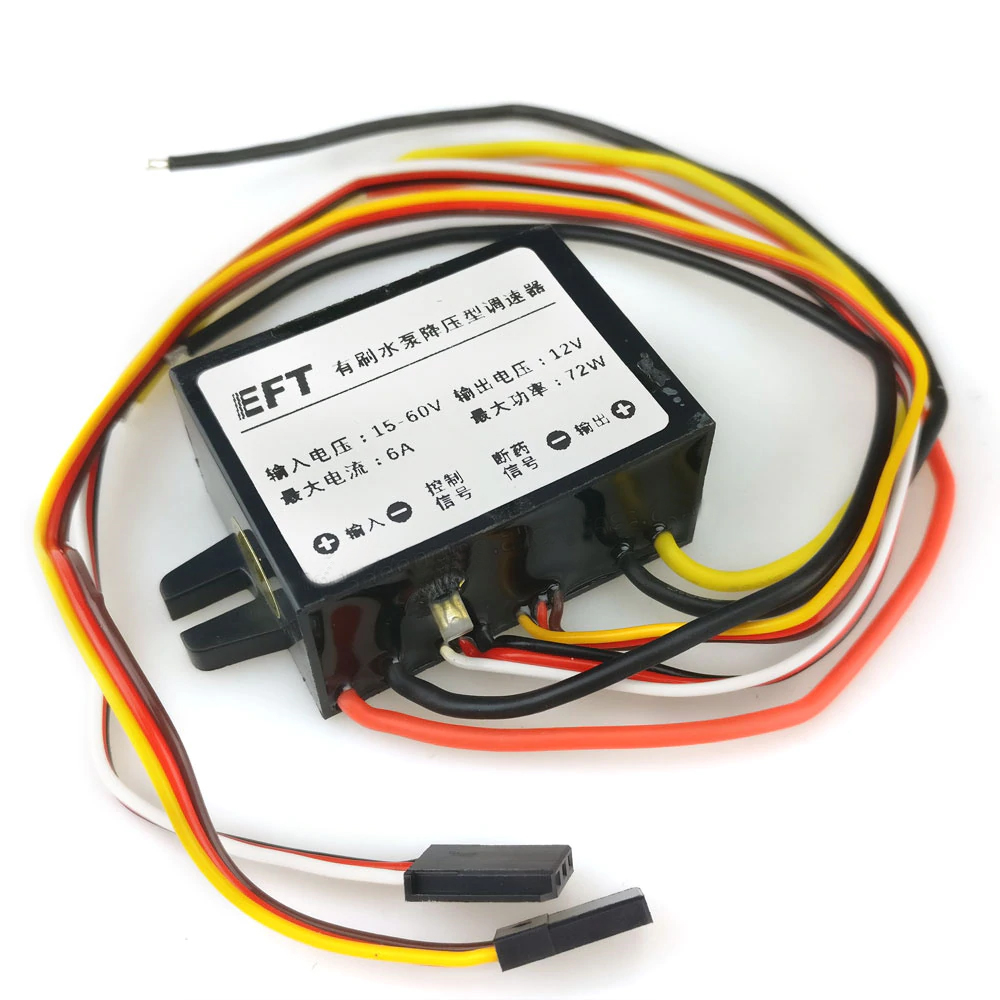

Voltage regulator is for Agriculture Drone special brush water pump step-down governor, integrated buck module and governor as one, streamlined wiring, support 15-60V wide pressure input, external 12V brush pump, built-in drug detection function, module ring Oxygen resin potting, dustproof and waterproof.

Voltage regulator Product specifications:

Size: 47mm * 34mm * 22mm (without fixed ears)

Weight: 72g

Mounting hole distance: 54-60mm

Supply voltage: 15-60V

Output voltage: 12V

Maximum current: 6A

Maximum power: 72W

Broken medicine line number: there is water – high level, no water – low level

The method of using the medicine detection function: the medicine detection function is currently limited to the use of the 25W water pump, and the 3pin line of the medicine breaking signal is connected to the detection interface of the flight control level meter. The medicine breaking signal is output in a high and low level mode, and the water is high. Flat, no water is low, need to discharge the air in the pump before takeoff, so as not to misjudge after takeoff.

voltage regulator is a system designed to automatically maintain a constant voltage level. A voltage regulator may use a simple feed-forward design or may include negative feedback. It may use an microelectronic mechanism, or electronic components.
