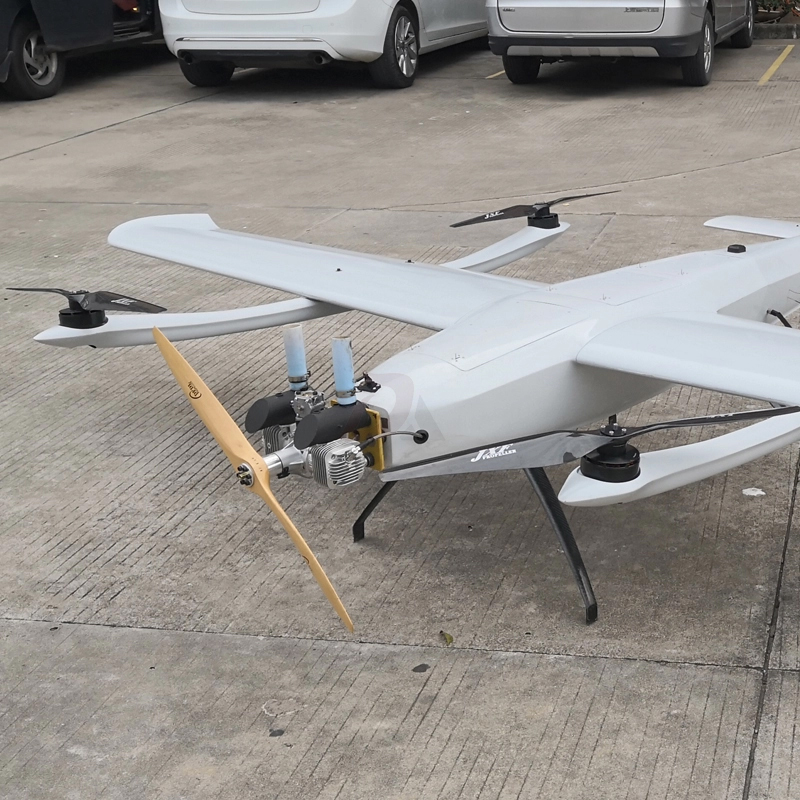

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 2

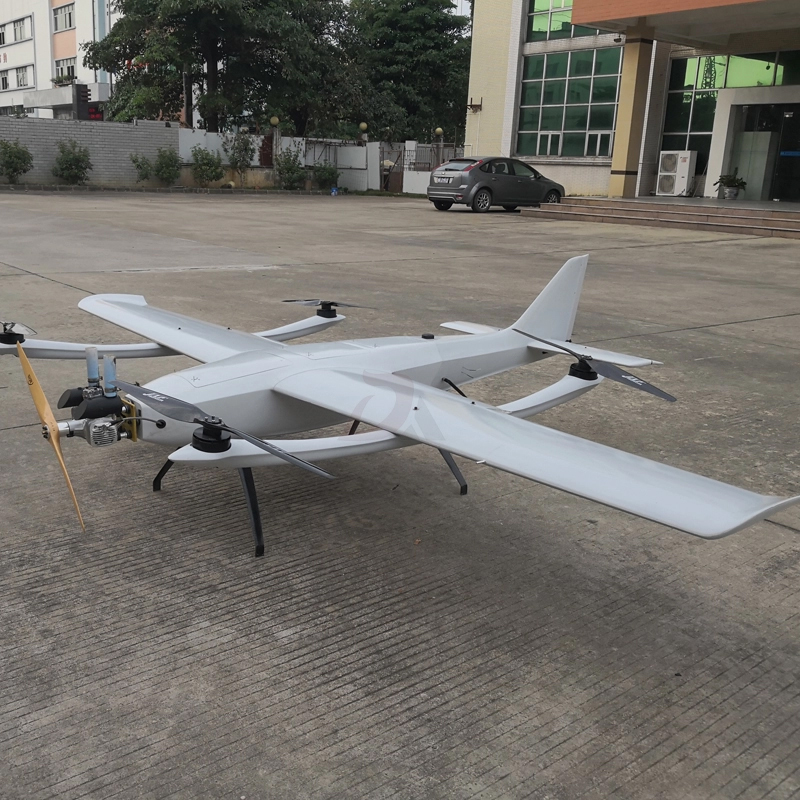

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 3

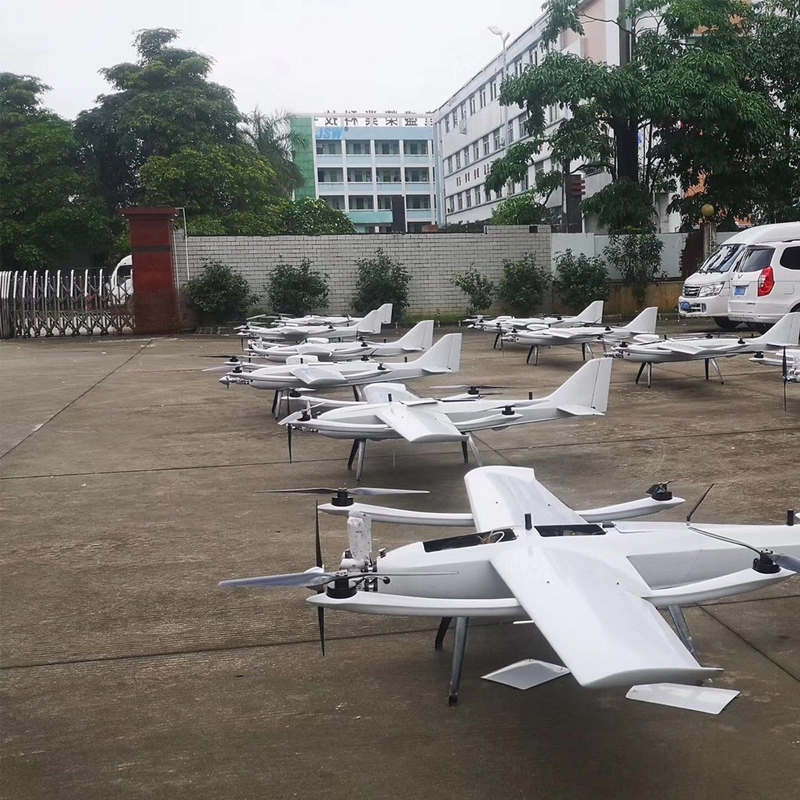

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 4

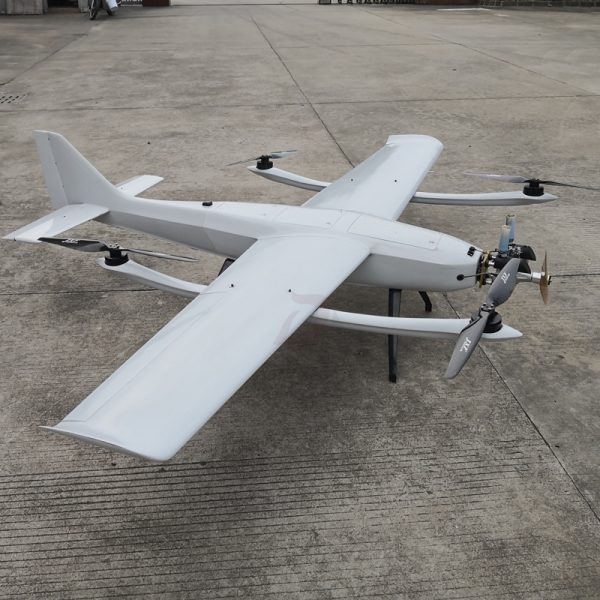

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 5

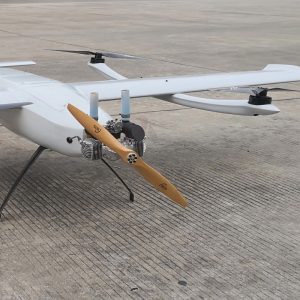

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 6

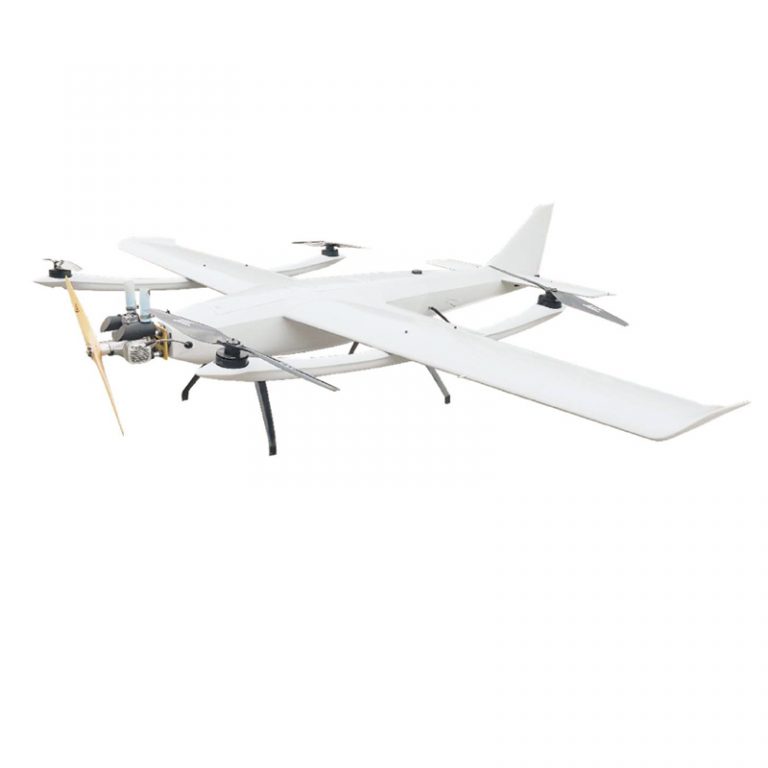

Long Endurance Fuel Power Fixed Wing gasoline VTOL UAV Surveillance Survey Mapping Gasoline Engine KIT Frame - Imagen 7

Larga resistencia de combustible de energía de gasolina de ala fija VTOL UAV Vigilancia Encuesta Cartografía Motor de gasolina KIT Marco

Name: Larga resistencia de combustible de energía de gasolina de ala fija VTOL UAV Vigilancia Encuesta Cartografía Motor de gasolina KIT Marco
SKU: 5487FB8/10-97
Availability: InStock

Rango de precios: desde €302.00 hasta €4,800.00

Opciones

Limpiar

SKU: 5487FB8/10-97 Categoría: VTOL fuselaje Etiquetas: VTOL fuselaje, VTOL & ALA FIJA

Larga resistencia de combustible de energía de gasolina de ala fija VTOL UAV Vigilancia Encuesta Cartografía Motor de gasolina KIT Marco

FLY-330 gasoline VTOL is a professional and high-performing VTOL HYBRID UAV offering outstanding efficiency and elegance. The system has been designed to flexibly, quickly and safely integrate different sensors in order to meet the needs of a variety of fields of application. The high quality standards combined with the extremely simple operating concept and high aerodynamic quality makes the system unique in its comparative class. The FLY-330 can autonomously and safely take off and land vertically with highly sensitive sensors on a minimum area. With no need for any take-off or landing runways.

Model features
Vertical take-off and landing	Low requirements for landing and landing points, high operating efficiency.
Simple structure	Easy to operate in a short time.
Full autonomous flight	One-button take-off, safe and efficient.
High security	Double protection for emergency landing and open umbrella.
Flight duration	5-8 Hours with 8L gasoline loading
Aircraft Parameters
Velocidad de crucero	100-120Km/H
Aircraft length	2100MM
Wing width	3300MM
Peso máximo al despegue	40KG
Altitud de vuelo	Maximum 4500m
Payload	Maximum 10KG
Resistencia al viento	Grade 6
Power System	60cc-100cc Gasoline Engine-Electric
Body material	Full composite material

Autopilot performance:
full coverage of the model;
Satellite navigation[real-time GPS/GLONASS/Galileo/B Multi-system signal reception];
attitude accuracy 0.5°, heading accuracy 1°;
centimeter-level positioning;
High precision and high dynamic motion measurement.

NOTE： THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE, IF YOU NEED ALUMINUM BOX, NEED TO ADD COST INDEPENDENT !
