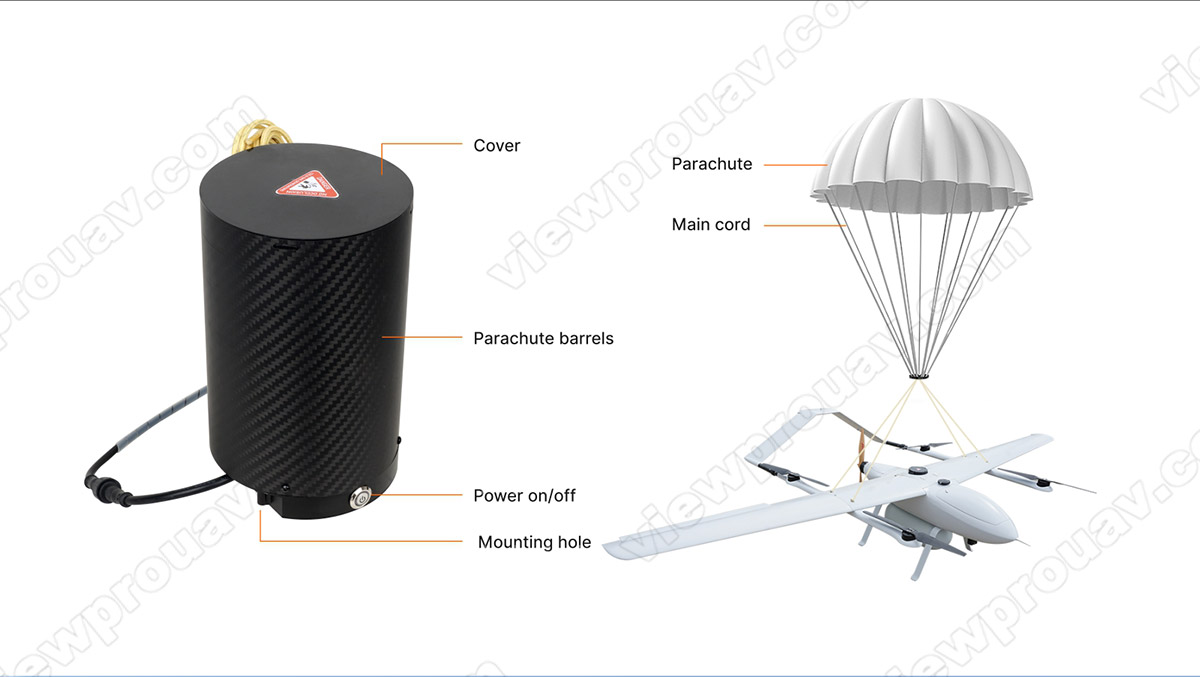

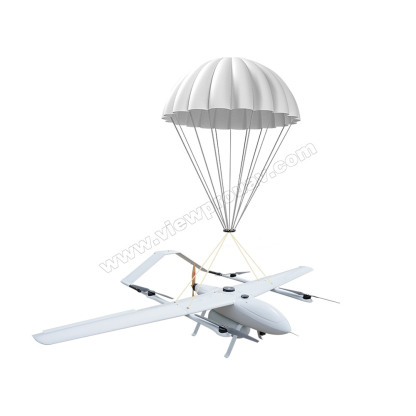

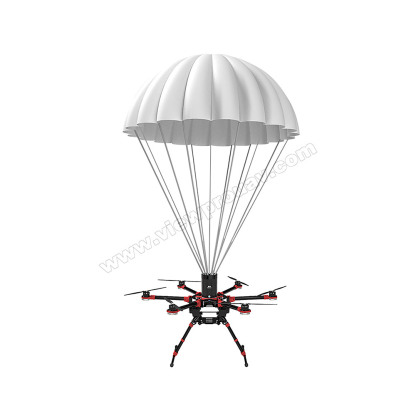

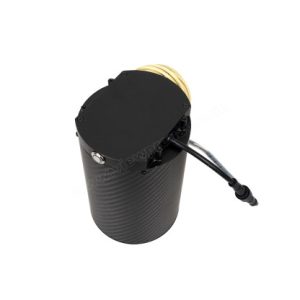

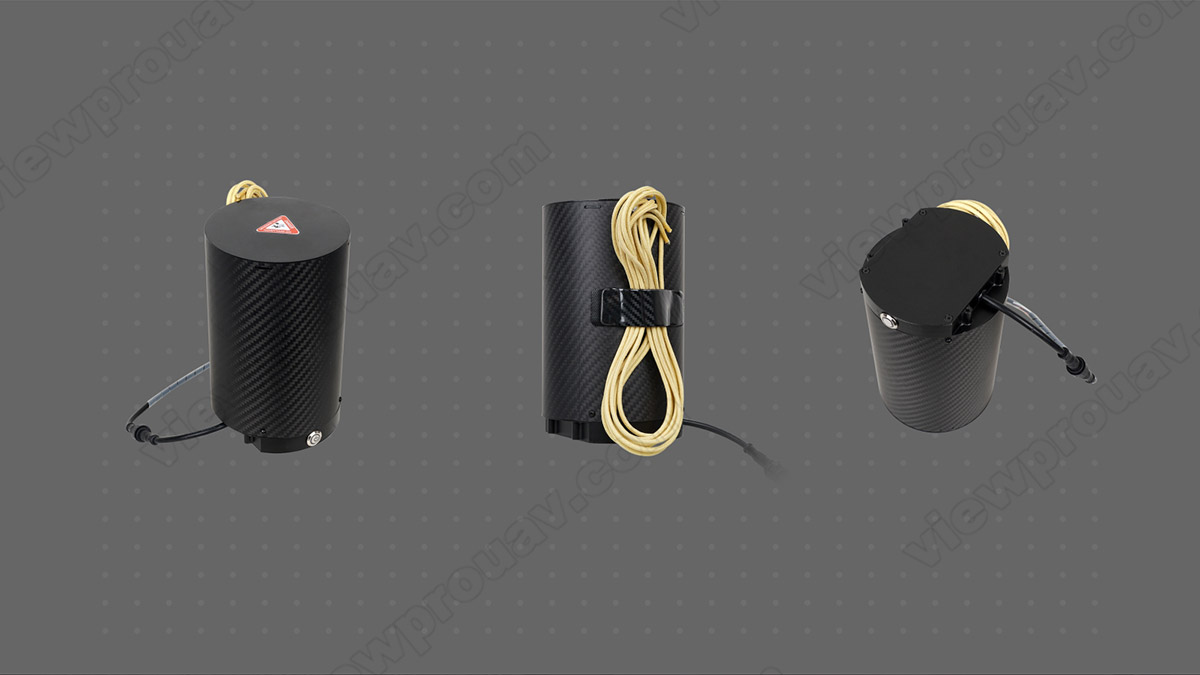

Viewpro DP-30/DP-40 is professional grade safety parachute recovery system for multi-copter, VTOL,Helicopters during flight when any unexpected emergency situation occurs. The parachute system will prevent the drone from crashing and ensure UAV landing safely to avoid loss.

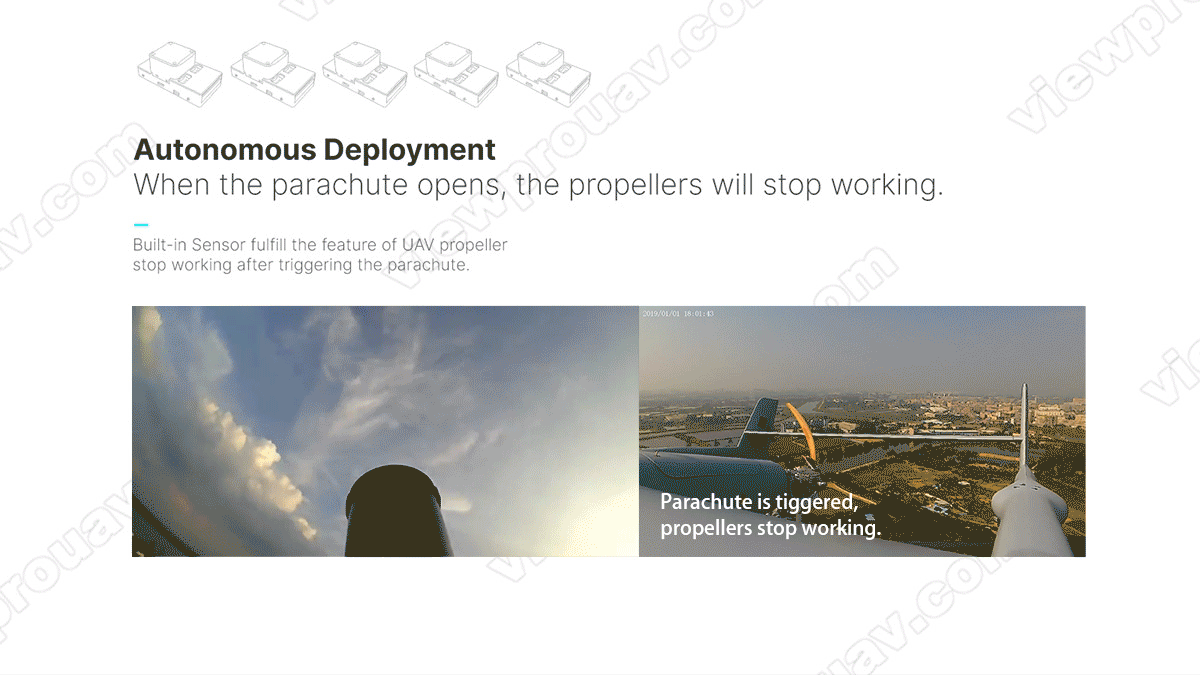

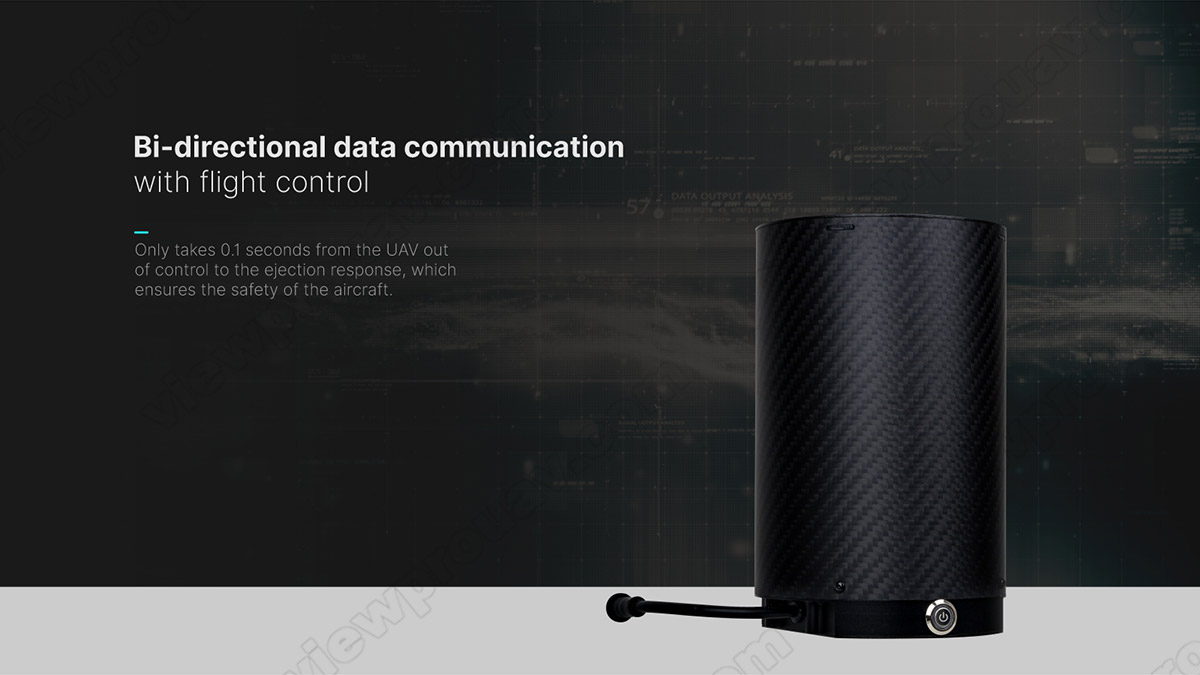

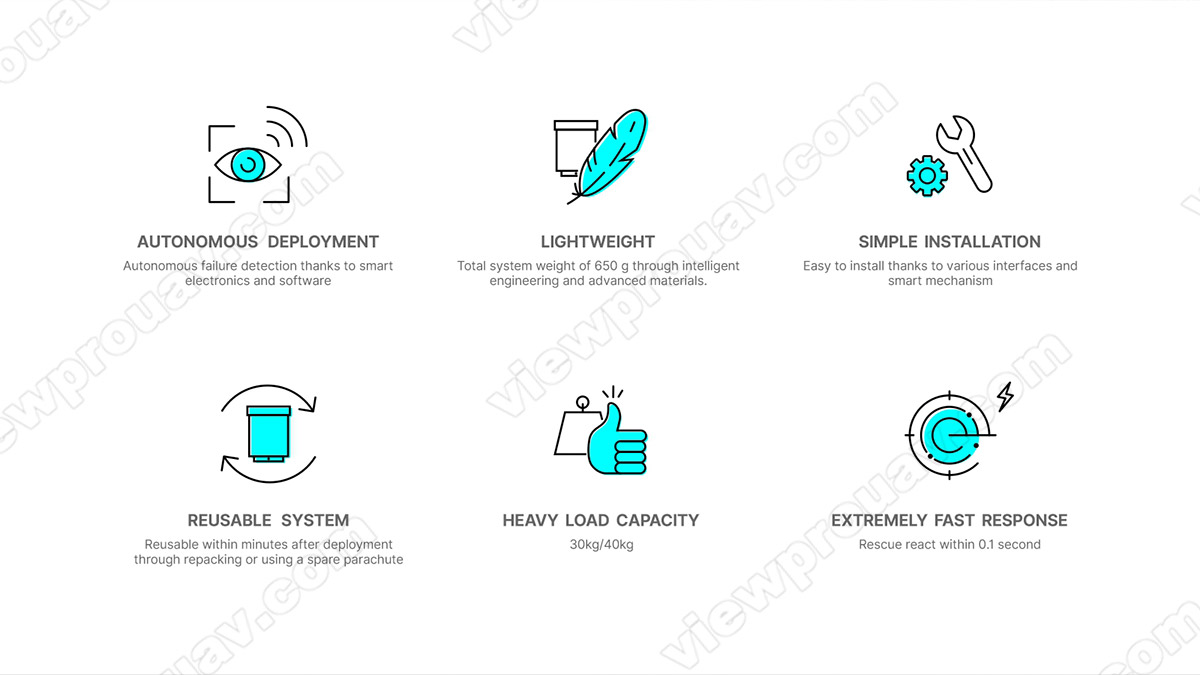

DP-30/DP-40 is light-weight, smart and autonomous which can detect the drone flight status 100times per second, that means the parachute communicate with flight control in real time and stand-by all the time.

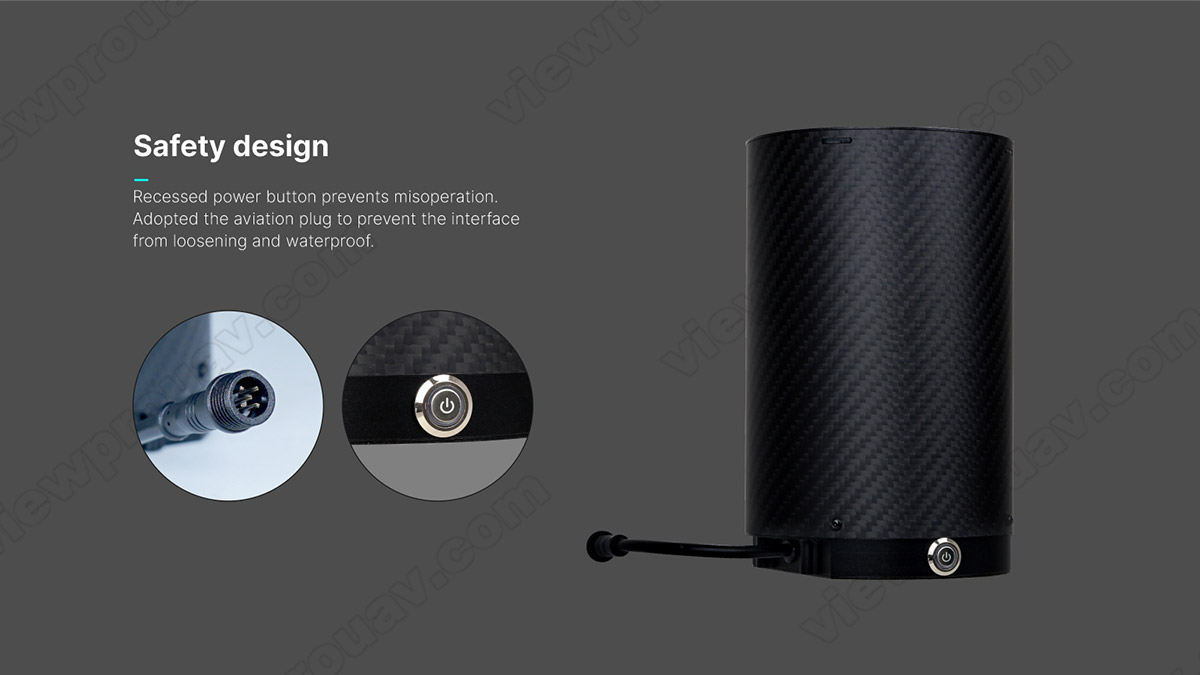

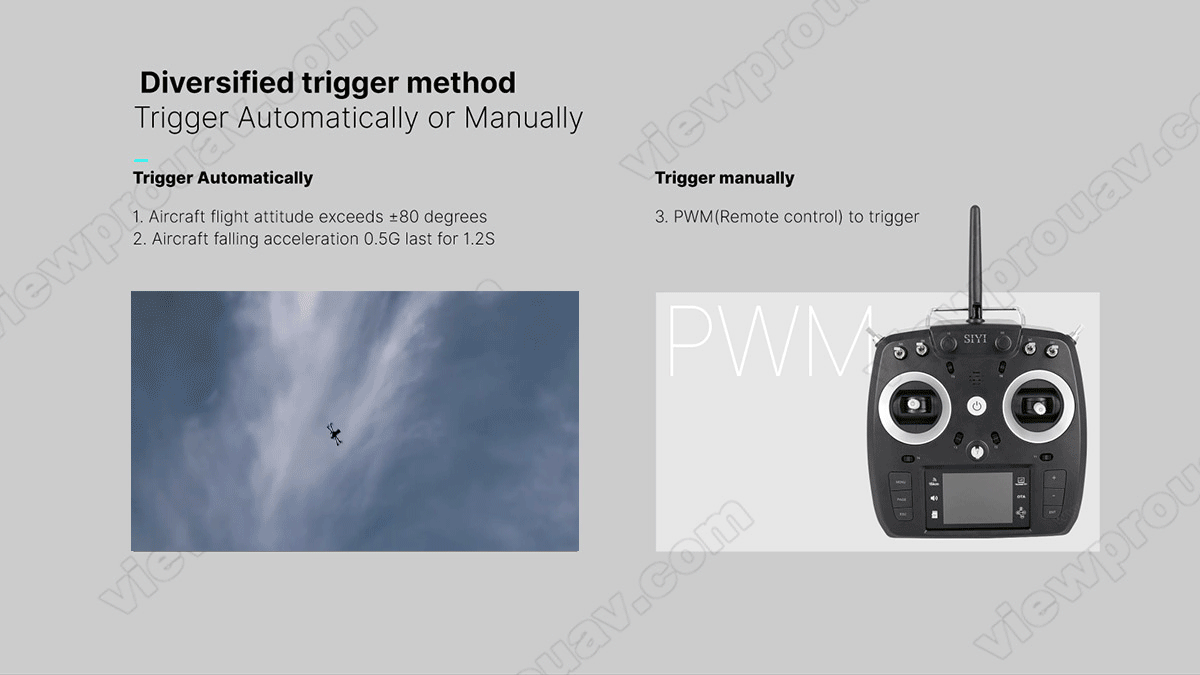

The trigger way supports automatically and manually via remote control. It is with built-in 380mAH battery and also support 5v external power supply.

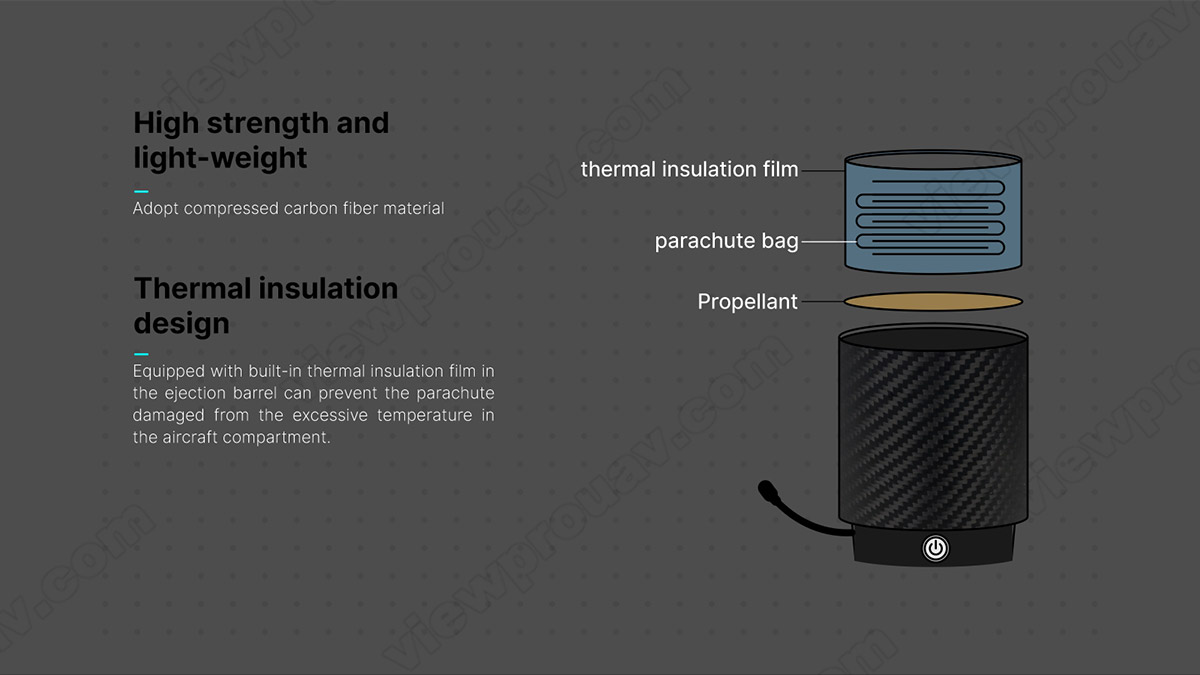

With powerful propellant, the parachute can be open within 0.1s after triggering, and the parachute and ejection barrel can be reused.
.gif)
.gif)
.jpeg)
| Model | DP–30 | DP-40 |

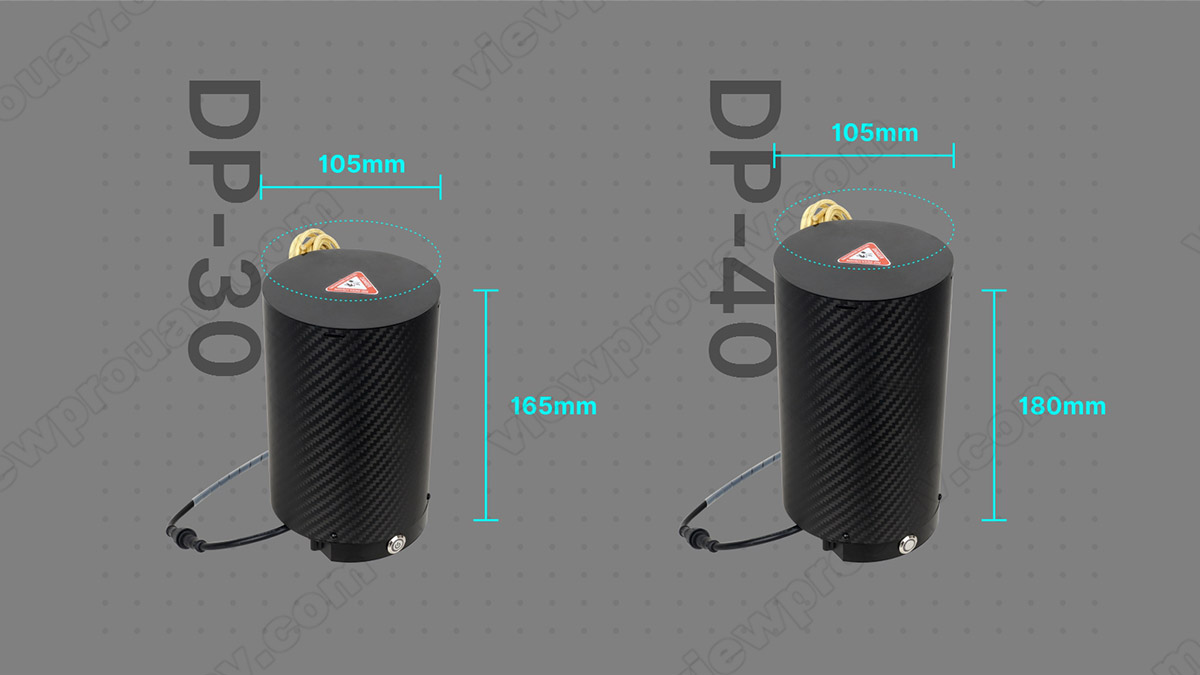

| Size | Diameter 105mm/ High 165mm | Diameter 105mm/ High 180mm |

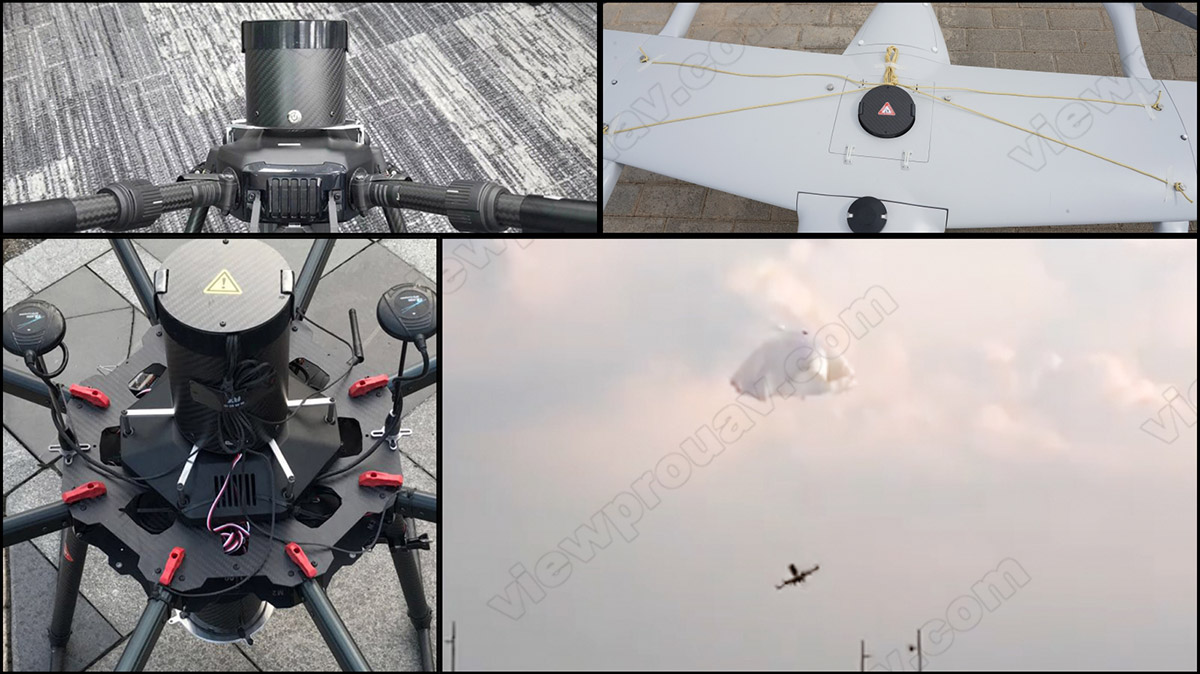

| Installation position | 116mm*116mm （M4*4） | 116mm*116mm （M4*4） |
| Port | 5PIN Waterproof interface | 5PIN Waterproof interface |
| Load | <30kg | <40kg |
| Diameter | 3500mm | 4000mm |
| Service voltage | 5v | 5v |
| Cell capacity | 380mAh | 380mAh |
| Attitude perception range | ±90° | ±90° |
| Trigger Angle | ± 80° | ± 80° |
| Falling trigger | 0.5g/1.6s | 0.5g/1.6s |
| Working hours | 8h | 8h |
| Trigger method | Attitude/Fall/PWM/SDI | Attitude/Fall/PWM/SDI |
| Data communication | Bi-directional | Bi-directional |
| PWM pulse width | 1000-2000us（50Hz，1750-2000us Trigger open） | 1000-2000us（50Hz，1750-2000us Trigger open） |
| Power off | 10s | 10s |
| Power on and self-working | yes | yes |
| Ejection way | PT30 propellant | PT40 propellant |
| Weight | 650g | 800g |
| Suggested parachute shield refolding frequency | 6 months / 3 months in humid environment（regional environment） | 6 months / 3 months in humid environment（regional environment） |
| Working Temperature | -10—45℃ | -10—45℃ |
| Weight | 1 kg |
|---|
