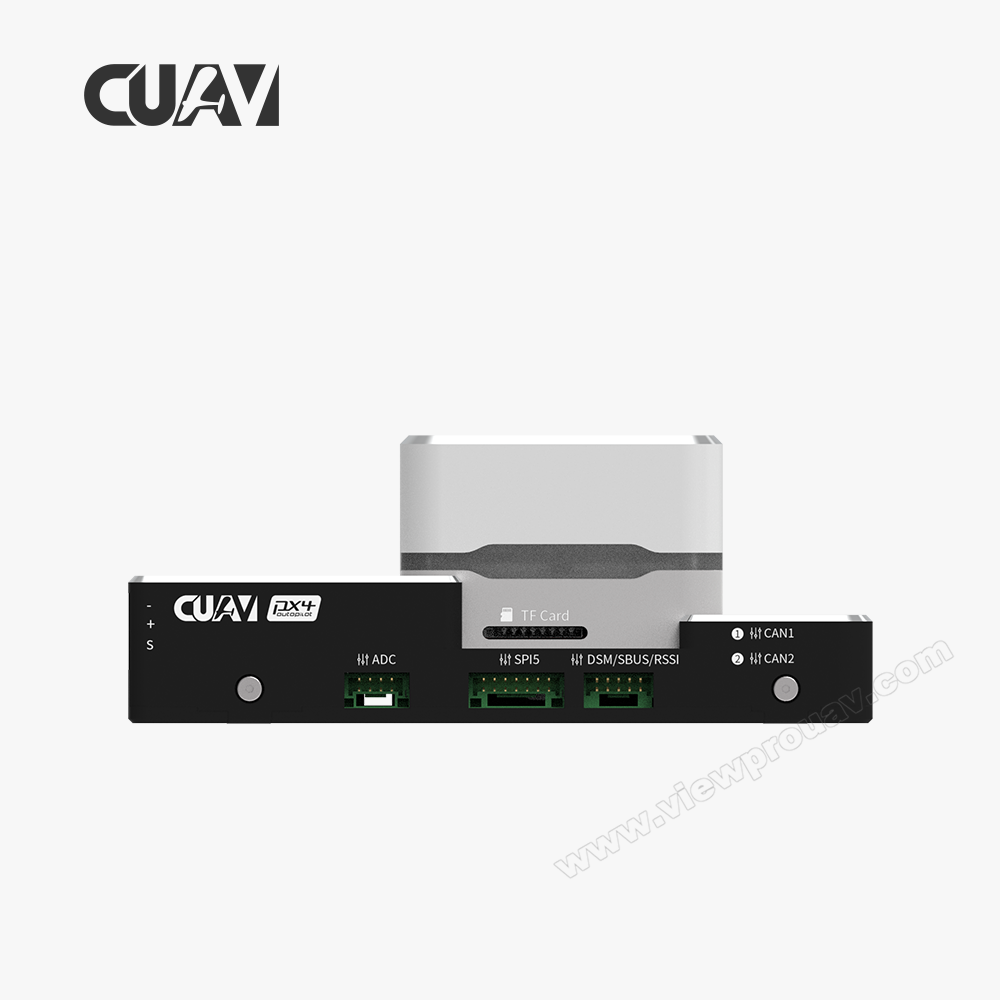

CUAV V5+ flight controller Open source autopilot pixhawk APM

€715.00

135 в наличии

Hardware parameter
Main processor	STM32F765 (32 Bit Arm® Cortex®-M7, 216MHz, 2MB flash, 512KB RAM)
Coprocessor	STM32F100 (32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM)
sensor
Accelerometer	ICM-20602/ICM-20689/BMI055
Gyro	ICM-20602/ICM-20689/BMI055
Electronic compass	IST8310
Barometer	MS5611
External interface
UART serial port	5
I2C	4
SPI	1
CAN	2
ADC	2
PWM output	8-14 PWM outputs (6 from IO, 8 from FMU)
DSM/SBUS/RSSI	1
PPM IN	1
CAN buses	2
Analog inputs for voltage/current	2
GPS&Safety	1
Debug/F7 SWD interface	1
USB interface	1(Type-C)
TF slot	1
Related interface protocol
PPM IN	PPM
DSM/SBUS	DSM/SBUS;RSSI:PWM/3.3v voltage
GPS	NMEA/UBLOX
Support model
PX4 and Ardupilot firmware	Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc.
Working environment and physical parameters
Operating Voltage	4.5 ~ 5.5 V
USB Input voltage	5V +- 0.25v
Servo input voltage	0-36v
Operating temperature	-20 ~ 85°c
size&weight
Size	85.54233mm
Weight	91g
